- Condition:
- New
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-1200BP
- Machine Type:
- Press Brake
- Raw Material:
- Flat Sheet / Plate
- Material / Metal Processed:
- Plastic
- Power:
- Electric and Pneumatic
- Automation:
- Manual
- Extra Services:
- Heat Treating
- Certification:
- CE
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- 1200mm Acrylic Sheet Hot Bending Machine
- Model:
- BT-1200BP
- Working Size:
- 0-1200mm
- Applied Material:
- Acrylic, PMMA, PVC, PETG, Plexiglass, Organic Glass etc
- Power Supply:
- AC220V+/-10%
- Cooling Mode:
- Cooled by water
- Gross Power:
- 1.5kW
- Current:
- 6.8A
- Machine Weight:
- 50g
- Dimension:
- 165x40x33cm
1200mm Acrylic Sheet Hot Bending Machine

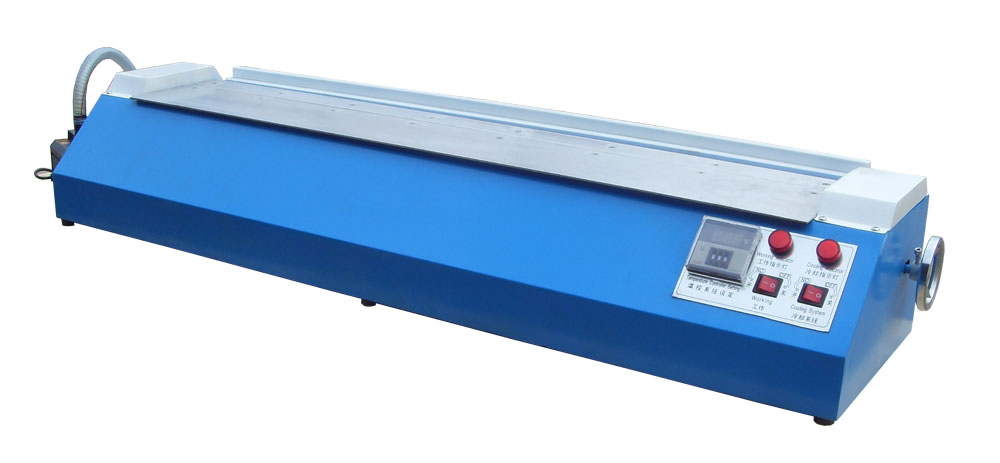

Machine front view 1.

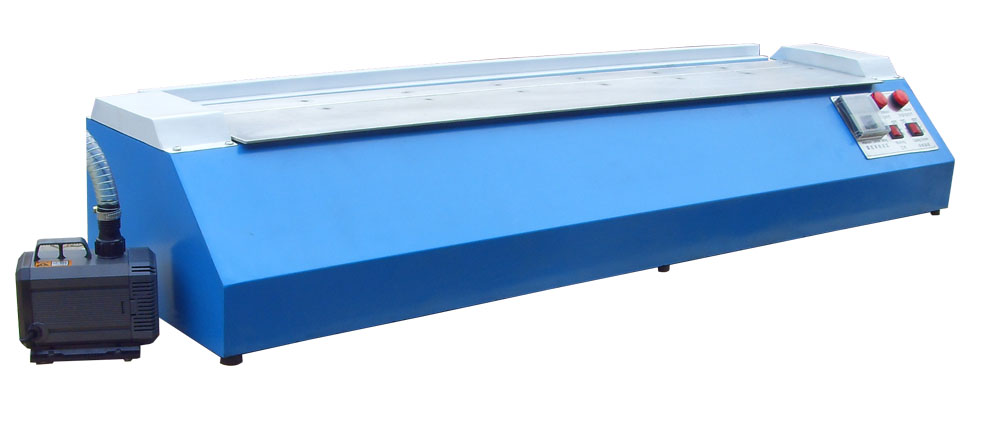

Machine bacl view.
Machine side view.
Control panel.
Hand wheel to adjust heating gap according to acrylic thickness.
| Model No. | BT-1200BP |
| Bending Length | 0-1200mm |
| Bending Width | Unlimited |
| Bending Thickness | 0-10mm normally |
| Angle Range | 0-360 degree |
| Heating Mode | Non-contact infrared heating |
| Bending Mode | Manual |
| Power Supply | AC220V+/-10% |
| Cooling Mode | By water |
| Gross Power | 1.5kW |
| Package Dimension (LxWxH) | 165x40x33cm |
| Gross Weight | 50kg |
1. The machine is used to heat and bend V-shape angle in the range of 0-180°.
2. Applicable materials are various plastic plates, including but not limited to acrylic (PMMA, plexiglass, organic glass), PS, PC, PP, ABS PVC, PETG etc.
3. Due to its regular power supply requirement (AC220V+/-10%), novel and portable design, it is easy to be handled and transported, specially proper to use in shop counter, workroom as well as job site.
1. We have full set of User’s Manual in English and demo video CD to teach you how to install & operate & maintain the machine.
2. 2 years super long guarantee dating from you receiving the machine. During guarantee period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.
Lead Time
7 days dating from payment is recedived.
Packaging & Shipping
1. In order to protect the machine from any damage during long-distance transportation, it is packed in free-fumigation wooden case.
Dimension (L*W*H): 87*44*27cm,0.10CBM
Weight: 32kg.
2. Since the machine size is small, we suggest shipping it by air, to airport, or to your door directly by international express courier.
Exact shipping cost will be checked according to your exact delivery address.
