2017 New Style Metal Plasma Cnc Cutting Machine - New Arrival Double Lines Automatic Acrylic Bending Machine 2400mm – YUANNUO MACHINERY

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-2400BD

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Acrylic Bending Machine

Model No.:

BT-2400BD

Bending width:

0-2400mm

Bending thickness:

0-8mm. If it is thicker than 8mm, needs milling V-groove in advance

Angle range formed by the front bender:

45°-180° adjustable.

Angle range formed by the rear bender:

0°-180° adjustable.

Max. distance between 2 angles:

530mm.

Min. distance between 2 angles:

120mm

Heater's power:

3kw/pc*2pcs

Current:

28A

Processing Type:

Plastic Thermoforming Machine

Voltage:

AC220V+/-10%

Product Type:

Plastic Sheet

Certification:

CE, ISO9001:2008

Power(W):

6KW

Condition:

New

Dimension(L*W*H):

3120x1000x1130mm

Warranty:

24months (2 years)

Weight:

320

Packaging & Delivery

Packaging Details

Delivery Time

5 days upon receiving deposit

Acrylic Bending Machine

Name:

New Arrival Double Lines Automatic Acrylic Plastic Sheet Hot Bending Machine

Feature:

The machine has 2 heating lines so it can bend 2 angles meantime, therefore double working efficiency. The below video (link to www.youku.com) will show you about it:

https://v.youku.com/v_show/id_XNTM1NjEyNDQ4.html

Application:
It can bend acrylic (organic, PMMA, plexiglass), plastic, PC, PVC, PETG, PP, ABS sheet to V-shape angle.

The rear angle can be bent from 0 degree to 180 degree automatically.

The front angle can be bent from 45 degree to 180 degree automatically. It is a necessary equipment for AD sign products making industry. Proper for sample making and mass production.

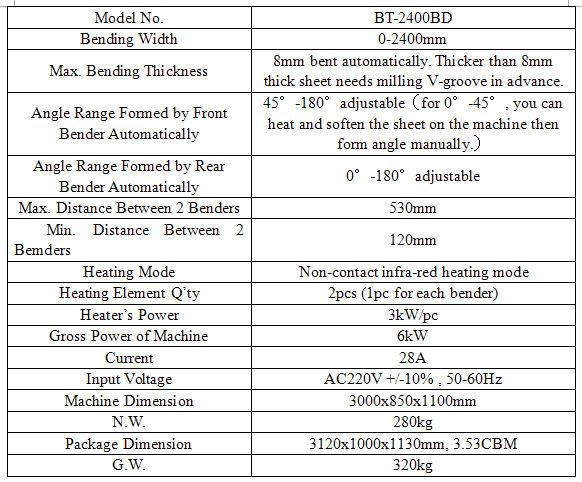

Specification:

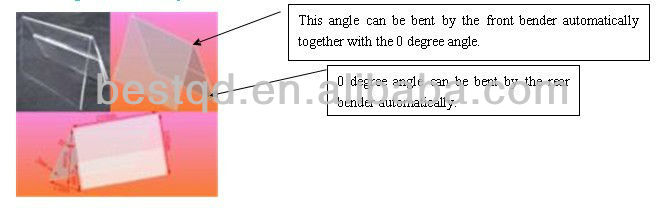

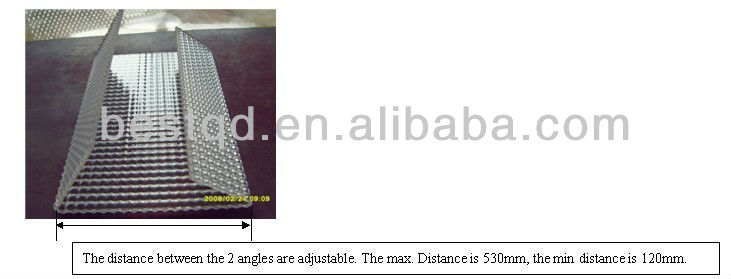

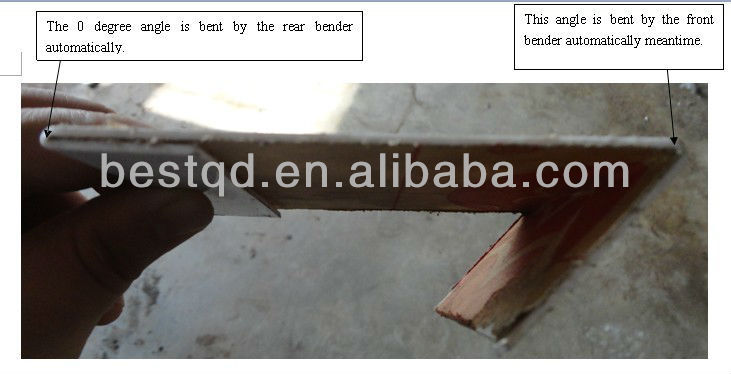

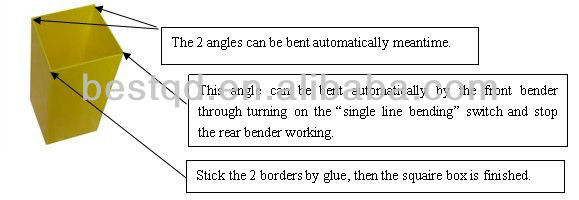

Samples illustration:

Working Video Link to www.youku.com:

https://v.youku.com/v_show/id_XNTM1NjEyNDQ4.html

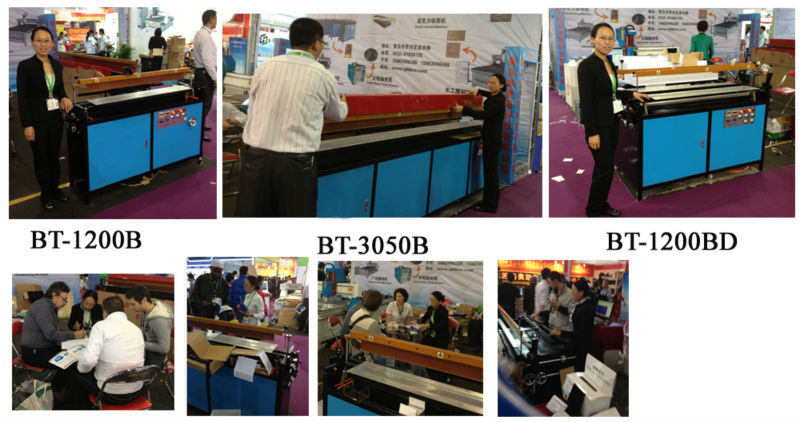

On show picture:

Warranty and after sale service:

24 months dating from buyer receiving the machine.
1) During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.
2) When warranty period is expired, if some part is broken or damaged, you can buy new from our company.

3) We provide buyer with free cost technical supporting during whole lifespan of machines.

Production Time:

 5 days upon receiving 50% deposit.

Payment Terms:

1) In EXW, FOB, DDU and DDP conterms, T/T 50% deposit in advance, the balance payment should be settled before shipment.
2) In C&F and CIF conterms, T/T 50% deposit in advance, the balance payment should be settled within 1 week after buyer receiving the copy of B/L via e-mail or fax.
How to contact with us:
