- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-600B/1200B/1800B/2400B/3050B
- Certification:
- CE, ISO14001:2004
- Model No.:
- BT-600B/1200B/1800B/2400B/3050B
- Bending Area (L*W):
- L:600mm-3050mm, W:limitless
- Maximum Bending Thickness:
- 15mm
- Heater Type:
- Infrared Quartz Heating Tube
- Number of Heating Tube:
- 3pcs
- Gross Power:
- 3kw/tube
- Power Supplied:
- AC220V±10%/50Hz
- Dimension (L*W*H):
- Length:600mm/1200mm/1680mm/2300mm/3000mm/3650mm, W:550mm. H:1150mm
- Weight:
- 55kg/150kg/200kg/260kg/300kg
- Certificate:
- CE, ISO14001:2004
- Processing Type:
- Plastic Thermoforming Machine
- Product Type:
- Plastic Sheet
- Condition:
- New
Packaging & Delivery
- Packaging Details
- Free fumigation wooden case
- Delivery Time
- 10 days after receiving deposit

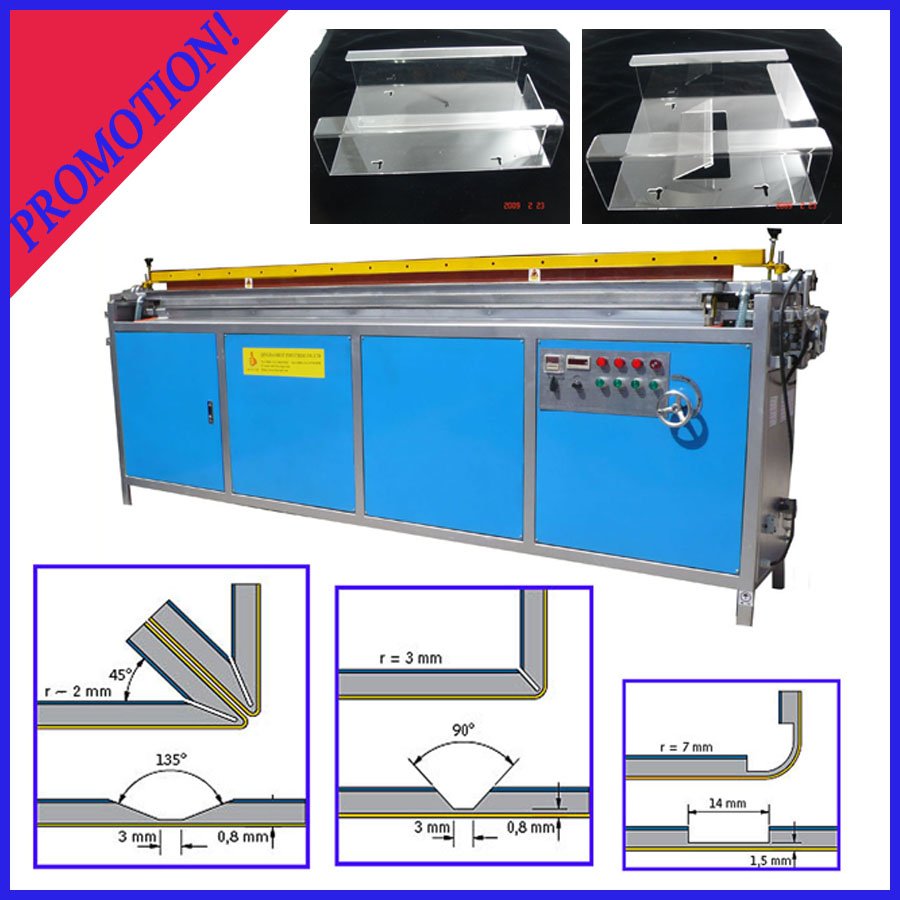

Acrylic Sheet and PETG Bending Machine:
1. The bending machine helps you to easily and quickly produce different V-shaped profiles.
2. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles .
3. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine.
4. It can be used to bend components of ACRYLIC, PVC, PMMA, PC, ORGANIC GLASS, RESIN etc.
5. We pay attention to details parts of the machines, therefore our products quality is steady and perfect.
Feature:
1. Digital operation, easy and convenient.
2. Both automatic and manual working status.
3. According to sheet thickness and material characteristic to set heating time, it will bend automatically when it reaches time set in advance.
4. Bending angle is adjustable from 1-1790.
5. Adopt special quartz heating tubes, rapid heating speed and long working life.
6. Working voltage is adjustable so to meet different material characteristic and different thickness sheet, avoid buring or destorying material.
7. Worktable and workpiece are cooled by water. When water temperature is over, it will alarm automatically.
8. With function of electrical leakage protection to make sure safe operation.
Application:
Its applied to bend acrylic sheet, organic sheet, resin sheet, PVC and hard plastic etc. It is a necessary machine for advertisement industry, especially useful for mass production.
Specification Sheet:
| Item No. | BT-600B | BT-1200B | BT-1800B | BT-2400B | BT-3050B |
| Max. Feeding Width | 600mm | 1200mm | 1800mm | 2400mm | 3050mm |
| Total Power | 2KW | 2.5KW | 3KW | 3.5KW | 4KW |
| Machine Size(L*W*H mm) |
1080x550x1100 |
1680x550x1100 |
2300x550x1100 | 2950x550x1100 | 3550x600x1100 |
| N.W.(kg) | 55 | 180 | 200 | 230 | 260 |
| G.W.(kg) | 80 | 200 | 230 | 260 | 300 |

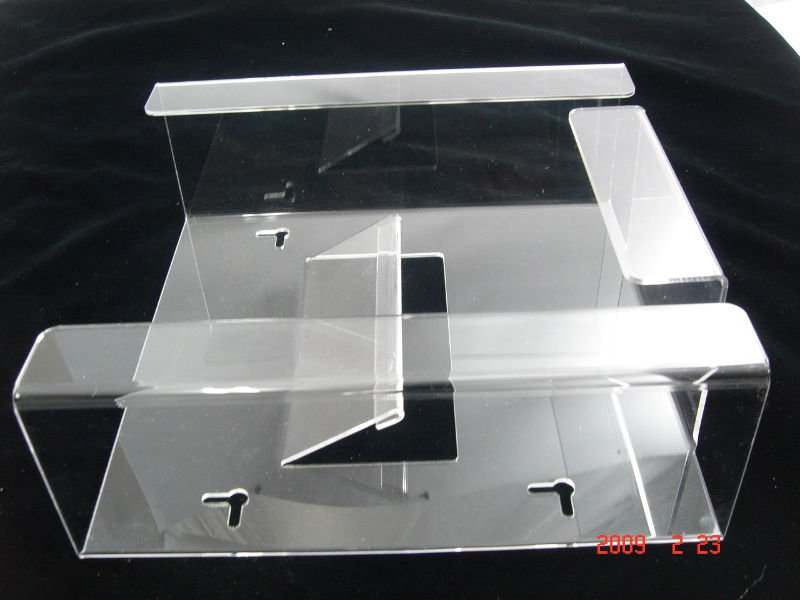

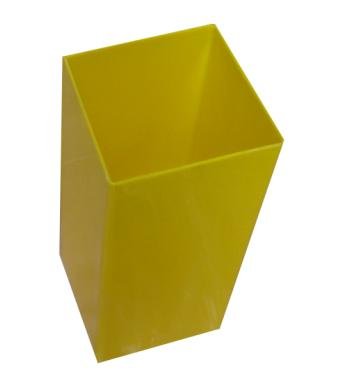

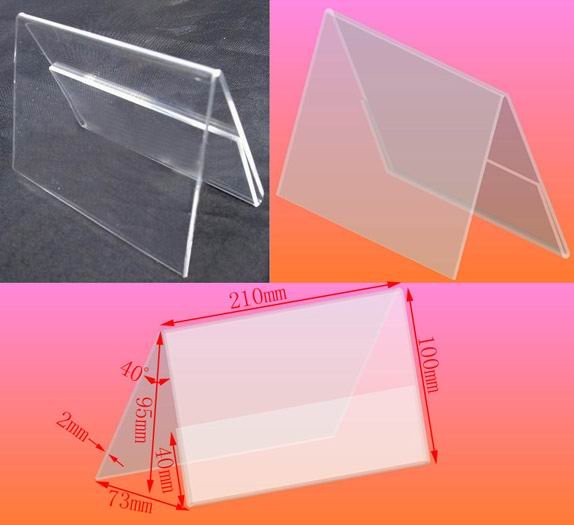

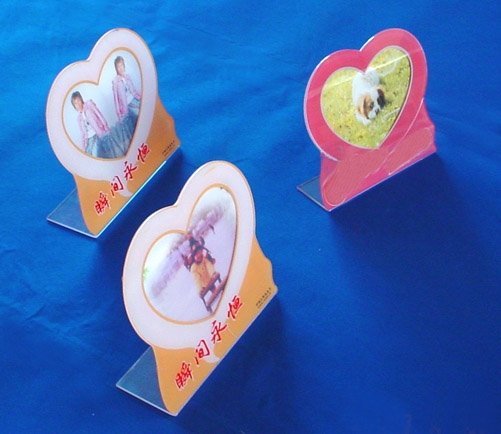

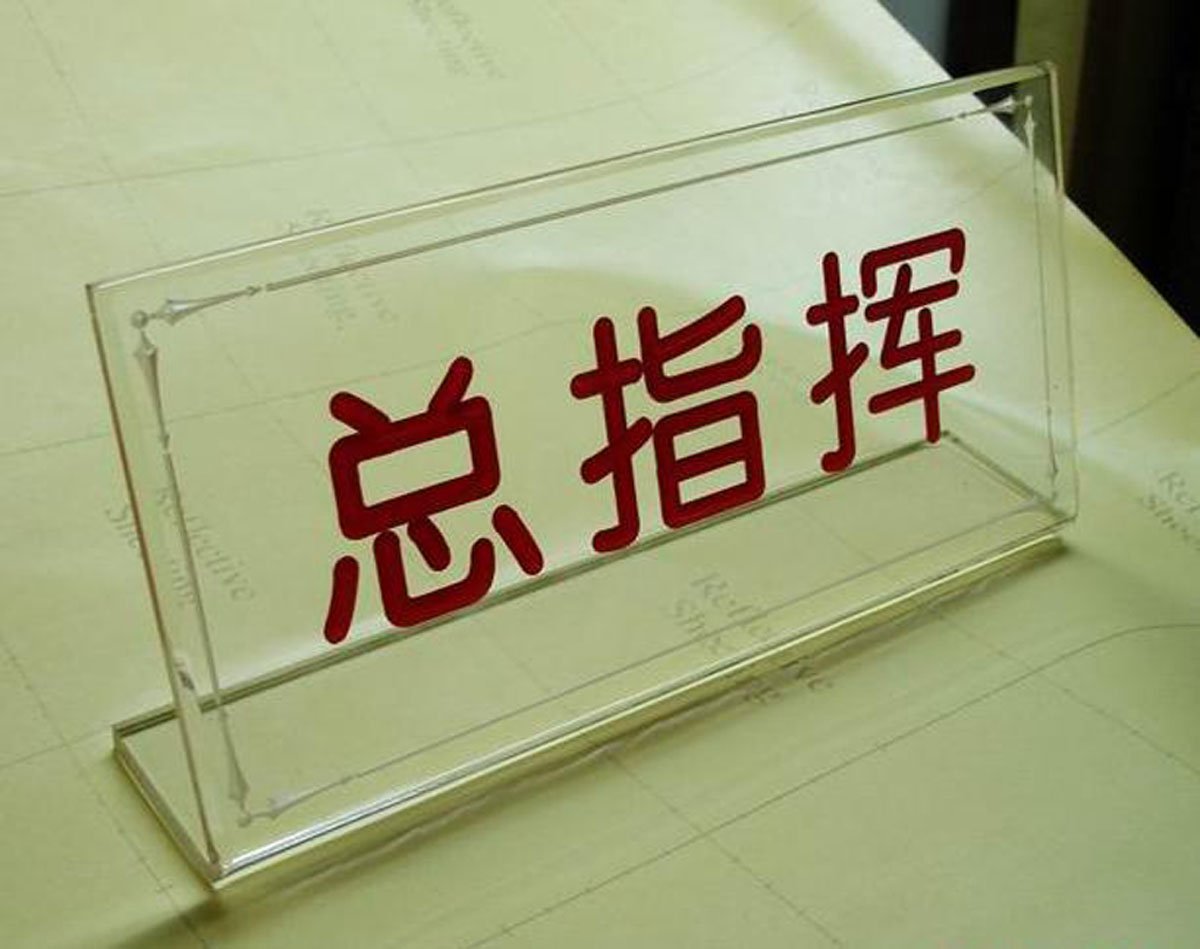

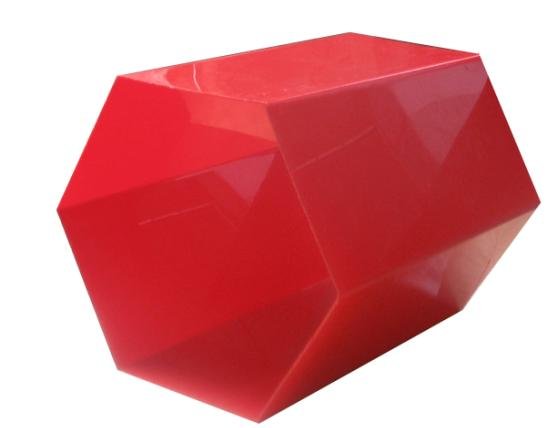

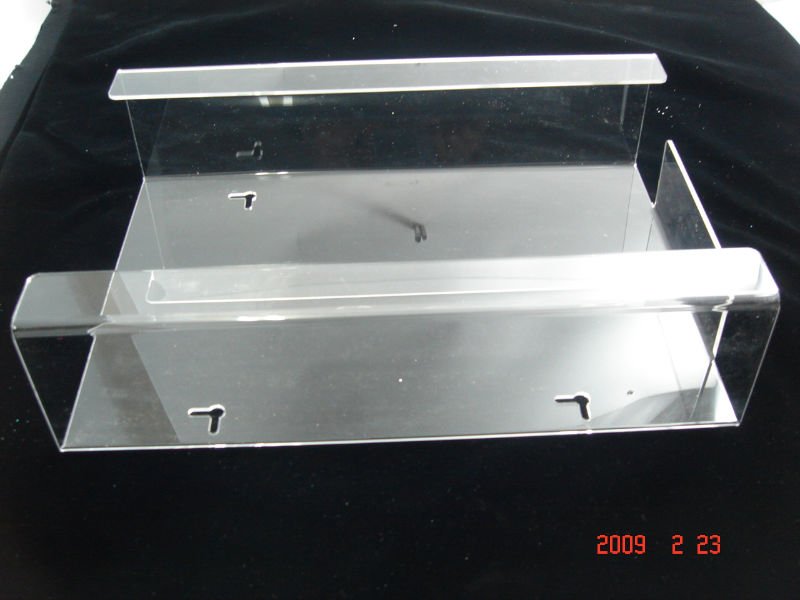

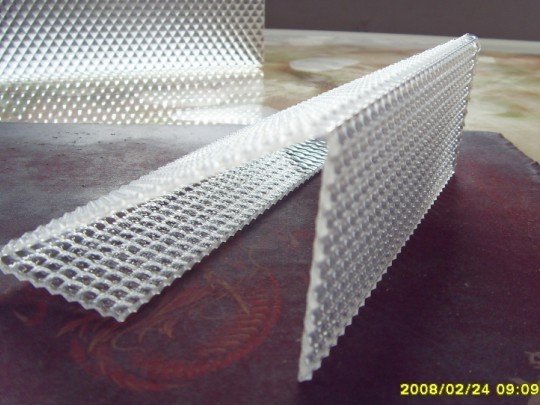

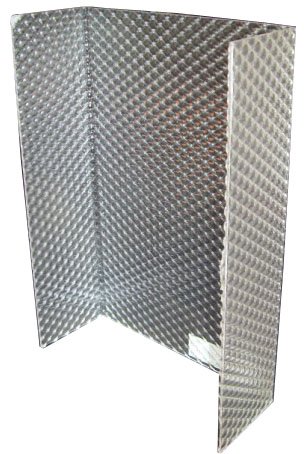

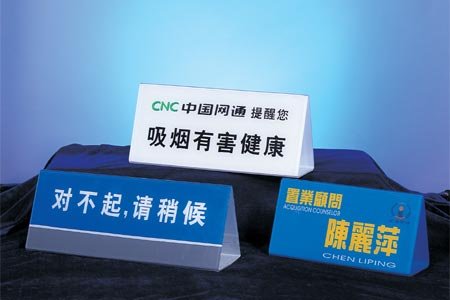

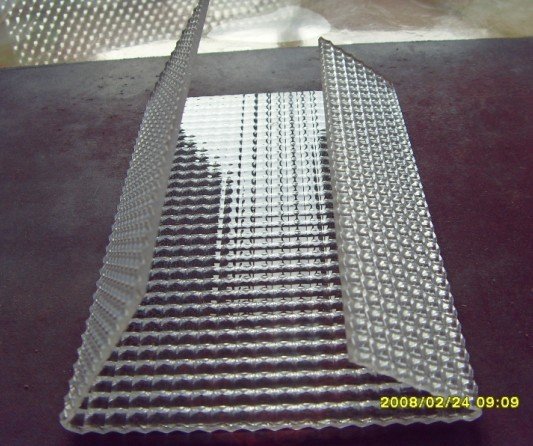

Samples display:
Remark:
1. We have working video to teach you how to use the machine.
2. If you are interested in this product and need to know more specification, please feel free to contact with us. Thank you for your kind attention! We also wish to get your comments to improve the machine. Other sizes of the machine can be ordered and made according to your special requirements.
