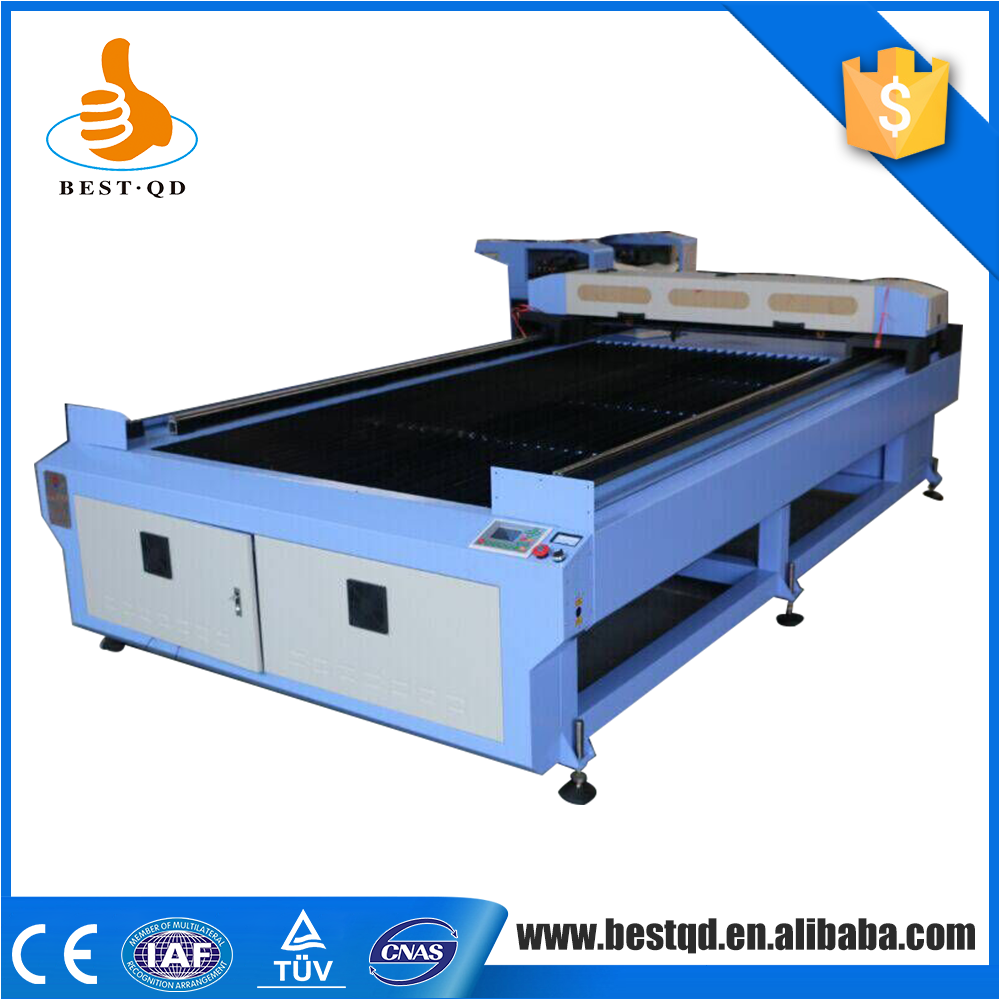

Best Selling CNC Products co2 jean cloth laser cutting machine

Short Description:

Min.Order Quantity: 1 Set

Port: Qingdao port or any other Chinese ports

Payment Terms: L/C, T/T, Alibaba Trade Assurance, PayPal, Western Union, MoneyGram

Send email to us Download as PDF

Product Detail

Product Tags

Application:: Laser Engraving

Condition:: New

Laser Type:: CO2, CO2 sealed glass laser, RECI brand

Engraving Area:: 1300*2500mm/1500*2500mm/2000*3000mm

Engraving Speed:: 0-64000mm/min

CNC or Not:: Yes

Cooling Mode:: Water Cooling

Applicable Material:: Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Graphic Format Supported:: AI, BMP, DST, DWG, DXF, LAS, PLT

Place of Origin:: Shandong, China (Mainland)

Brand Name:: BEST

Model Number:: BT-1325FL/BT-1525FL/BT-2030FL

Dimension(L*W*H):: 3550*2070*1300mm / 3550*2250*1250mm / 4050*2750*1250mm

Certification:: CE, ISO, FDA

After-sales Service Provided:: Overseas third-party support available

Model No.:: BT-1325FL, BT-1525FL, BT-2030FL

Laser Power:: 80W/100W/130W/150W

Cutting Speed:: 0-36000mm/min

Resolution:: 4000DPI

Minimum Shaping Character:: Chinese Character: 2.0mmx2.0mm. English Letter: 1.0mmx1.0mm

Cutting Thickness:: Acrylic 0-30mm

Locating Accuracy:: +/-0.05mm

Laser Power Controlled by:: 100% by software setting

Power Supplied:: AC220V / 110V=/-10%

Packaging & Delivery

Packaging Details: Best Selling CNC Products co2 jeans cloth laser cutting machine
Free-Fumigation Wooden case

Delivery Time: 7 days after receiving deposit or original L/C at sight

Best Selling CNC Products co2 jean cloth laser cutting machine

Dear Customer:

Welcome to our website and hope our products will make you satisfied.And we own our own factory. So We can produce the products according to customer requirements .Survive by quality, profit by management, development by creation.

Let’s introduce this product to you as below:

Model	BT-1325FL	BT-1525FL	BT-2030FL
*Working Area (LW)**	2500x1300mm	2500x1500mm	3000x2000mm
Laser Type	80W/100W/130W/150W/180W Co2 sealed glass laser tube
Engraving Speed	64000mm/min
Cutting Speed	36000mm/min
Minimum Shaping Character	Chinese Character: 2.0mmx2.0mm. English Letter: 1.0mmx1.0mm
Laser Power Controlled by	0-100% software settings
Resolution	4000DPI
Locating Accuracy	+/-0.05mm
Power Supply	AC220V+/-10%/50Hz
Gross Power	<1800W
Software Supporting	Tajia, CorelDraw, PhotoShop, AutoCAD etc
Graphic Format Supporting	DST, PLT, DXF, BMP, DWG, AI, LAS etc
Cooling Mode	Water cooling
Operating Temperature	0-45 degree centigrade
Operating Humidity	5-95% free of condensed water
Assistant Equipment Equipped Standard	Water Chiller (optional), Water pump (equipped), Exhaust fan (equipped), Iron strip style worktable (honeycomb or strip style worktable is optional)
Recommended Spar Parts /Consumables	Laser tubes and Lens

1. Open worktable, designed specially for cutting and engraving large size material.

2. High working speed, cutting surface is smooth and cutting gap is small.

3. Closed optic circuit, high safety.

4. Imported linear guide way, high cutting precision.

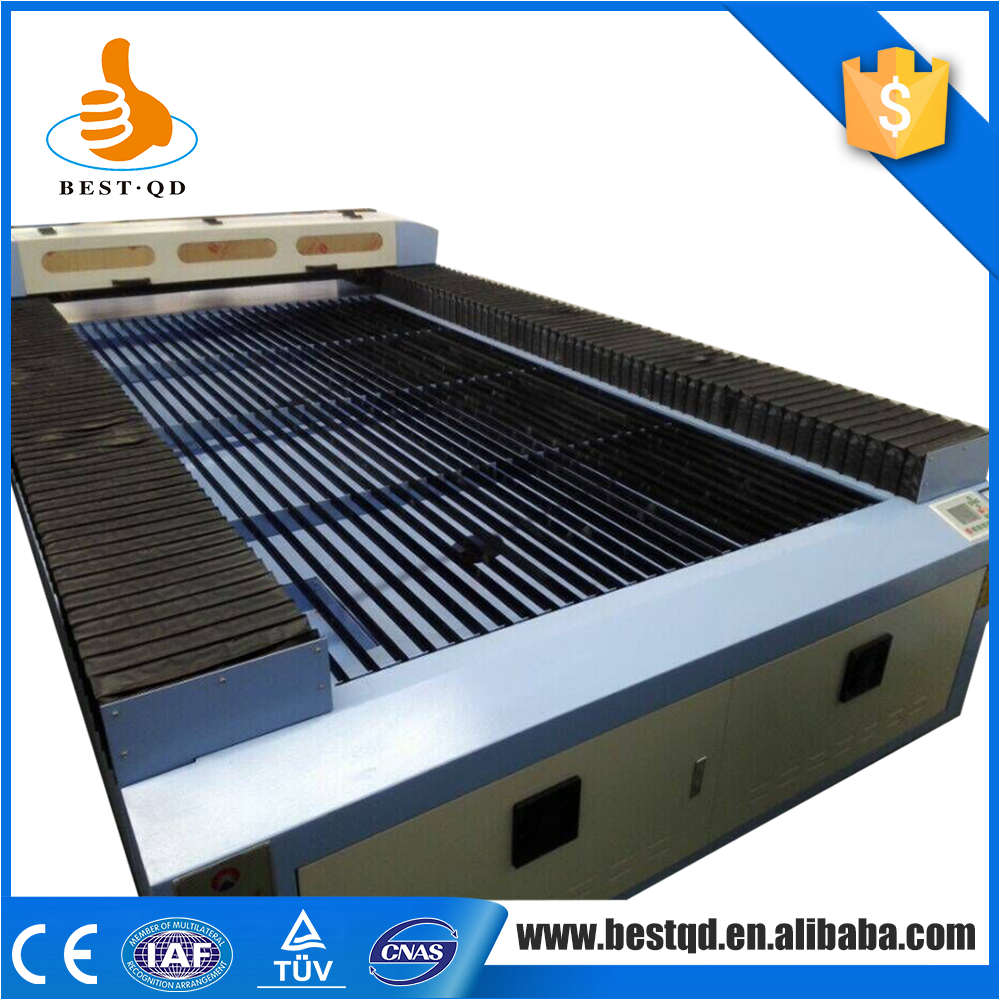

5. Flat bed with beehive surface, make material, especially soft material such as cloth, flat and smooth on working table.

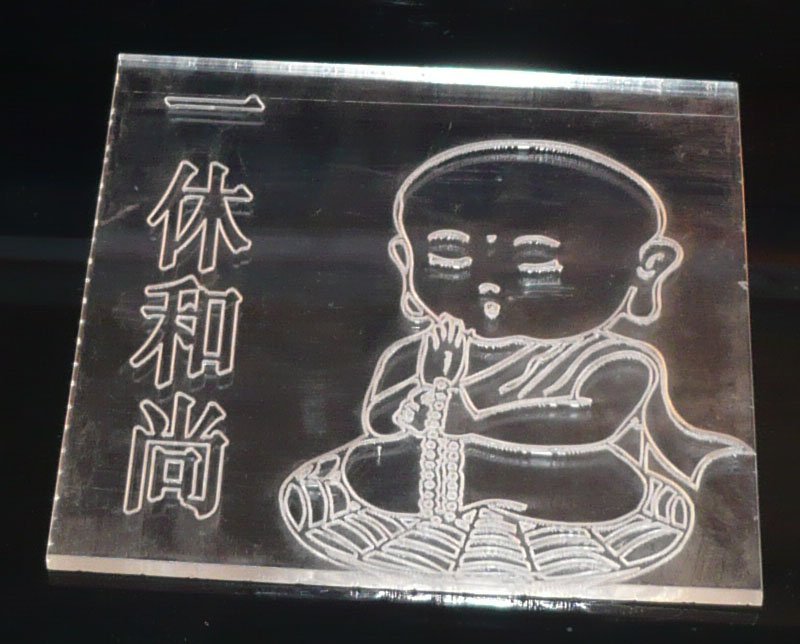

1.Acrylic sample cut and engraved by the machine:

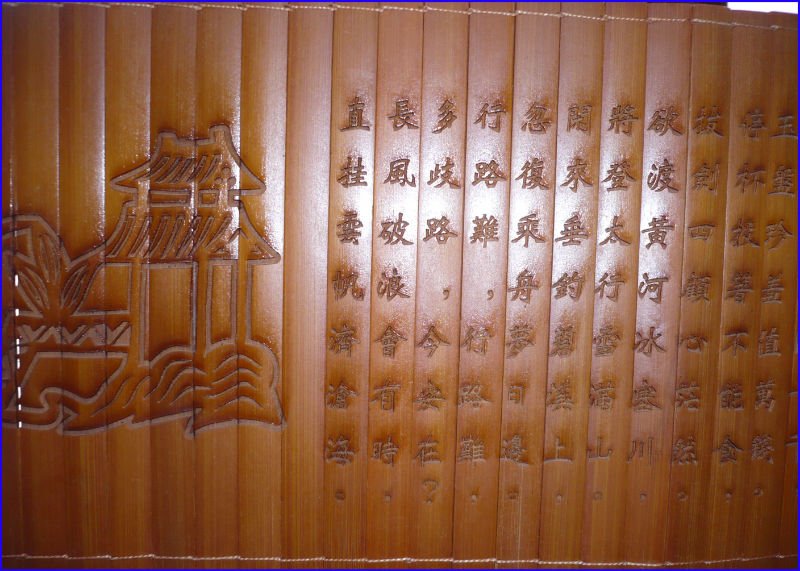

2.Bamboo sample engraved by the machine:

3. Glass sample engraved by the machine:

1.2 years dating from buyer receiving the machine.

2.During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide you with new one free cost and free shipment to replace.

3.When warranty is expired, if some part is broken or damaged, you can buy new from our company.
