Big discounting Automatic Roll Round Machine - High Performance 1300x2500mm CNC Plasma Machine with PMX105 Plasma Generator to cut metal max. 32mm thick – YUANNUO MACHINERY

Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-1325PMX105

Voltage:

AC380V+/-10%

Rated Power:

30kW, 8.5kW

Dimension(L*W*H):

310x220x150cm

Weight:

1200kg

Certification:

CE

Warranty:

2 years dating from you receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

CNC Plasma Machine

X, Y Axis Working size:

1300x2500mm

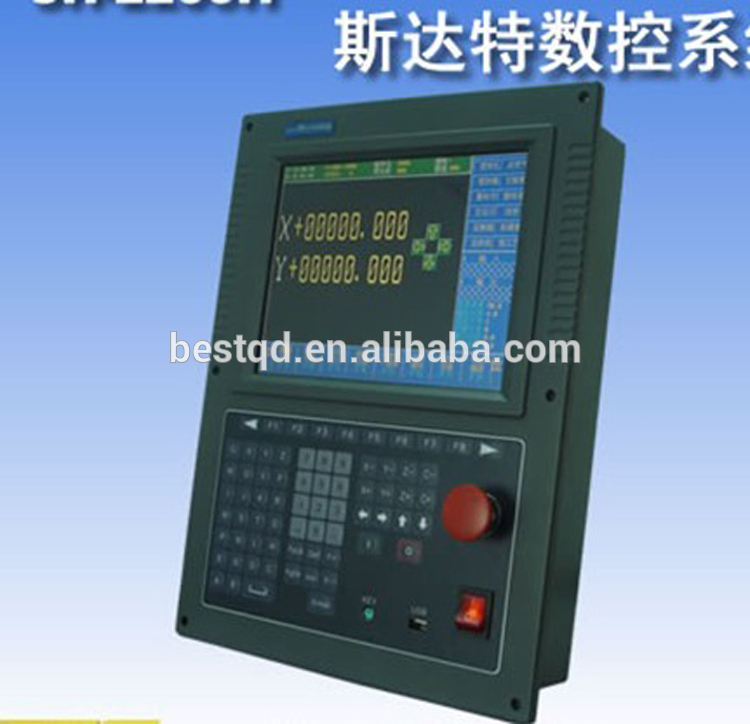

Control System:

Beijing Start control system

Data Transmission:

USB

Working voltage:

AC380V+/-10% 50-60HZ

Cutting Precision:

+/- 0.03mm

Cutting Thickness:

Mild Steel 3-32mm, Stainless Steel 6-25mm, Aluminium 6-25mm

Cutting Speed:

500-8330mm/min

Origin:

Plasma generator is made in USA

Packaging & Delivery

Packaging Details

Delivery Time

10 days after receiving T/T deposit or original L/C at sight

Dear Sir or Madam,

Thank you for interest in our machine. Let’s introduce more details about it as below:

Product Details

1. Specification:

2. Application:

To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel, titanium sheet. stainless steel, iron etc.

3. Technical Feature:

1) The bed lathe is welded with thick wall cast steel tube, and it is quenched before welding so to eliminate innerstress, so the work tabe is quite strong, stable and durable, nondeformable, and high rigidity.

2) Gantry style structure, Y axis equipped with double stepper driven motors, more powerful.

3)X Y Z axis are equipped with Hiwin square linear guideway made in Taiwan.

4) X, Y axis tilt rack and pinion, gear drive. The tilt rack and pinion is higher accuracy and smaller noise than the stright type. Z axis is driven by cylinder.

5) Well softwares compatibility, such as Type3 / Artcam / Castmate / Ucancam V9 etc CAD/CAM software are all compatible.

6)  Legal version Start CNC control system with Automatic capacitance-height controller and automatic arc-height controller.

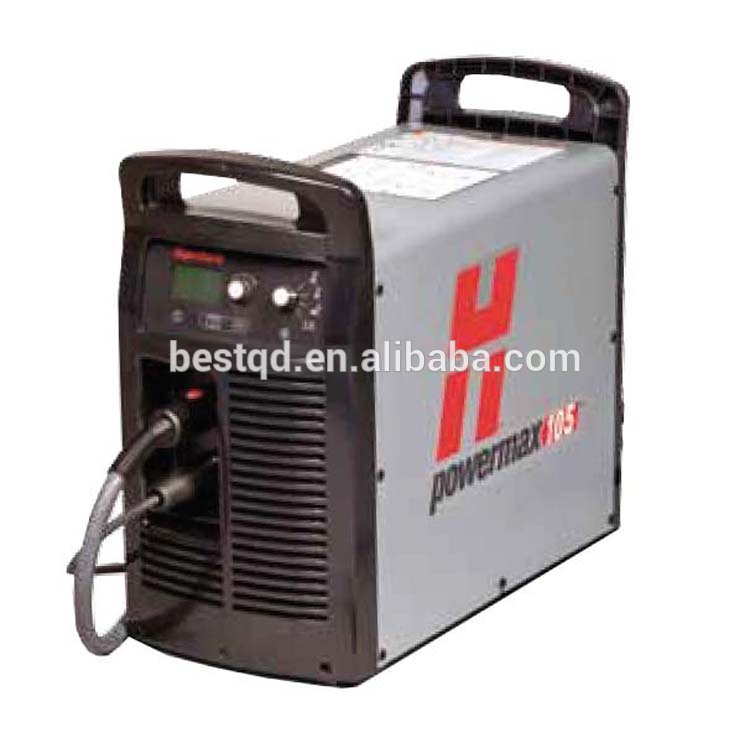

7) Equipped with Hypertherm Powermax105 plasma generator made in USA. (The detailed technical specification of Powermax105 plasma generator, please refer to the appendix.)

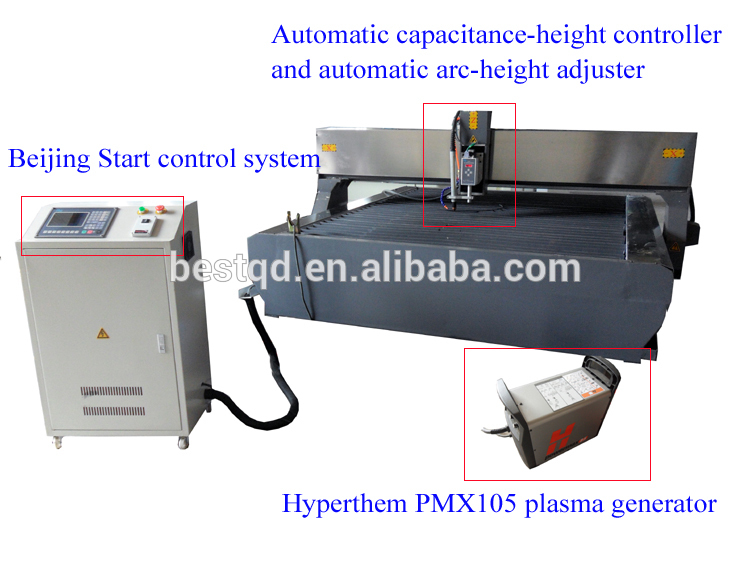

4. Machine details:

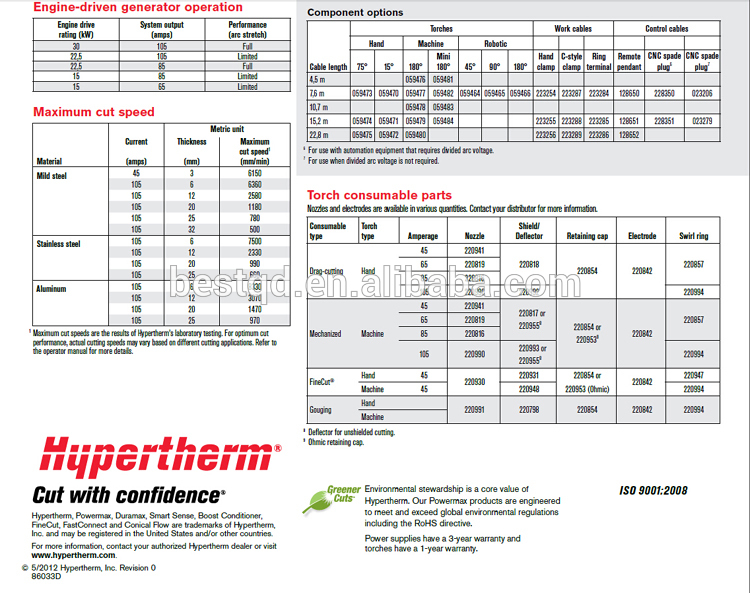

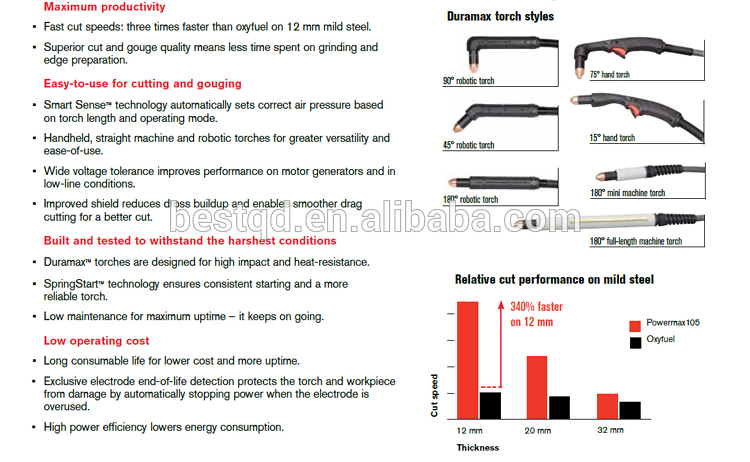

5. Appendix regarding Hypertherm PMX105 Plasma Generator:

Lead Time

It will take 10 days for us to produce it dating from we receive deposit or original L/C at sight.

Our Services

1. As soon as machine is finished, we will inform you to send somebody here to inspect it. Or if it is not convenient for you to inspect here, we will take detailed pictures and working video of this machine for your confirmation.

2. We have full set of Demo Videos and User’s Manual in English to teach you how to install, operate and maintain the machine.

3. We provide technical support during the whole lifespan of the machine.

Warranty

1. Before shipment, every machine is inspected by our QC depart strictly and make sure every machine shipped is 100% perfect.

2. Comparing with other suppliers’ 1 year warranty dating from machine on board, all of our machines’ warranty is 2 years dating from buyer receiving the machines.

3. During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.

Package and Shipping

Package:

The machine will be packed in free-fumigation wooden case, dimension and weight as below:

Machine case (L*W*H): 310x220x150cm, 10.23CBM, 1220kg

Shipping:

We have rich experience in DDU or DDP shipment, it means we can arrange shipment to your door directly.

Contact Us

Thank you for your time. For more details, please kindly contact us.
