Processing Type:

Other

Condition:

New

Product Type:

Plastic Sheet

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST or OEM

Model Number:

BT-1500DP

Voltage:

AC380V+/-10% or AC220V+/-10% are both available

Power(W):

1500

Dimension(L*W*H):

129*73*112cm,

Weight:

446kg

Certification:

CE and testing report

Warranty:

2 years dating from you receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Acrylic Diamond Edge Polishing Machine

Model No.:

BT-1500DP

Polishing Length:

Unlimited

Max. Polishing Thickness:

80mm

Feeding Mode:

Spindle feeding

Material Application:

plastic sheet: PE, PS, Poly, ABS, acrylic etc

Rotating Speed Of Spindle:

2000-20,000rpm

Cutting Depth:

0-0.5mm adjustable

Cutting Speed:

0-1,000mm/min (600mm/min is the best status)

Certificate:

CE and testing report

Packaging & Delivery

Packaging Details

Delivery Time

3 days after deposit or original L/C is received

Product Discription

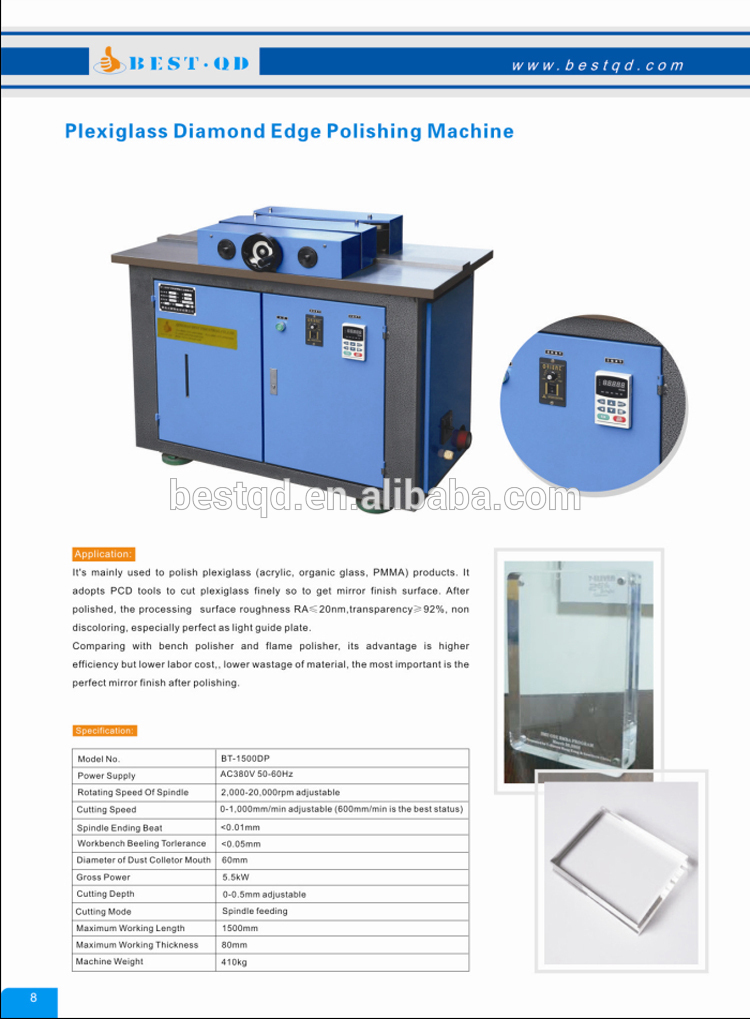

1. Specification:

2. Application:

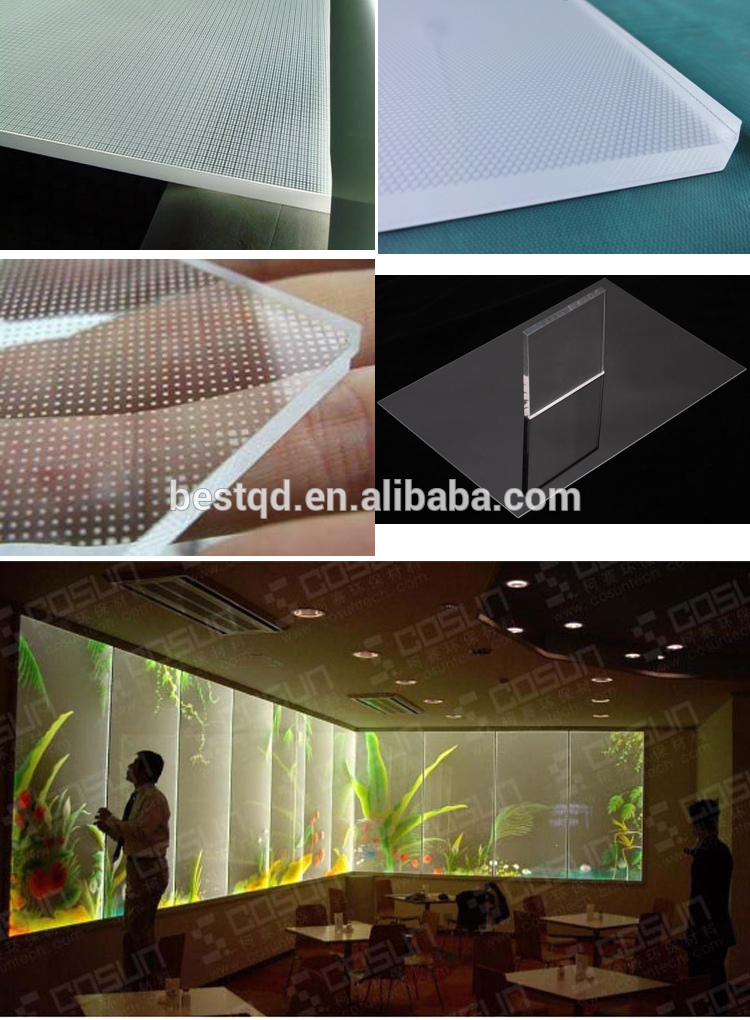

The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.
3. Advantage:

Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.

Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.

4. Machine details:

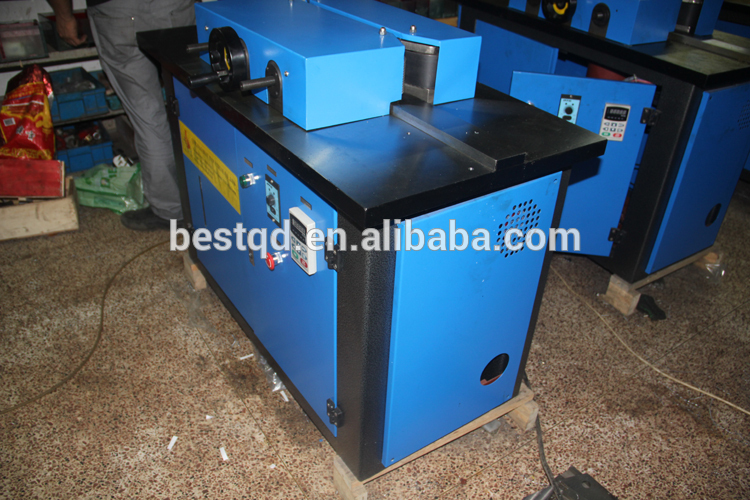

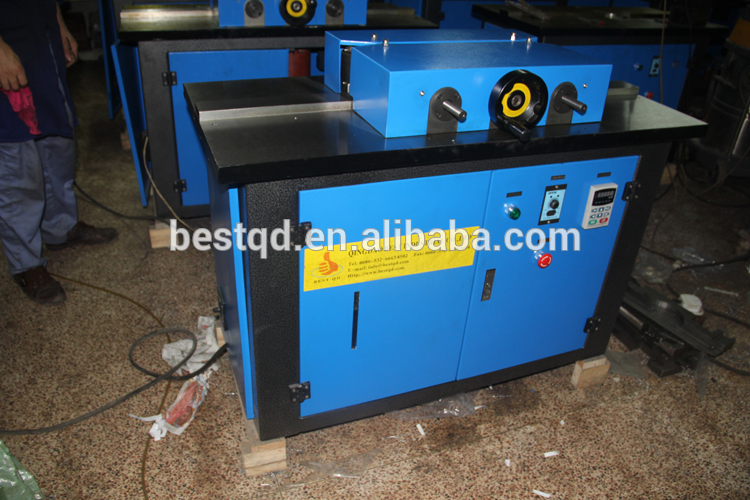

 1) Ready machines in warehouse:

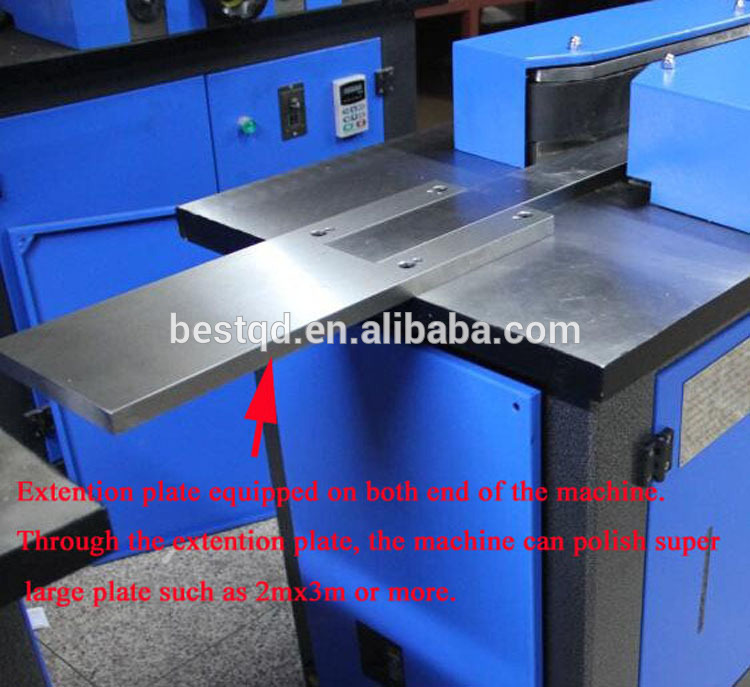

2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material:

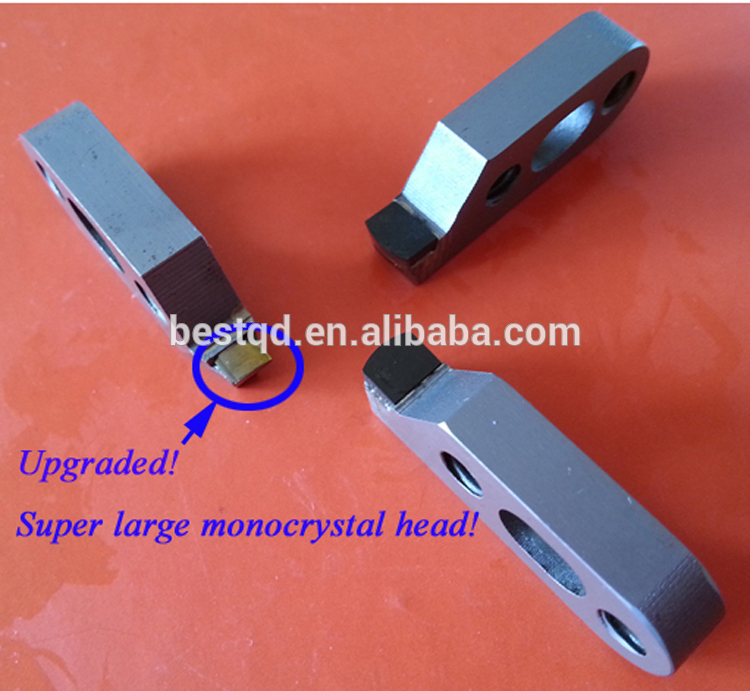

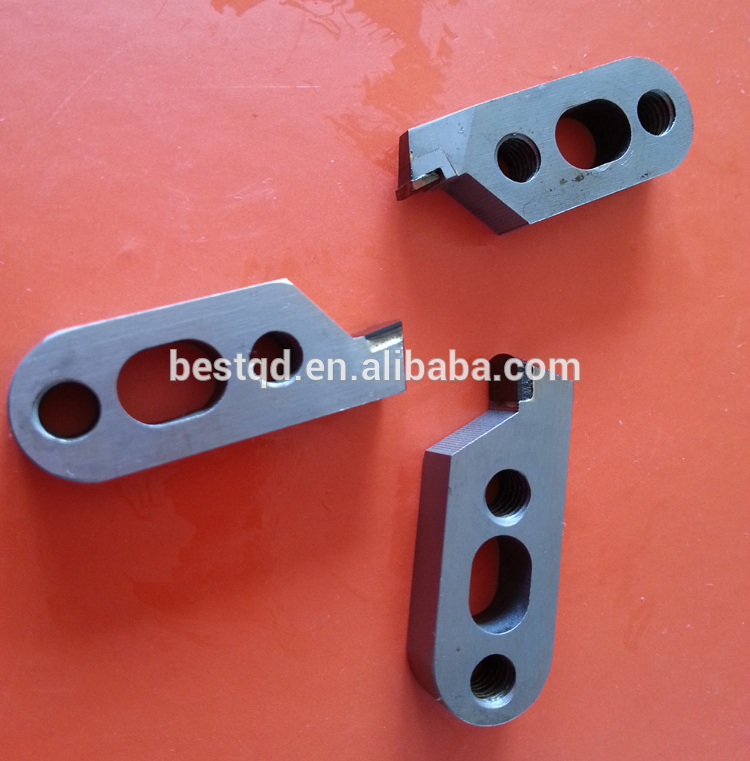

3) Diamond Cutters:

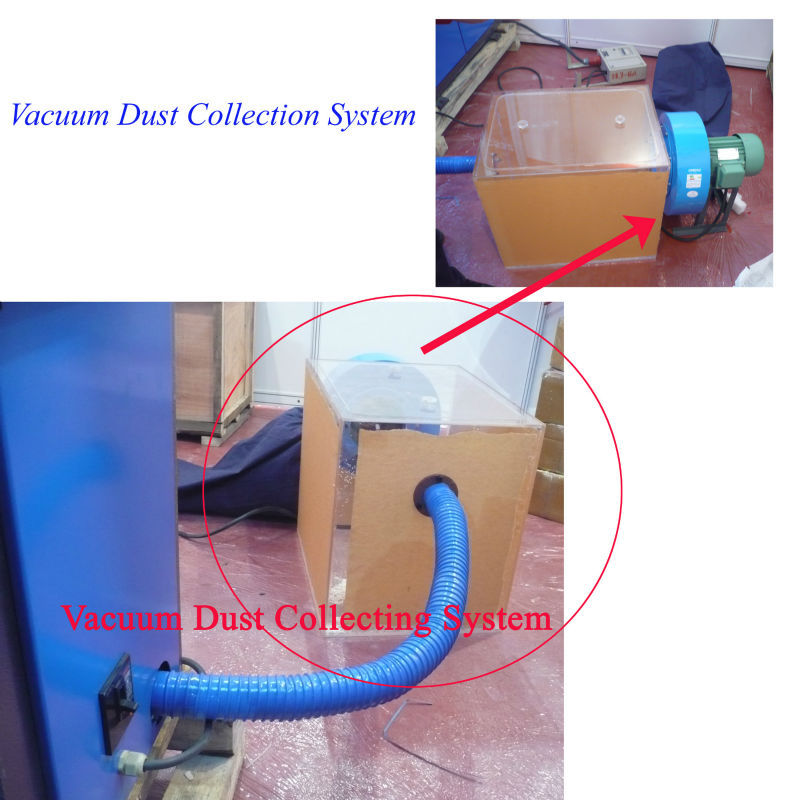

4) Dust Collector equipped on the machine:

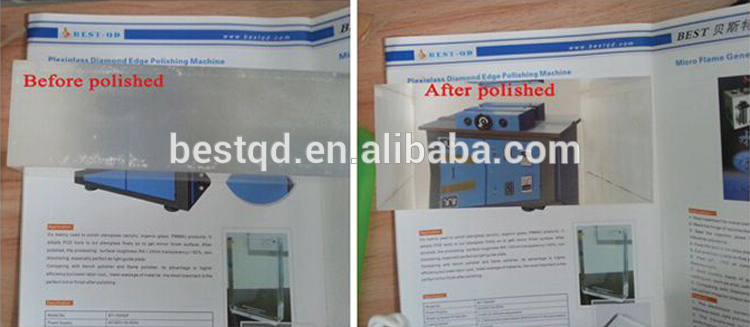

5. Samples polished by the machine:

Package and Shipping

Package:

The machine and dust collector will be packed in separate free-fumigation wooden case, dimension and weight as below: Machine case (L*W*H): 132x74x117cm, 1.14CBM, 420kg

Dust Collector case (L*W*H): 72x57x66cm, 0.27CBM, 60kg

Shipping:

The machine can be shipped by sea or by air.

FOB, C&F and CIF are all available. We also can quote you all shipping cost to door (DDU or DDP).

Certifications

We have CE certificate and full set of testing report for this machine.

Warranty

2 years dating from you receiving the machine.

During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.

Company Information

Qingdao Best Industrial Co., Ltd were established in 2008. We specialize in Developing, designing, manufacturing and selling various standard and non-standard equipment. Main products including Advertising Material Processing Equipment, such as Diamond Edge Polishing Machine, Ultrasonic Spot Welding Machine, Plastic Bending Machine, Acrylic Vacuum Forming Machine, CNC Router, CNC Laser Engraving and Cutting Machine etc; Metal Plate And Metal Tube Processing Equipment, including Marking Machine On Regular and Irregular Shape Metal Accessories, CNC Plasma Cutting Machine, Oxy-Hydrogen Spot Welding Machine, Argon Welder etc.
The headquarter base in Licang District, Qingdao City, Shandong China. We have branch companies in Dezhou City of Shandong Provice and Lanzhou City of Gansu Province. Some machines are ready in branch companies too, welcome to visit and inspect the machine at your convenience.
Comparing with other suppliers, the same machine, ours quality is higher. The same quality level, ours price is more competitive. The same price level, our service is more professional and timely. Sincerely thank you for selecting Qingdao Best as your business partner, we will reward you with the best product, service and price in the world.

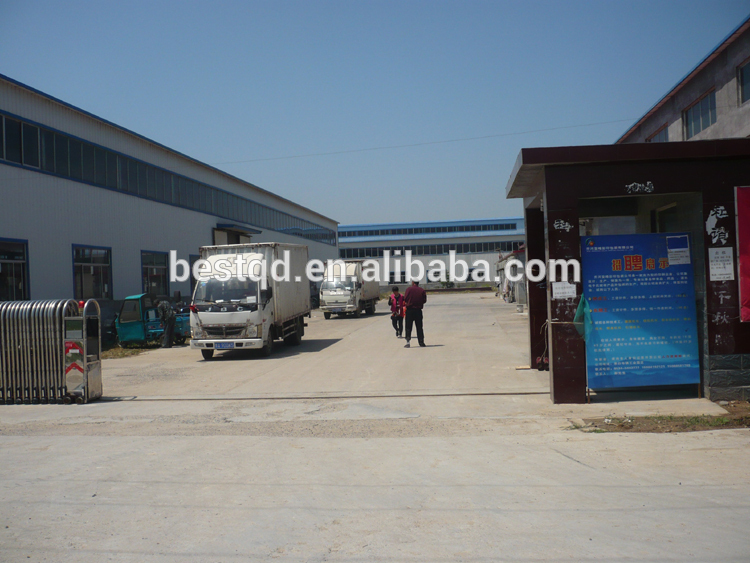

Factory:

Ready machines in warehouse:

Catalogue:

Contact Us

If you have any questions, please feel free to contact us:
