China New Product Chp Gas Generator 1000 Kw - BT-1500DP High Efficiency Diamond Edge Plexiglass Polishing Machine – YUANNUO MACHINERY

Processing Type:

Other

Condition:

New

Product Type:

Plastic Sheet

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST or OEM

Model Number:

BT-1500DP

Voltage:

AC380V+/-10% or AC220V +/-10%

Power(W):

1500

Dimension(L*W*H):

129x73x112cm,

Weight:

480kg

Certification:

CE

Warranty:

2 years

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Plexiglass Polishing Machine

Model No.:

BT-1500DP

Type:

Vertical

Angle Adjustable:

No

Working Area (L*W):

Unlimited

Maximum Working Thickness:

80mm

Rotating Speed Of Spindle:

2000-20,000rpm

Cutting Depth:

0-0.5mm adjustable

Cutting Speed:

0-1,000mm/min (600mm/min is the best status)

Certificate:

CE certificate with testing report

Packaging & Delivery

Packaging Details

Delivery Time

3 days after deposit is received

1. Specification:

2. Application:

The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.
3. Advantage:

Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.

Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.

4. Machine details:

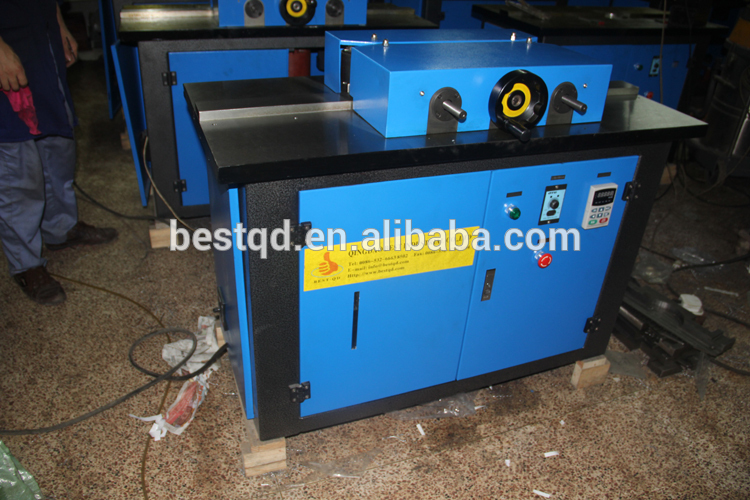

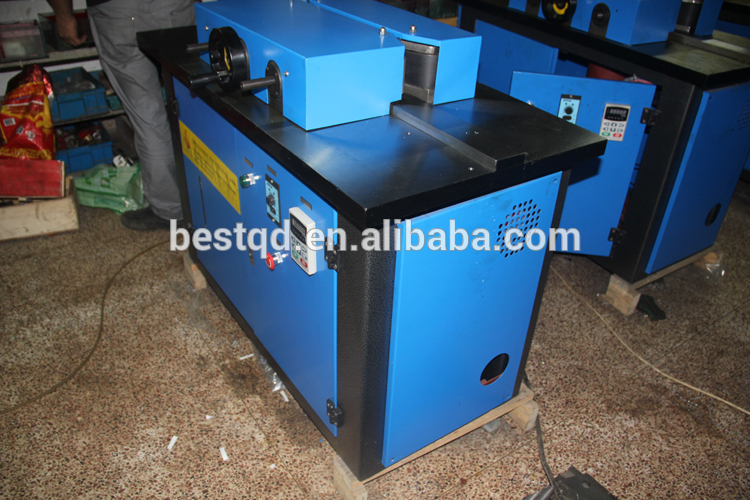

 1) Ready machines in warehouse:

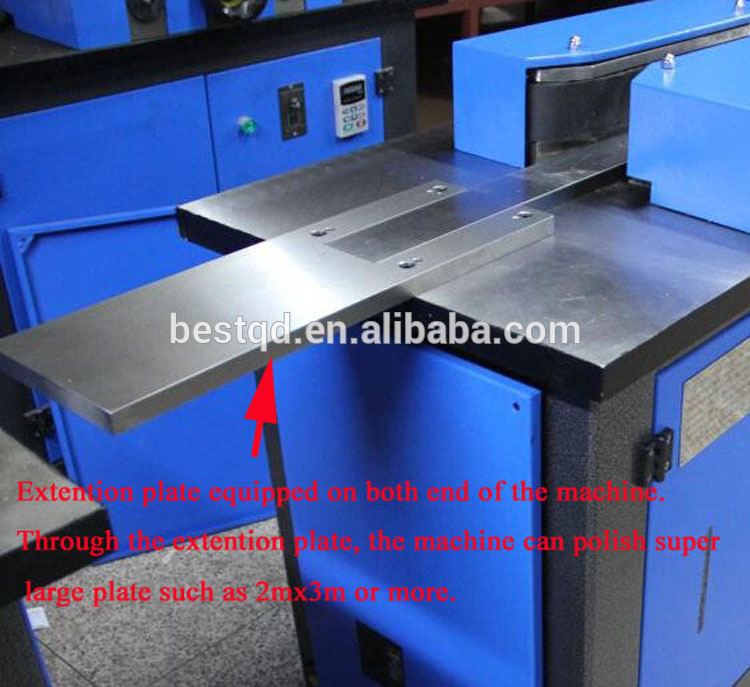

2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material:

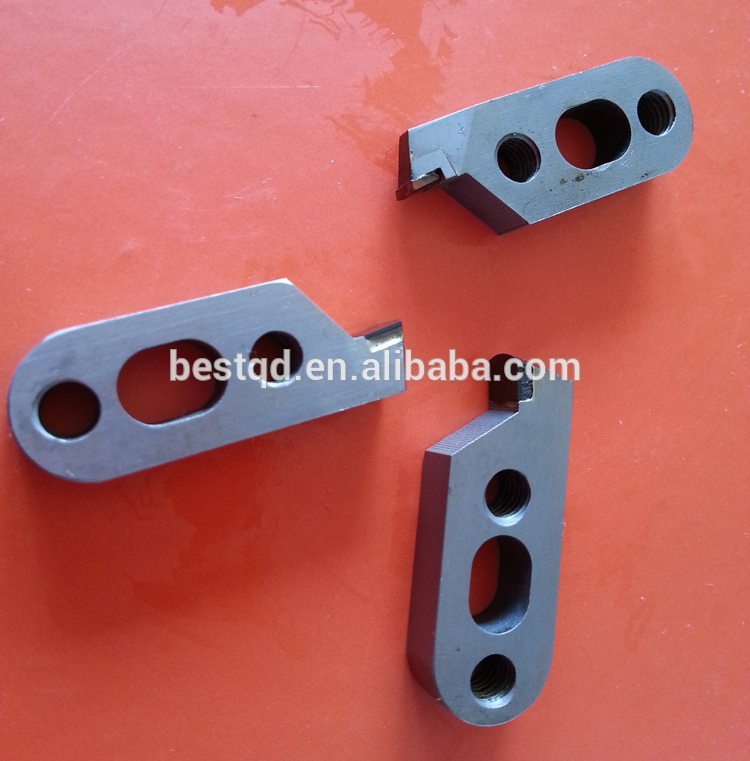

3) Diamond Cutters:

4) Dust Collector equipped on the machine:

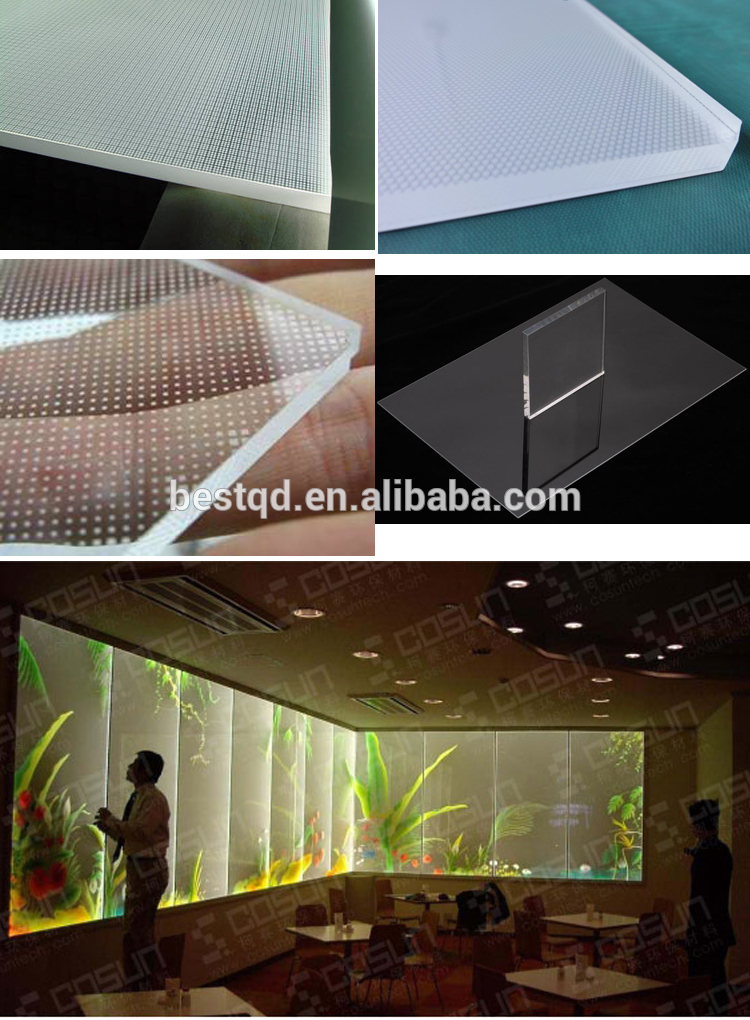

5. Samples polished by the machine:
