Processing Type:

Other

Condition:

New

Product Type:

Plastic Sheet

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-2200DP-S

Voltage:

AC380V+/-10% (special voltage can be customized)

Power(W):

less than 5.5kw

Dimension(L*W*H):

3300*1420*1750mm,8.20CBM

Weight:

2500kgs

Certification:

CE, ISO

Warranty:

2 years dating from buyer receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Adjustable angle acrylic edge horizontal long axis polishing machine

Model No.:

BT-2200DP-S

Max. polish area (Length*Thickness):

2200*120mm

Polish angle:

0-60 degree adjustable

Spindle rotating speed:

6000-9000rpm adjustable

Cutting speed:

0-1000mm/min

Air compressed required:

More than 0.60Mpa

Cutting depth per time:

0-1mm adjustable

Cutting mode:

spindle feeding

Dust Collector Joint Size:

100mm

Packaging & Delivery

Packaging Details

Plexiglass edge acrylic bending machine made in china

Description

Advantage It is equipped with LS brand Servo System and LS PLC control system with color LED touch screen imported from South Korea, all orders can be fulfilled on the touch-screen automatically, including angle adjustment in range of 0-60 degree automatically. So working efficiency is much higher and setting is more accurate.                             Click here to watch working video

The specification of  BT-2200DP-S

Item No.	BT-2200DP-S
Working Are (Work piece Length * Thickness)	2200*120mm (since the 2 ends of worktable are open, material length is no limitation.)
Working Width	No limitation
Complete Machine Power	≤5.5KW
Spindle Rotating Speed	6000-9000RPM adjustable
Cutting Speed	0-1000mm/min adjustable
Cutting Mode	Spindle feeding
Polish Angle	0-60°adjustable
Cutting Depth	0-1mm (adjustable)
Power Supply	AC380V+/-10%, 50/60Hz, 3 phase 4 lines
Dust Extractor Mouth Diameter	100mm
Compressor Air	≥0.60Mpa
Package Dimension (L*W*H)	3400*1420*1750mm,8.45CBM
Machine N.W.	2400kg
G.W. With Package	2500kg

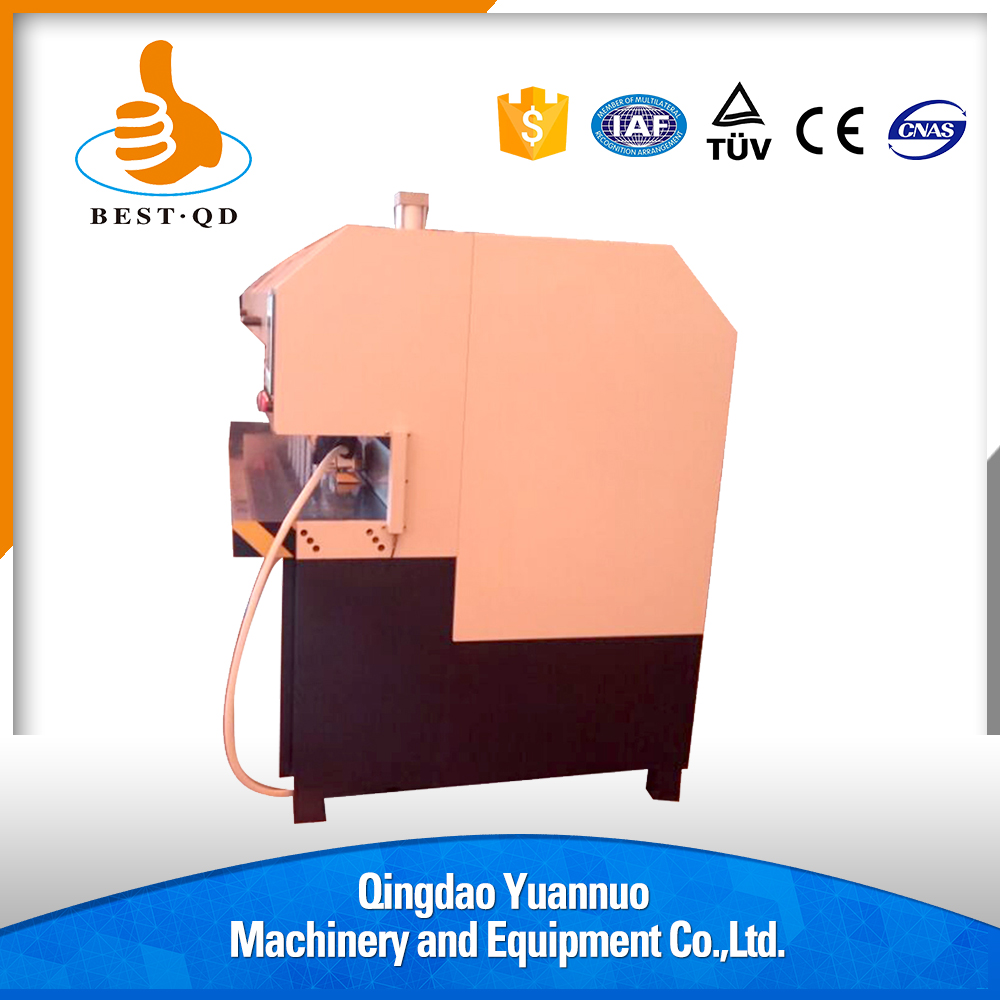

Product show

Features

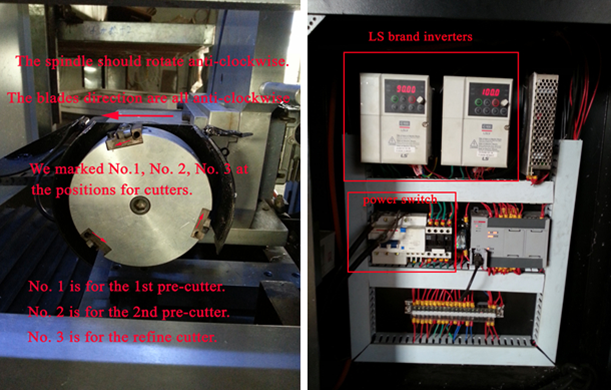

1.We have Cutters Adjustment Device to help you change and adjust cutters easily.

2. It is horizontal type, comparing with vertical type, its working efficiency is much higher, working precision is more accurate. Furthermore, the 2 ends of the machine are open, no length limitation.

Product details

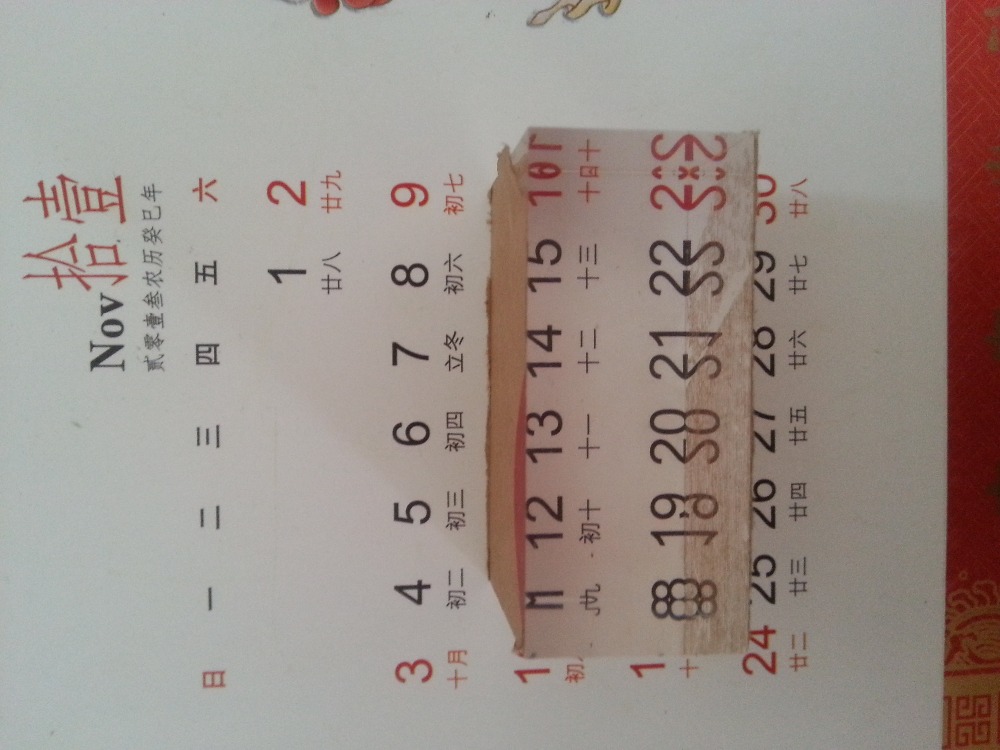

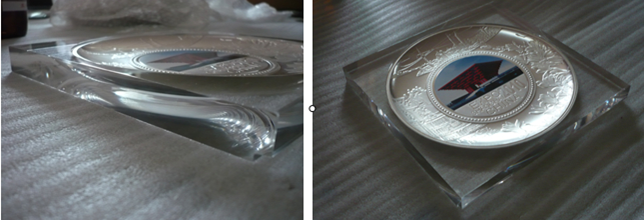

Product samples

---

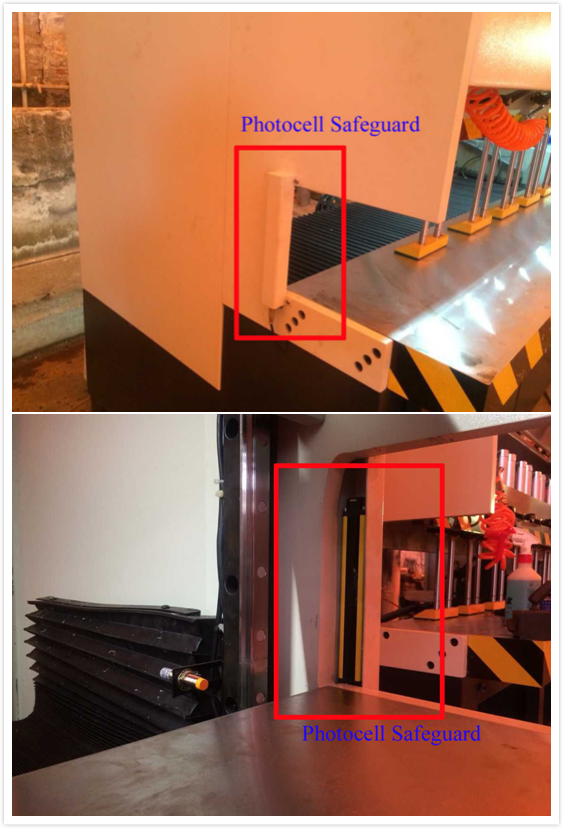

Product detail pictures:

---
