- Processing Type:
- Other
- Condition:
- New
- Product Type:
- Plastic Sheet
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST or OEM
- Model Number:
- BT-1500DP
- Voltage:
- AC220V+/-10% or AC380V+/-10%
- Power(W):
- 1500
- Dimension(L*W*H):
- 129x73x112cm
- Weight:
- 480kg
- Certification:
- CE with testing report
- Warranty:
- 2 years
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Edge Polishing Machine
- Model No.:
- BT-1500DP
- Clamping Work piece:
- Vertical direction
- Polish Angle:
- 90 degree
- Working length:
- No limitation
- Maximum Working Thickness:
- 80mm
- Rotating Speed Of Spindle:
- 2000-20,000rpm
- Cutting Depth:
- 0-0.5mm adjustable
- Cutting Speed:
- 0-1,000mm/min (600mm/min is the best status)
- Certificate:
- CE with testing report
Packaging & Delivery
- Packaging Details
- Delivery Time
- 3 days after receiving deposit
1. Specification:
| Model NO. | BT–1500DP |
| Power Supply | AC220V±10% or AC380V±10% |
| Spindle Rotation Speed | 2,000–20,000rpm (adjustable) |
| Max. Cutting Speed | 1,000mm⁄min |
| The Best Cutting Speed | 600mm⁄min |
| Spindle Ending Beat | <0.01mm |
| Workbench Straightness Tolerance | <0.05mm |
| Diameter Of Dust Collector Mouth | 60mm |
| Gross Power | 5.5kW |
| Cutting Depth | 0−0.05mm adjustable |
| Cutting Mode | Spindle Feeding |
| Working Length | Unlimited |
| Max. Working Thickness | 80mm |
| Dimension |
Machine: 132x74x117cm, 420kg Dust Collector: 72x57x66cm, 60kg |
| Weight | 480kg |
2. Application:
The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.
3. Advantage:
Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.
Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.
4. Machine details:

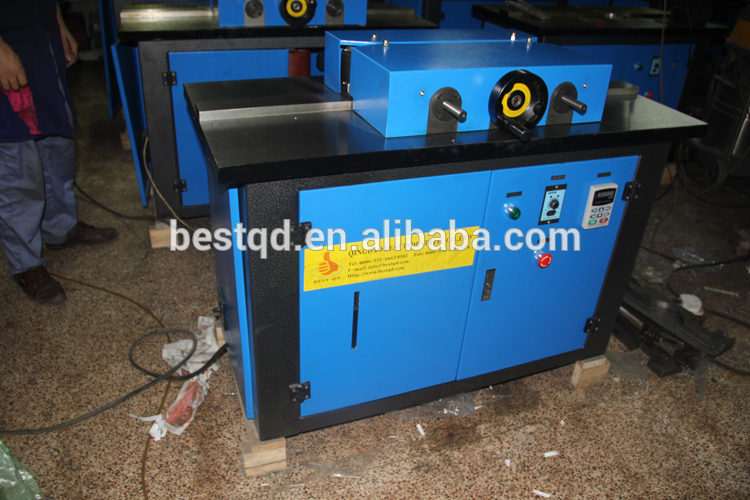

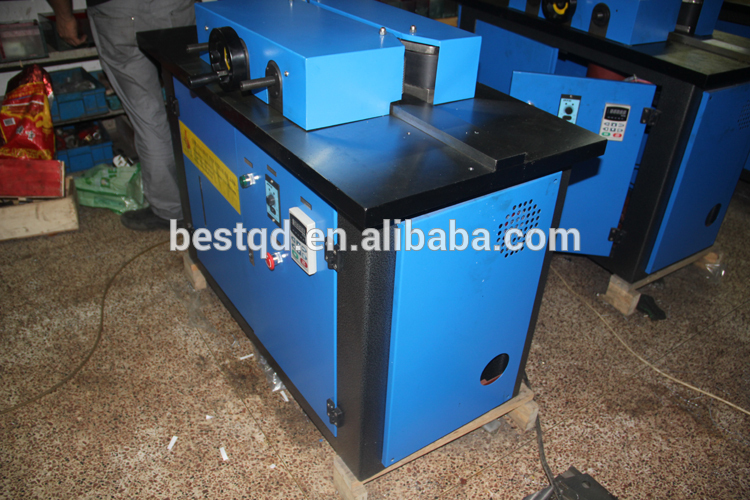

1) Ready machines in warehouse:

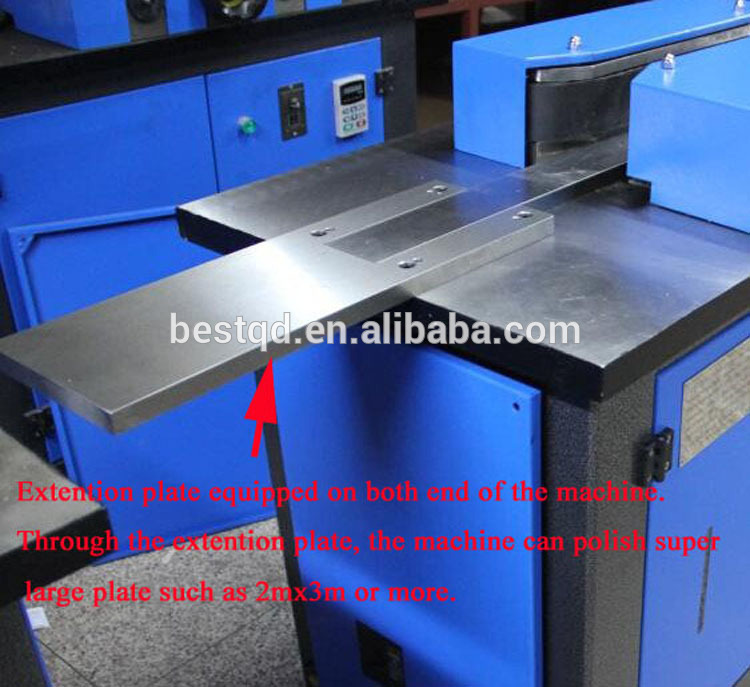

2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material:

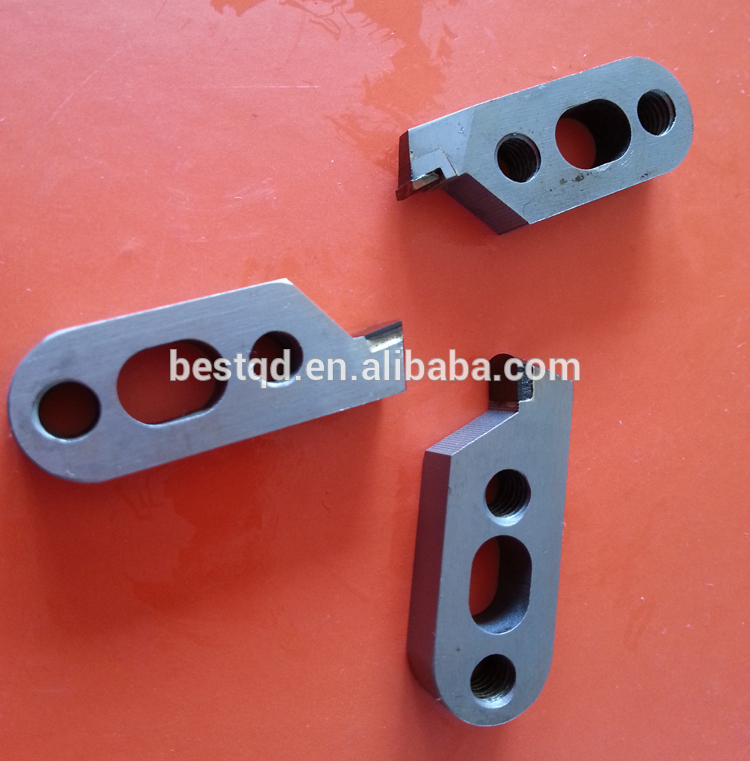

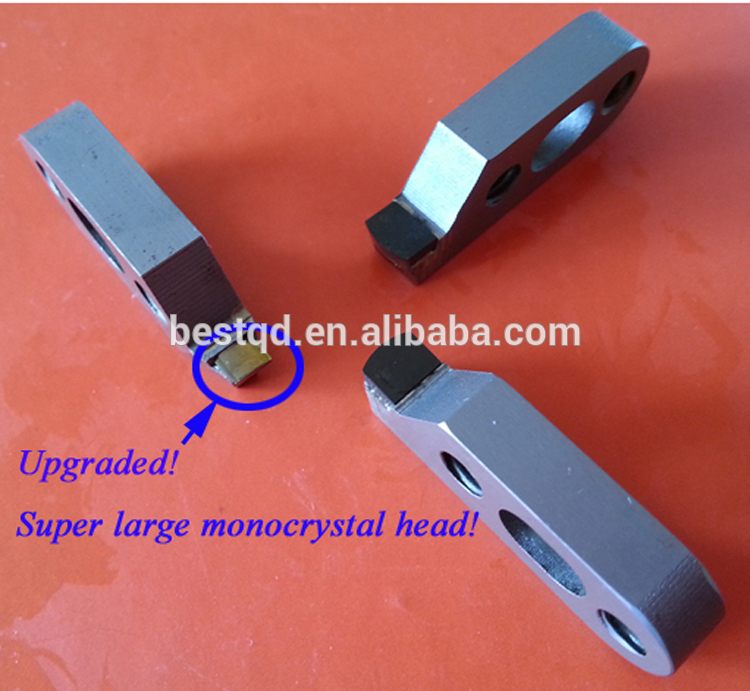

3) Diamond Cutters:

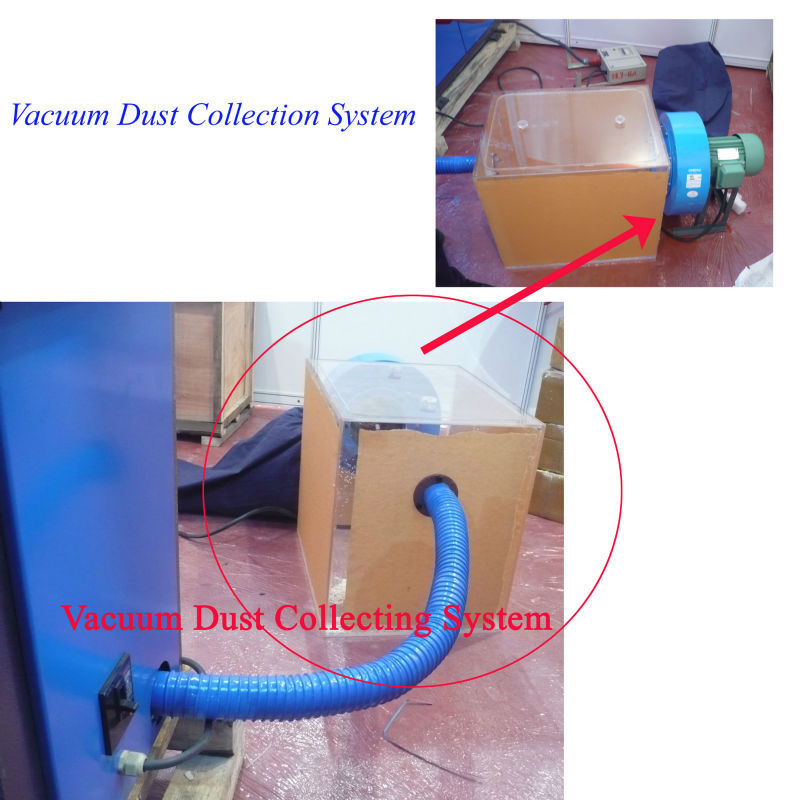

4) Dust Collector equipped on the machine:

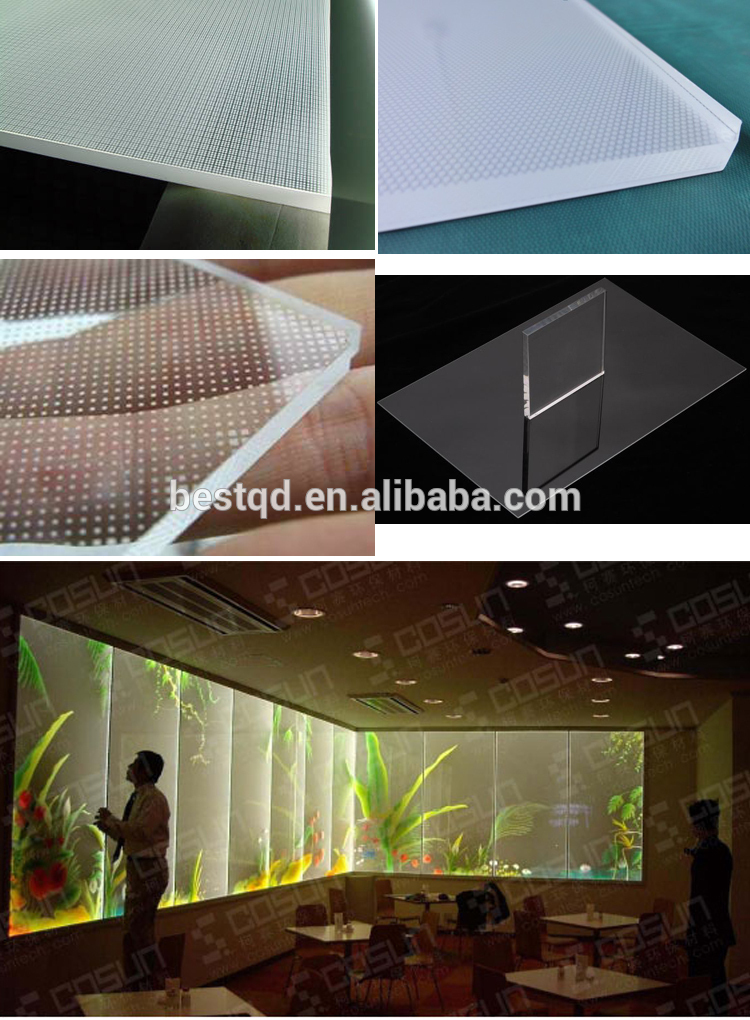

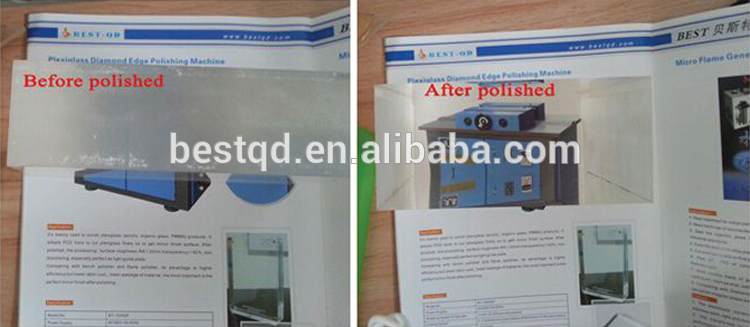

5. Samples polished by the machine:
