Discount wholesale Electricity Generator - Mini edge diamond acrylic pmma polishing machine – YUANNUO MACHINERY

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-1500DP, BT-1500DP

Type:

Bench Polisher

No-Load Speed:

2000-20000rpm

Rated Voltage:

AC380V+/-10% or AC220V+/-10%

Rated Input Power:

50-60Hz

Dimensions:

Machine: 115x56x90cm. Dust collector: 68x53x60cm

Wheel Diameter:

150mm

Frequency:

100Hz

Weight:

500kg

Name:

Polishing Machine

Max. working length:

1500mm

Max. working width:

80mm

Milling depth:

0mm-0.5mm (adjustable)

Milling angels degree:

90 degree

Main Shaft Rotating Speed:

2000-20000rpm

Cutting Mode:

Spindle feeding

Power Supplied:

AC380V+/10% or AC220V+/-10% optional

Gross Powe:

5.5kw

Packaging & Delivery

Packaging Details

Delivery Time

Shipped in 7 days after payment

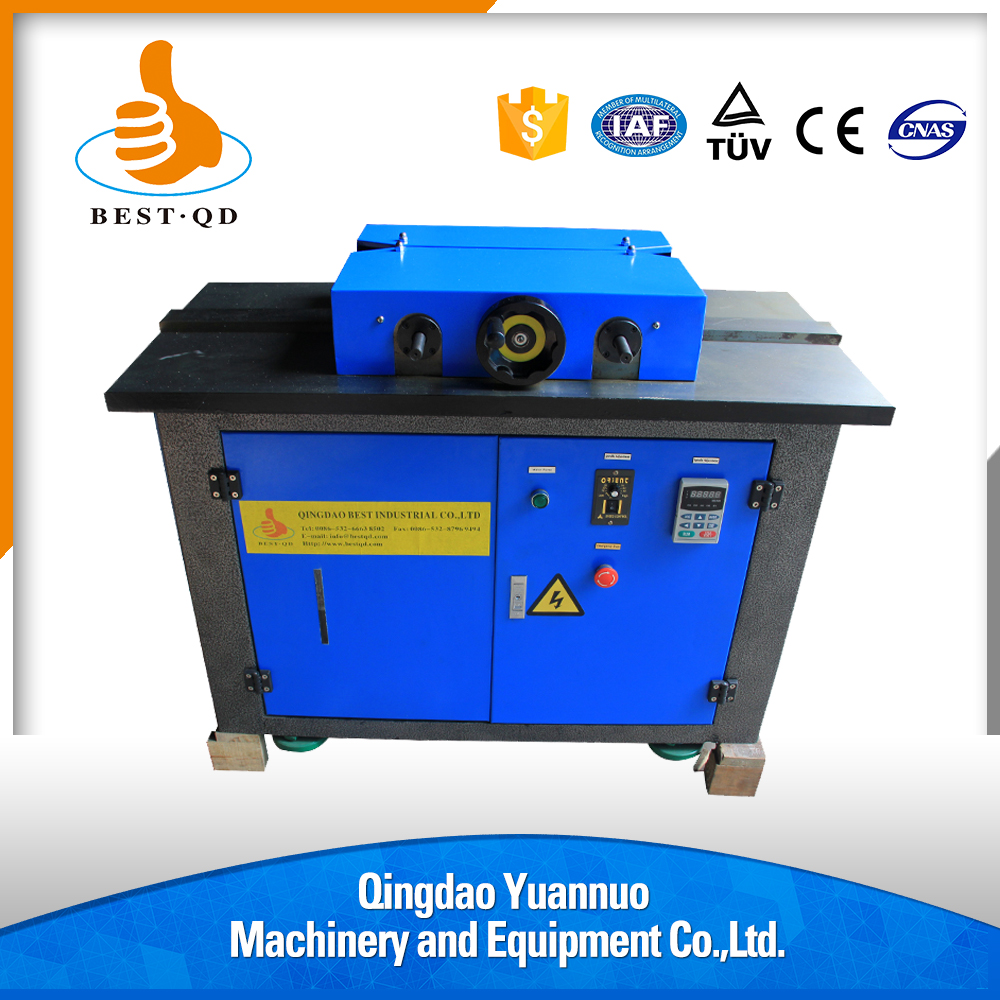

Mini edge diamond acrylic pmma polishing machine

1.Equipped with endless rail way, can polish super long plate continuously, high efficiency. 2. High efficiency, low labor cost. 3. Low wastage of material. 4. High precision, the cutting thickness is adjustable in range of 0-0.5mm. 5. Environment friendly, no powder, low noise and low energy consumption. 6. Automatic polishing by machine, reduce labor injury.                                      Click here to watch working video

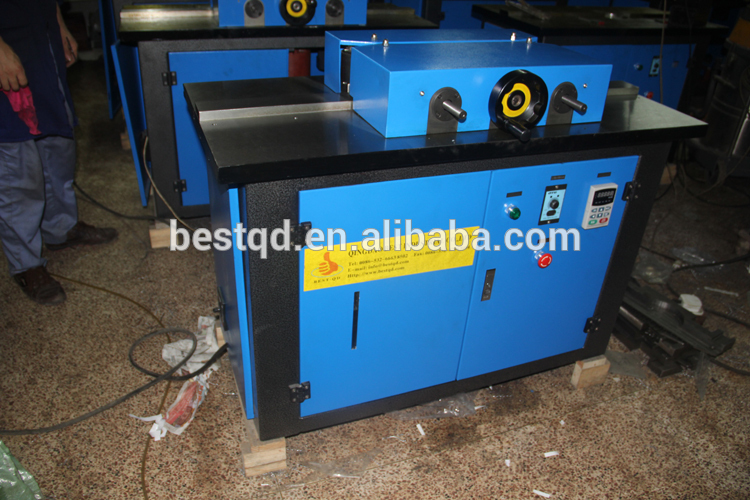

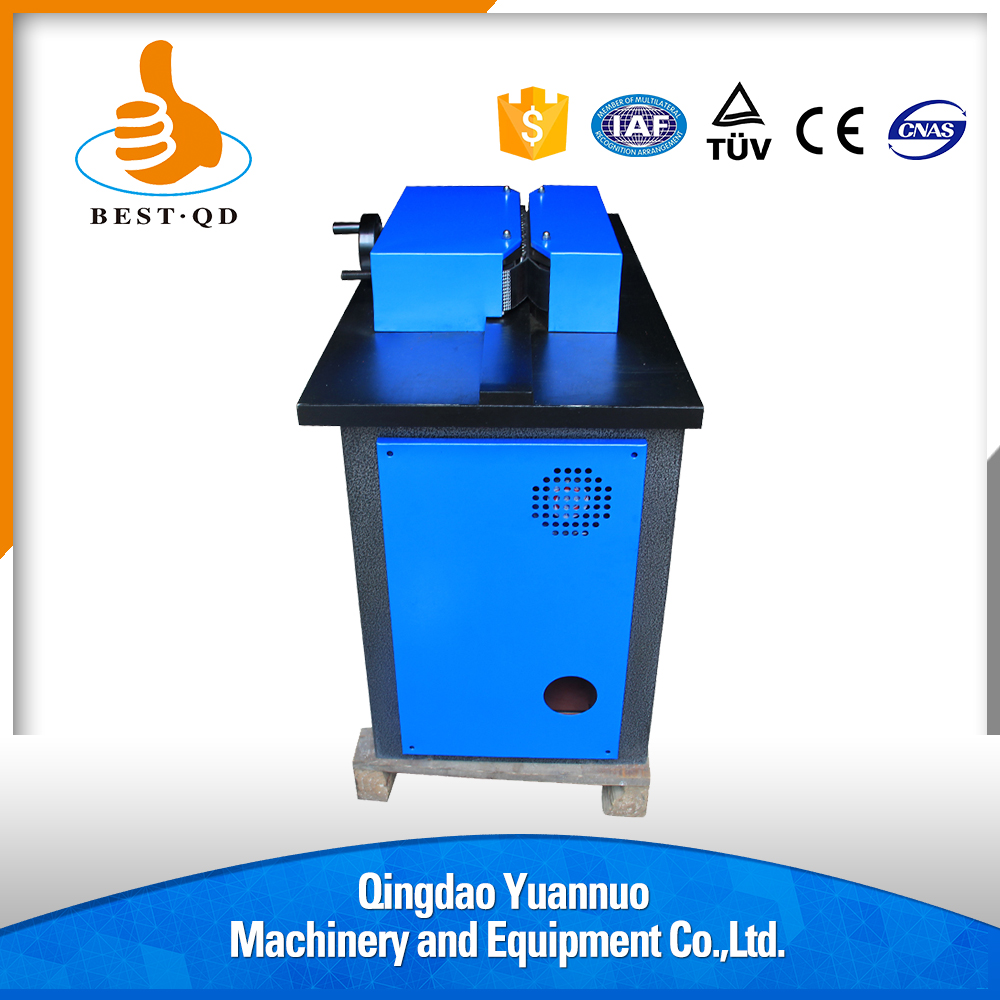

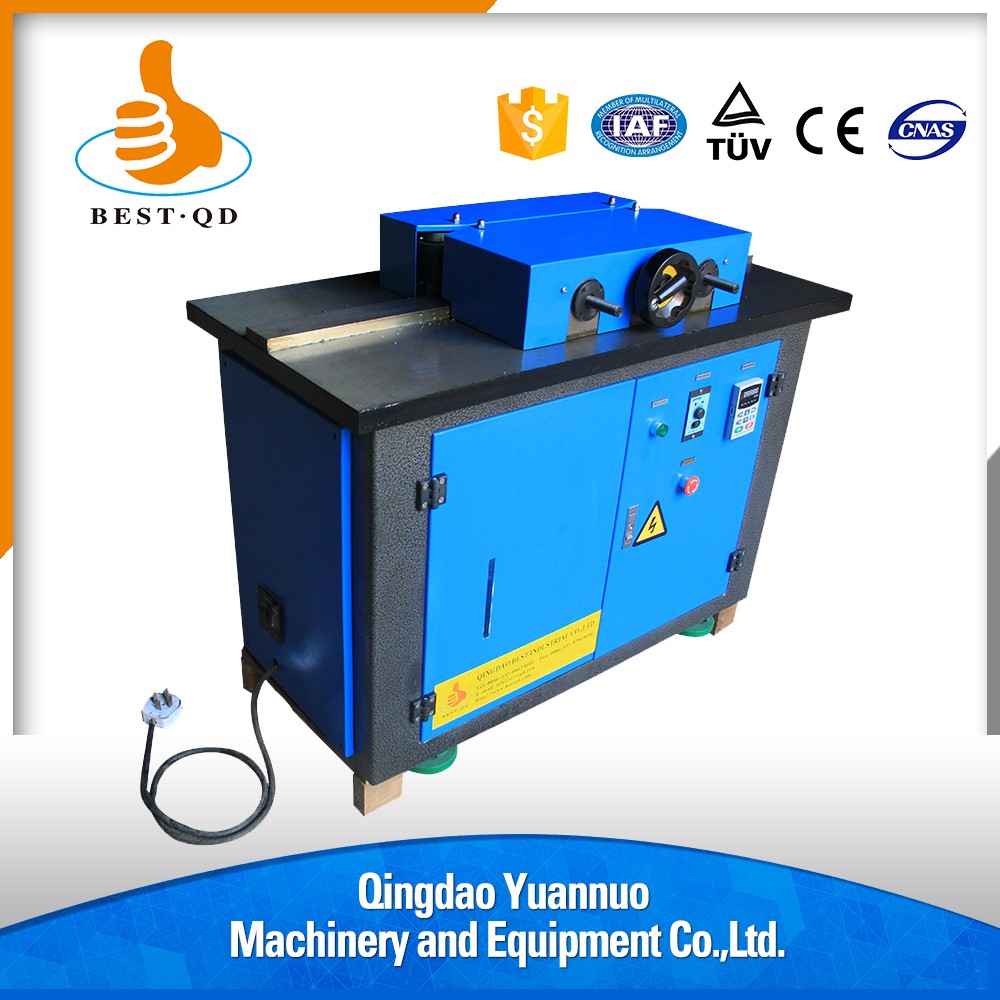

Product show

2. Application

The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.

3. Advantage

Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.

Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.

4. Machine details

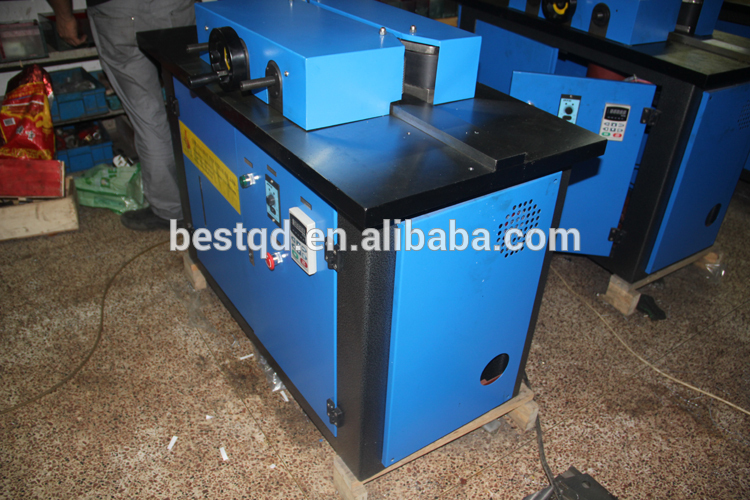

1) Ready machines in warehouse

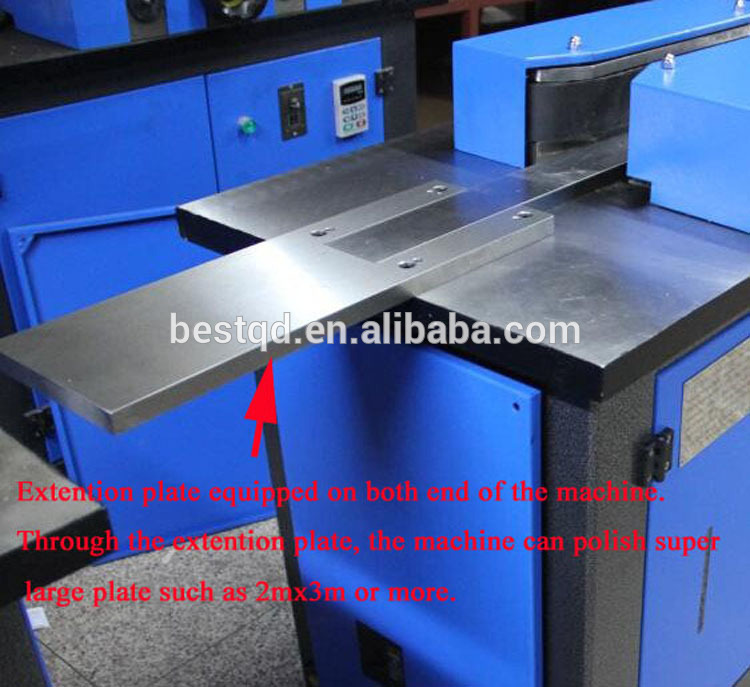

2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material

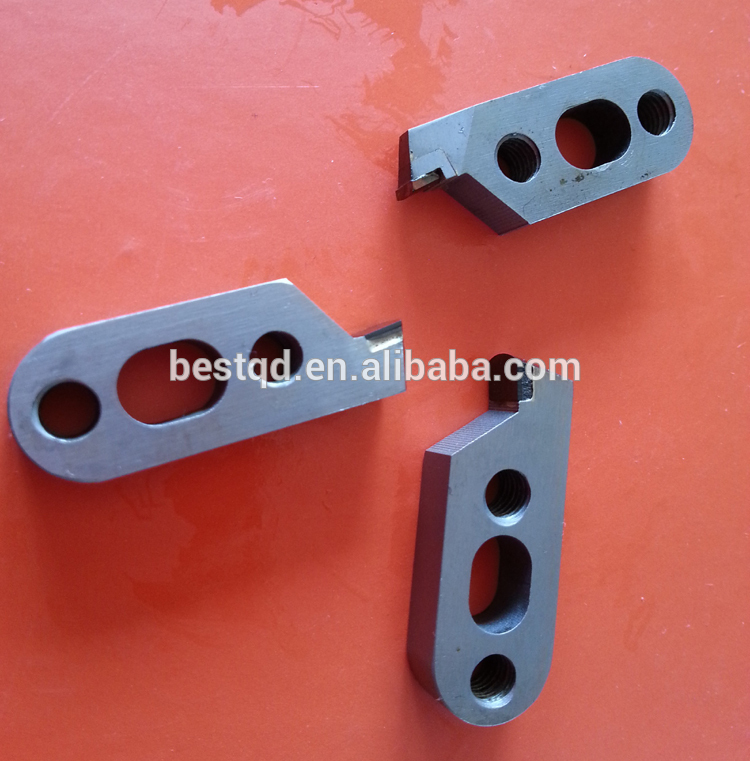

3) Diamond Cutters

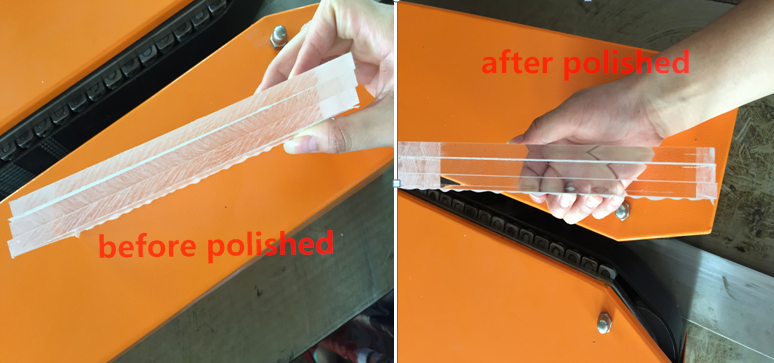

5. Samples polished by the machine

5.Warranty

2 years dating from you receiving the machine.

During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.
