Condition:

New

Type:

Thermoforming Machine

Plastic Type:

Including but not limited to Acrylic, ABS, PVC etc

Product Type:

Acrylic Sign, letter and light box

Automatic:

Yes

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST or OEM

Model Number:

BT-1600V

Voltage:

3 phase AC380V+/-10%

Power(W):

13kW

Weight:

1600kg

Dimension(L*W*H):

1600*1400*2300mm

Certification:

CE

After-sales Service Provided:

Overseas third-party support available

Name:

Acrylic Vacuum Forming Machine

Model No.:

BT-1600V

Application:

Thermoforming Acrylic sign, letter and light box

Suitable material:

Including but not limited to Acrylic, ABS, PVC etc

Warranty:

2 Years

Forming area:

1400*1200mm

Max. shaping depth:

200mm

Max. material thickness:

8mm

Oven power:

9kW

Machine overall power:

13kW

Packaging & Delivery

Packaging Details

single mold sucking acrylic vacuum forming machine Safe package for exporting

Delivery Time

10 days after deposit is received

China Alibaba single mold sucking acrylic vacuum forming machine

Dear customer,

   Thank you for visiting our website.

   We are professional manufacturer of Acrylic Vacuum Forming Machine and other AD sign equipment since 2008. This machine is mainly used to thermoforming Acrylic sign, acrylic letter and light box. There are 3 ready models for your selecting. Special model can be customized according to clients exact demand.

   Please kindly contact us by e-mail, or skype or WhatsApp or telephone so that we can provide professional guide and save your valued time.

                                                                                                                         Thank you!

Picture show:

Specification:

Application:

1.The machine is mainly used to make Acrylic Signs, Acrylic Letters, and Acrylic Light Box.

2.Applicable material including but not limited to Acrylic, ABS, PVC etc.

3.It is a useful and necessary and high efficiency equipment for Outdoor and Indoor Advertising making shop.

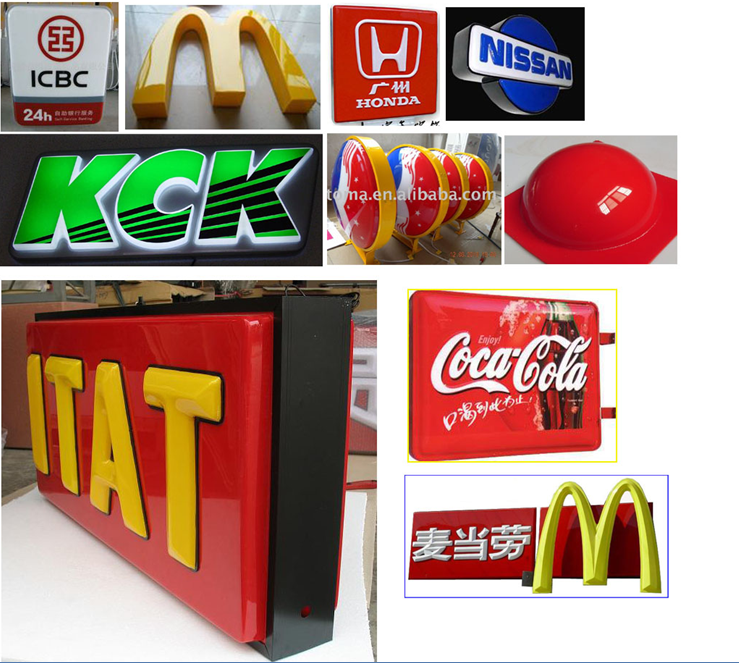

Samples:

Technical feature:

1. The machine size is small, just require a small working room.

2. It is a high integrated equipment with function of heating and softening, vacuum forming, blowing forming and compress forming.

3. Strong hydraulic lift system provide the machine with enough working pressure.

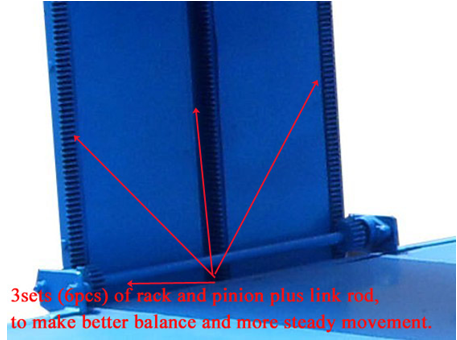

4. The machine is equipped with 3sets of Gear Rack And Pinion systemat each side, 6sets totally. Furthermore, there is a Link Pole between the 2 outside gear racks, it is useful to balance the movable board.

The above advantages of our machines make the movable board up and down more steadily, so the acrylic work piece made by the machine is higher quality and seldom defective goods created.

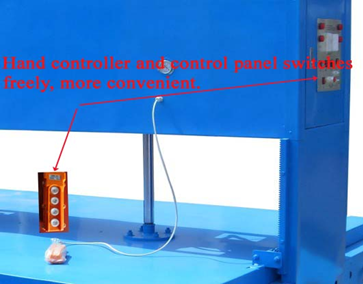

5. The machine is equipped with Control Panel and Hand Controller, both of them can control the machine. With the mobile Hand Controller, the working process can be observed in 360 degree full view by the user. Especially for the machine with vacuum forming and blowing forming function, the mobile hand controller is more useful. Take blowing forming for example, when you press down the "blow" button on the control panel, the gas flew can not be controlled according to actual forming status. But if you control by hand controller, when you press the "blow" button on it, the gas come out. When you find the product is finished properly, just need to release the button and gas will stop.

 6. The heating oven is divided by 2 separate parts, they can work together or individually according to the material size.

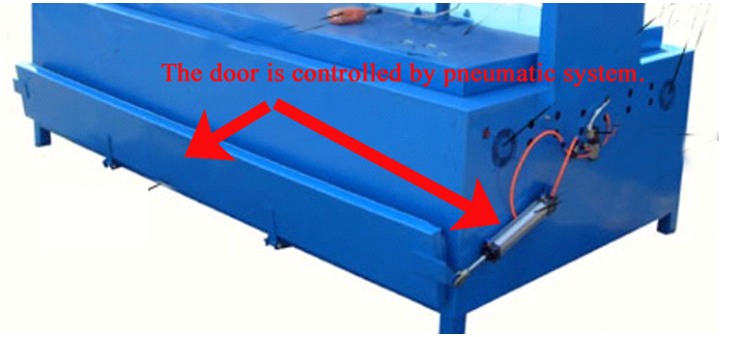

7. The oven door is controled by pneumatic system, save working time and prevent heating escaping efficiently.

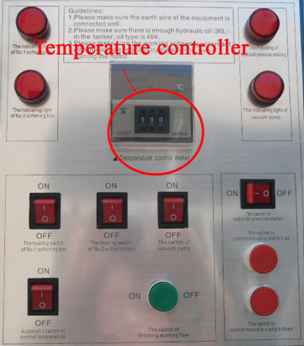

8. High precision temperature control system, digital display and will alarm automatically.

9. Special full steel structure and double roof beams make sure longer working life and more steady operation.

10. Our machine is equipped with 2pcs exhaust fans at each side, 4pcs totally.

Furthermore, we designed exhaust heating holes at 3 sides (right side, left side and back of the machine).

They are useful to exhaust extra heat created during the acrylic sheet is heated.

If extra heat can not be exhausted in time, it will be transferred to the worktable, so slower workpiece cooling speed or result in defective workpiece.

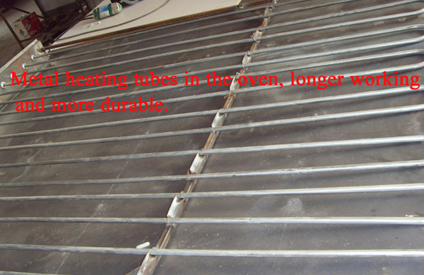

11. Our machine is equipped with metal heating tubes. Comparing with quartz heating tube, they are more durable and longer lifespan.

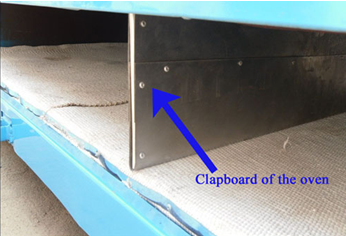

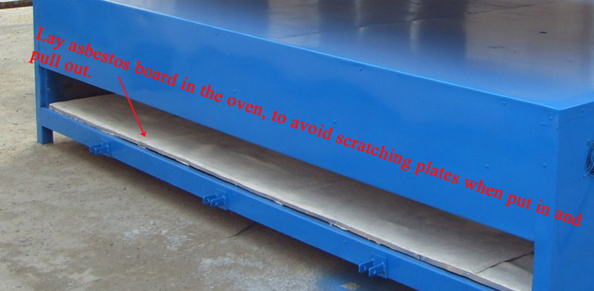

12. We cover the oven bottom with asbestos sheet to prevent scratching acrylic sheet when you put it and put out of the oven. The asbestos sheet is high grade fire proof material with high temperature-resisting characteristics. Except our company, now most of other manufacturers don’t use asbestos sheet any more so to save their cost.

Warranty and after sale service:

1.2 years warranty dating from buyer receiving the machine.

2.During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.

3.When warranty period is expired, if some part is broken or damaged, you can buy new from our company.

4.We provide you free cost technical supporting during the whole lifespan of the machines.
