Factory Free sample Small Cnc Router - 3000*2000 Large Format Automatic Acrylic Vacuum Molding Machine For Outdoors Acrylic Sign Acrylic Letter and Light Box Making – YUANNUO MACHINERY

Condition:

New

Type:

Thermoforming Machine

Plastic Type:

Acrylic

Product Type:

Acrylic Sign and Light Box

Automatic:

Yes

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-3200V

Voltage:

AC380V+/-10%

Power(W):

18000

Weight:

2200kg, 2200kg

Dimension(L*W*H):

335X230X230cm

Certification:

CE, ISO9001:2008

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Acrylic Vacuum Forming Machine

Max. working width:

2000mm

Max. working length:

3000mm

Power:

18kw

Power Supply:

AC380V+/-10% (3phase 4 lines)

Max. Shaping Depth:

100mm

Functions:

press & blow & suction functions

Dimension:

335x230x230cm

Certificate:

CE, ISO9001:2008

Packaging & Delivery

Packaging Details

Delivery Time

10 days after receiving deposit

1. Specification:

2. Application:

The machine is mainly used in advertising industry, to make acrylic letter, acrylic signs, light box etc.

3. Technical Feature:

1) It is a high integrated equipment with funciton of heating and softening, vacuum suck-forming, blow-forming and compress-forming.
2) Strong hydraulic lift system provides the machine with enough working pressure.

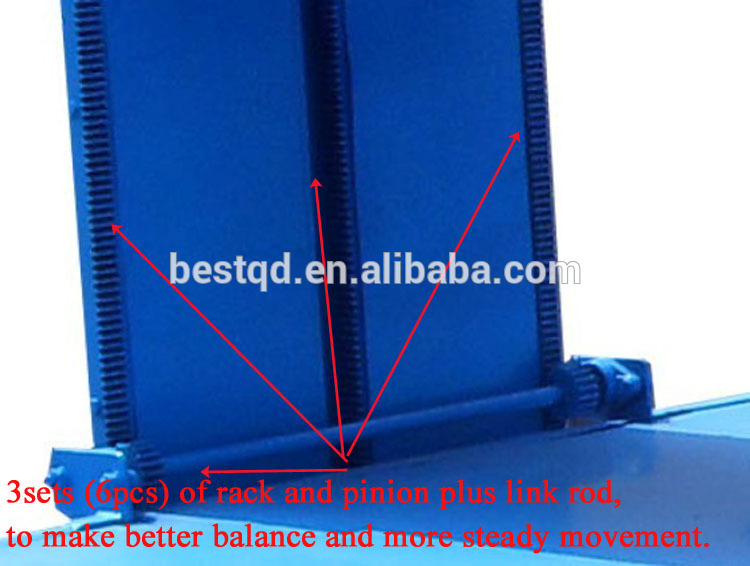

3) The machine is equipped with 3sets of Gear Rack And Pinion system at each side, 6sets totally. Furthermore, there is a Link Pole between the 2 outside gear racks, it is useful to balance the movable board.

The above advantages of our machines make the movable board up and down more steadily, so the acrylic work piece made by the machine is higher quality and seldom defective goods created.

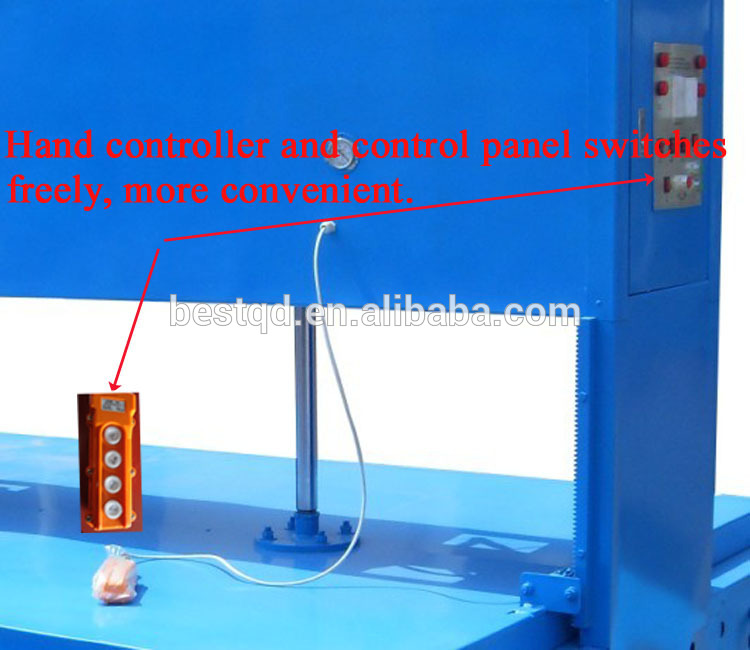

4) The machine is equipped with Control Panel and Hand Controller, both of them can control the machine. With the mobile Hand Controller, the working process can be observed in 360° full view by user. Especially for the machine with vacuum suck- forming and blow-forming function, the mobile hand controller is more useful. Take blow-forming for example, when you press down the "blow" button on the control panel, the gas flew can not be controlled according to actual forming status. But if you control it by hand controller, when you press the "blow" button on it, gas comes out. When you find the product is finished properly, just need to release the button then gas will stop.

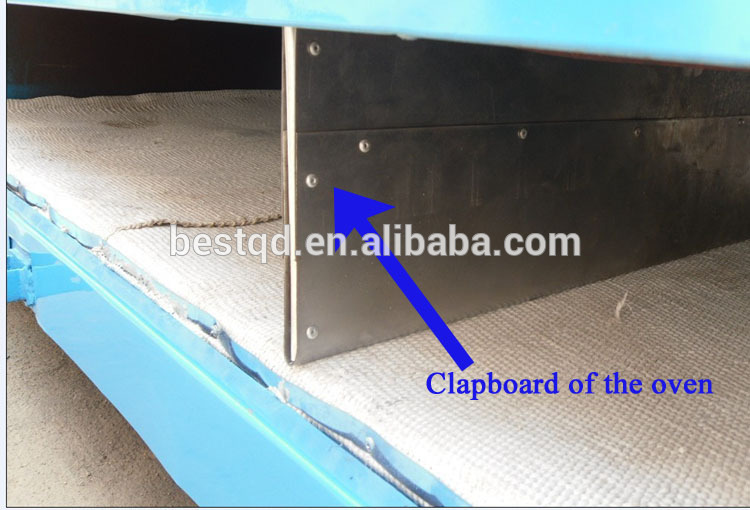

5) The heating oven is divided by 2 separate parts, they can work together or individually according to work piece size.

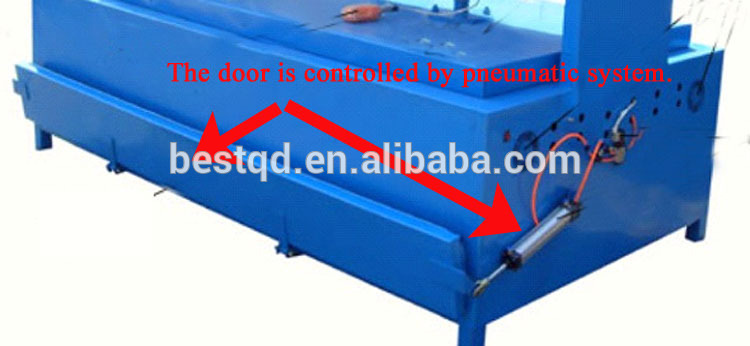

6) The oven door is controled by pneumatic system, it saves working time and prevents heating escaping efficiently.

7) High precision temperature control system, digital display and will alarm automatically.

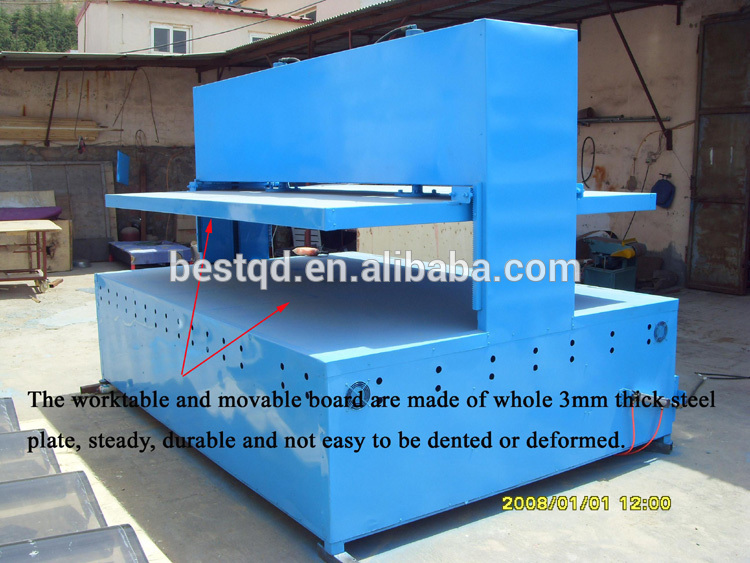

8) Special full steel structure and double roof beams make sure longer working life and more steady operation.

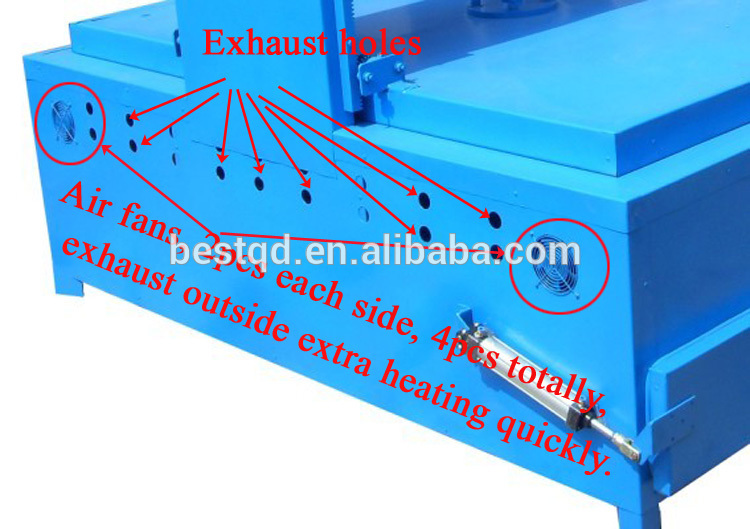

9) Our machine is equipped with 2pcs exhaust fans at each side, 4pcs totally.
Furthermore, we designed exhaust heating holes at 3 sides (right side, left side and back of the machine).
They are useful to exhaust extra heat created during the acrylic sheet is heated.
If extra heat can not be exhausted in time, it will be transferred to the worktable, so slower workpiece cooling speed or result in defective workpiece.

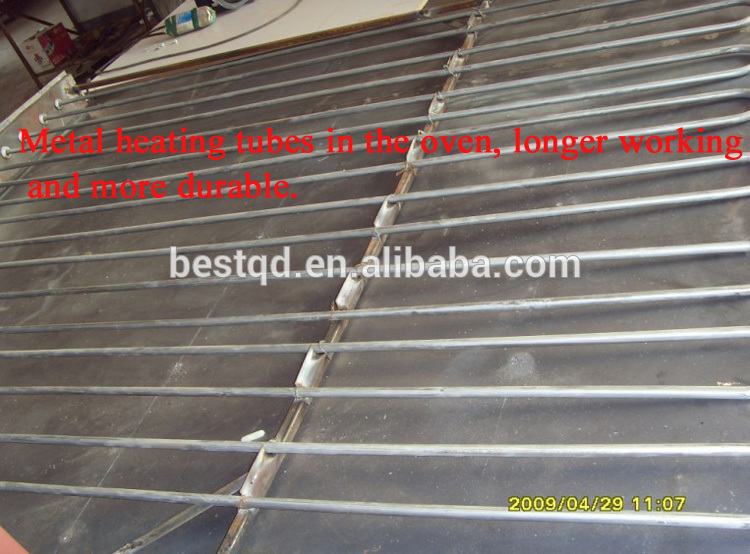

10) Our machine is equipped with metal heating tubes. Comparing with quartz heating tube, they are more durable and longer lifespan.

11) We cover the oven bottom with asbestos sheet to prevent scratching acrylic sheet when you put it and put out of the oven. The asbestos sheet is high grade fire proof material with high temperature-resisting characteristics. Except our company, now most of other manufacturers don’t use asbestos sheet any more so to save their cost.

5. Samples polished by the machine:
