factory low price Cnc Bending Machine - 24 600mm 3-tubes Plastic Sheet Bending Machine To Bend V-shape Angles and Radian for Outdoors Advertising – YUANNUO MACHINERY

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-600B

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Plastic Sheet Bending Machine

Brand:

BEST

Max. Bending Width:

600mm, 24"

Max. Bending Thickness:

10mm directly. Thicker sheet should be milled v-groove first

V-shape Range:

30-180 degree directly, 0-30 degree manually

Heaters Q'ty:

3pcs parallel, can bend radian

Heating Mode:

Non-contact infrared heating

Power Supply:

AC220V+/-10%

Dimension (L*W*H):

120*50*110cm

OEM:

Yes

Packaging & Delivery

Packaging Details

Delivery Time

7 days after deposit or original L/C is received

Name:

Advanced Acrylic Bending Machine at Competitive Price

Application:

It is widely used to bend acrylic  (organic glass, PMMA), plexiglass, plastic, PVC, PC, PETG, PP, ABS etc.

The V-shape can be adjusted frm 0-180 degree. Its a necessary machine for advertisement industry.

Feature:

1. Digital controlled, easy, convenient and safe operation.

2. Manual Working Status and Automatic Working Status for choosing from free. When you bend the 1^st workpiece, we recommend the Manual Working Status so to record heating time. To bend the next workpieces, just need to preset the heating time and angle value, when time is up the machine will bend automatically.

3. It is equipped with Angle Meter, the bending angle can be adjusted through rotate the hand wheel.

4. Non-contact infrared heating mode, fast soft and keep perfect surface of heating part.

5. The working voltage is adjustable according to material different thickness and melting character, so the material can be softened evenly.

6. The machine and worktable are cooled by water. It will alarm automatically when water temperature is up.

7. The machine is equipped with electricity leakage protective device, together with earth wire, double safe insurance.

8. Equipped with back ruler, keep highest uniformity of mass production.

9. It can bend V-shape angle from 0-180°,the max working length is up to 3050mm.

Specification:

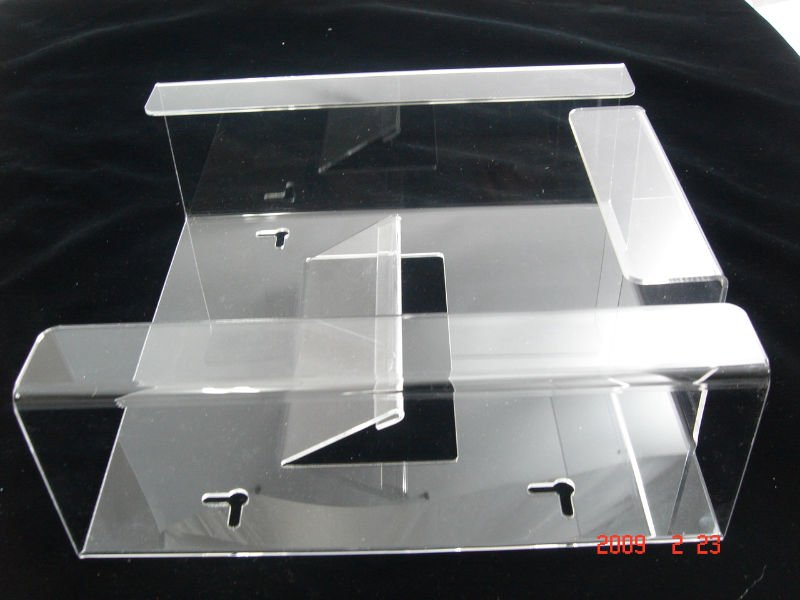

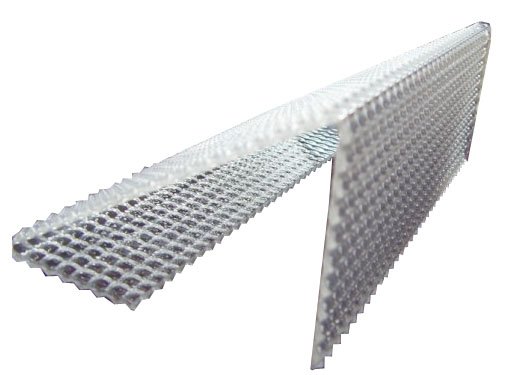

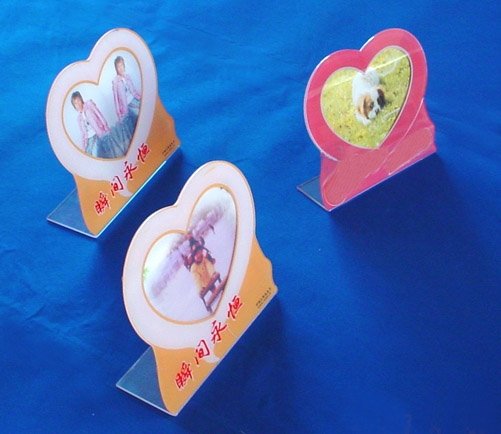

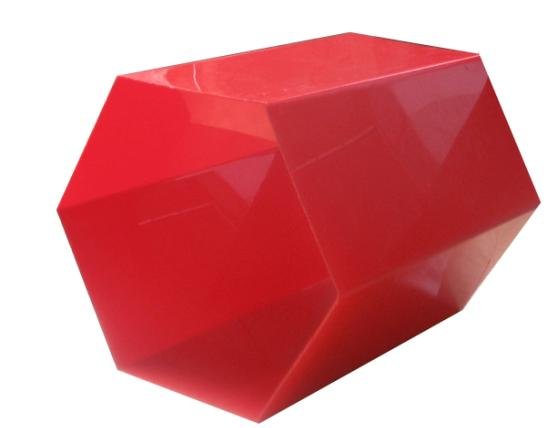

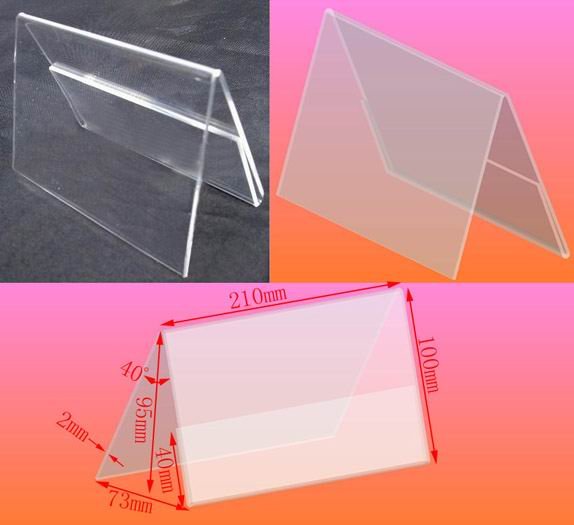

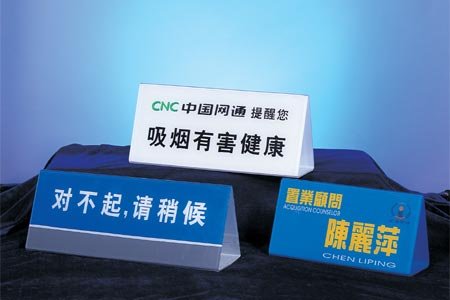

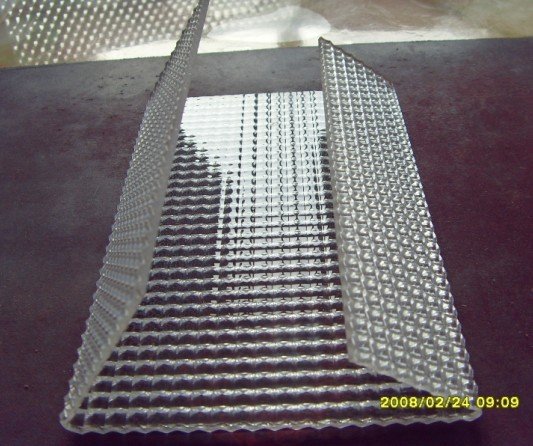

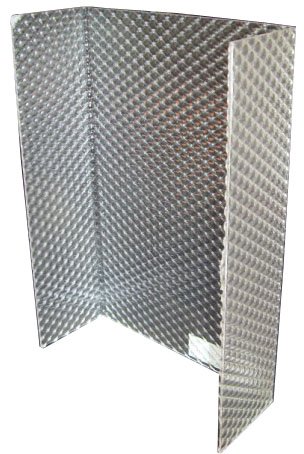

Samples made by the machine:

Warrany:

12 months dating from buyer receiving the machine.

During warranty period, if some part is broken or damanged due to manufacturing defect, we will provide new one to replace by free cost and free shipment.

When warranty period is expired, if some partis broken or damaged, you can buy new from our company.

After-sale Service:

We will provide buyer with technical supporting free cost during the whole lifespan of the machine.

Packing
