Factory Price channel letter geomembrane PVC bending machine

Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-600B/1200B/1800B/2400B/3050B

Machine Type:

Hot Bending

Raw Material:

Flat sheet

Material / Metal Processed:

Plastic

Power:

Electric and Pneumatic

Automation:

Automatic

Extra Services:

Heat and soft plastic plate

Certification:

CE

After-sales Service Provided:

Overseas third-party support available

Model No.:

BT-600B/1200B/1800B/2400B/3050B

Bending Area (L*W):

L:600mm-3050mm, W:limitless

Maximum Bending Thickness:

10mm

Heater Type:

Infrared non-contact Quartz Heating Tube

Number of Heating Tube:

3pcs

Gross Power:

1kW/1.5kW/2kW/3kW/3.5kW

Power Supplied:

AC220V+/-10% 50-60Hz

Package Dimension (L*W*H):

Length:1200mm/1750mm/2400mm/3000mm/3650mm, W:550mm. H:1150mm

Weight:

55kg/150kg/200kg/260kg/300kg

Certificate:

CE

Packaging & Delivery

Packaging Details

Export standard ffree fumigation wooden case

Delivery Time

5 days after receiving deposit

 Factory Price channel letter geomembrane PVC bending machine

Picture show:

Specification:

Application:

It is widely used to bend hard plastic sheet, including but not limited to acrylic (organic, PMMA), PC, PVC, PETG, PP, ABS etc. V-shaped angle bending range is 0-180°. Max. circular arc diameter is 30mm. It is a necessary equipment for AD sign products making industry. Proper for sample making and mass production.

Samples as below:

Technical Feature and Advantage:

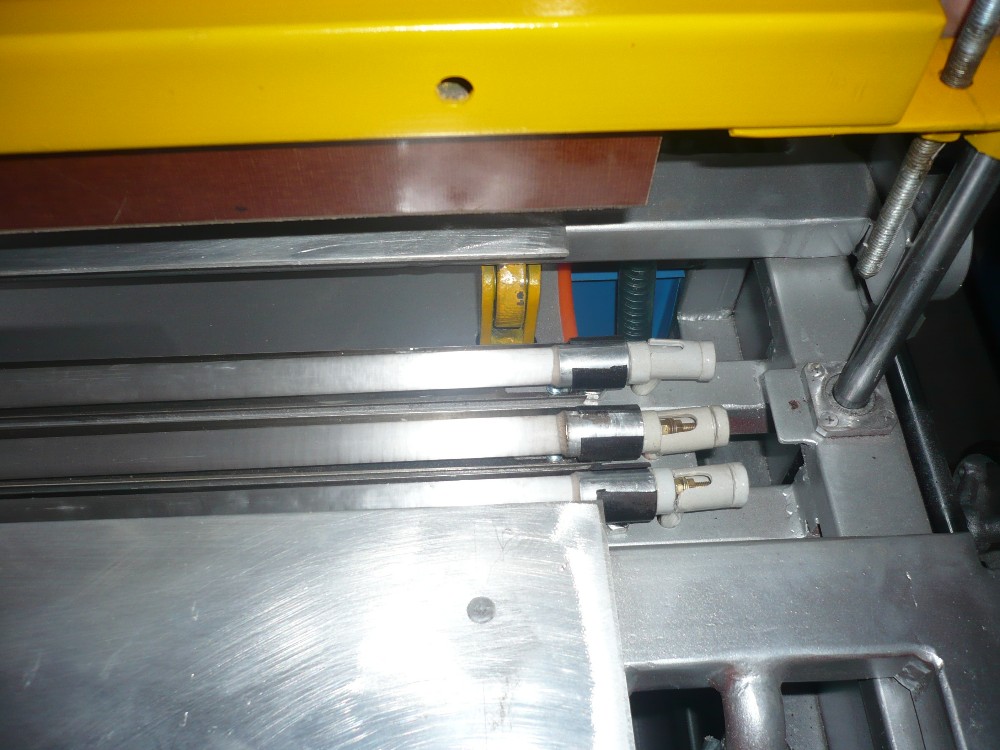

1) Comparing with other model, this model is equipped with 3pcs of parallel heating elements, so its heating area is larger. Besides V-shape angle in range of 0-180°, through special mould we made, it also can bend small circular arc (max. diameter 30mm).

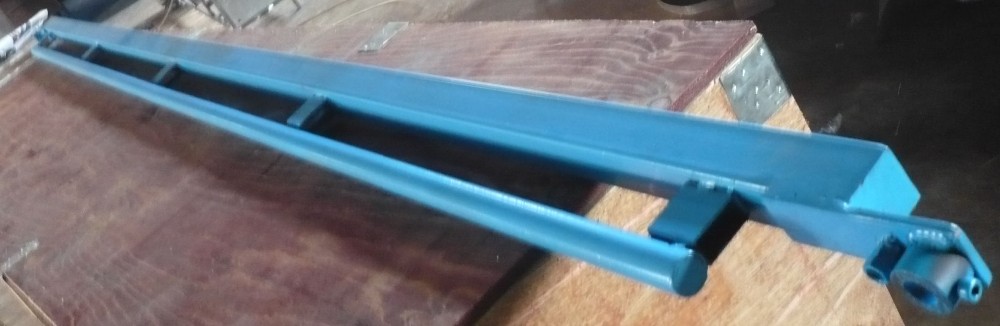

Special mould for arc bending:

2) Digital controlled, easy, convenient and safe operation.

3) 2 working modes for selecting freely. Manual working mode for your testing the 1st piece of plate and record exact heating time. For next same pieces, you can use Automatic working mode, the machine will bent automatically when time is up to the value we set in advance, save labor cost and high working efficiency.

4)It is equipped with Angle Meter, the bending angle can be adjusted and set accurately.
5) The working voltage is adjustable according to material different thickness and melting characterisitics, so the mateiral can be heated and softened evenly.
6) Non-contact infrared heating mode, fast heating and no burnt.
7) Cooled by water. It will alarm automatically when water temperature is over 50℃.
8) Electricity leakage protective device is equipped, combined with earth wire, double safe guaranty.
9) Max. bending length is 3050mm.

Warranty:

1. 2 years dating from buyer receiving the machine.

2. During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.

3. When warranty period is expired, if some part is broken or damaged, you can buy new from our company.
