Factory Promotional Cnc Router 3 Axis - New Arrival 4-Angles Manual Acrylic Bending Machine – YUANNUO MACHINERY

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-2400BS

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Acrylic Bending Machine

Model No.:

BT-2400BS

Bending width:

0-2400mm

Bending thickness:

0-8mm. If it is thicker than 8mm, needs milling V-groove in advance

Angle Formed Per Time:

4-angles meantime

Bending Model:

Manually

Max. distance between 2 angles:

530mm.

Min. distance between 2 angles:

120mm

Heater's power:

1.5kw/pc*2pcs

Current:

15A

Processing Type:

Plastic Thermoforming Machine

Voltage:

AC220V+/-10%

Product Type:

Plastic Sheet

Certification:

CE, ISO9001:2008

Power(W):

3KW

Condition:

New

Dimension(L*W*H):

3050X1200X1050mm, 3.84CBM

Warranty:

24months

Weight:

300kg

Packaging & Delivery

Packaging Details

Delivery Time

7 days upon receiving deposit

Acrylic Bending Machine

Name:

New Arrival 4-Angles Manual Acrylic Bending Machine

Feature:

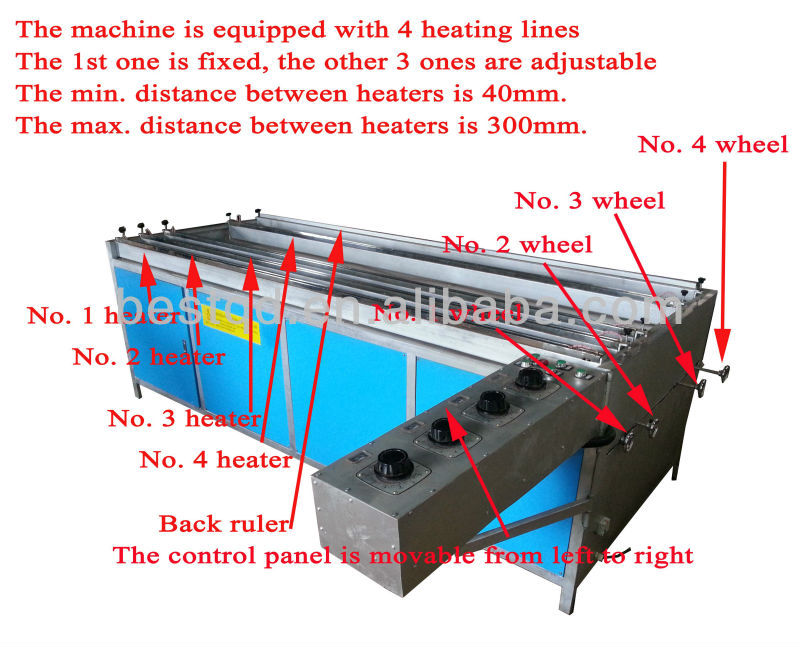

The machine has 4 heating lines so it can bend 4 angles meantime, therefore 4-times of working efficiency than common single line bending machine. The below video (link to www.youku.com) will show you about it:

https://v.youku.com/v_show/id_XNTg5NTg5MTY0.html

Application:
It can bend acrylic (organic, PMMA, plexiglass), plastic, PC, PVC, PETG, PP, ABS sheet to V-shape angle.

Specification Illustration:

Working Video Link to www.youku.com:

https://v.youku.com/v_show/id_XNTg5NTg5MTY0.html

On show picture:

Warranty and after sale service:

24 months dating from buyer receiving the machine.
1) During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.
2) When warranty period is expired, if some part is broken or damaged, you can buy new from our company.

3) We provide buyer with free cost technical supporting during whole lifespan of machines.

Production Time:

 5 days upon receiving 50% deposit.

Payment Terms:

1) In EXW, FOB, DDU and DDP conterms, T/T 50% deposit in advance, the balance payment should be settled before shipment.
2) In C&F and CIF conterms, T/T 50% deposit in advance, the balance payment should be settled within 1 week after buyer receiving the copy of B/L via e-mail or fax.
