Good quality Diamond Woodworking Tools - BT-1500DP Acrylic Diamond Edge Polishing Machine For Super Long Plastic Sheet At Competitive Price – YUANNUO MACHINERY

Processing Type:

Other

Condition:

New

Product Type:

Plastic Sheet

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST or OEM

Model Number:

BT-1500DP

Voltage:

AC220V+/-10% or AC380V+/-10%

Power(W):

1500

Dimension(L*W*H):

129*73*112cm

Weight:

446

Certification:

CE and testing report

Warranty:

2 years dating from you receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Acrylic Diamond Edge Polishing Machine

Model No.:

BT-1500DP

Material Application:

Plastic sheet: PP, PE, Poly, ABS, acrylic etc

Working Area (L*W):

Unlimited

Maximum Working Thickness:

80mm

Rotating Speed Of Spindle:

2000-20,000rpm

Cutting Depth:

0-0.5mm adjustable

Cutting Speed:

0-1,000mm/min (600mm/min is the best status)

Gross Power:

5.5kW

Certificate:

CE and testing report

Packaging & Delivery

Packaging Details

Delivery Time

3 days after deposit or original L/C is received

Name:

BT-1500DP Vertical Mirror Finish Acrylic Diamond Edge Polishing Machinee

Application:

In traditional plexiglass products  processing, the workers always use bench polisher or flame polisher to polishe the plexiglass surface. Its disadvantage is low efficiency, high labor cost,  large wastage but the polishing finish is not perfect.

The Diamond Edge Polishing Machine, adopts PCD tool to cut plexiglass finely so to get mirror finish surface. After polished, the products are high transparent, non discoloring, , especially perfect as light guide plate.

Main Advantages:

1. High efficiency, and low labor cost.

2. Low wastage of material.

3. High precision, the cutting thickness is adjustable from 0-0.5mm.

4. Environment friendly, no powder, low noise and low engergy.

5. Automatic polishing by machine, reduce labor injury.

Specification:

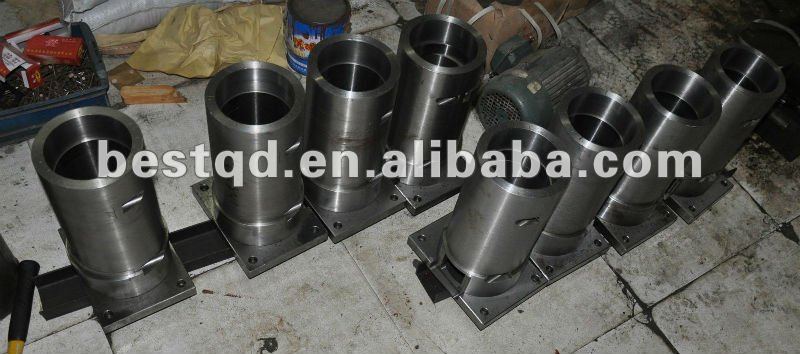

Part Picture:

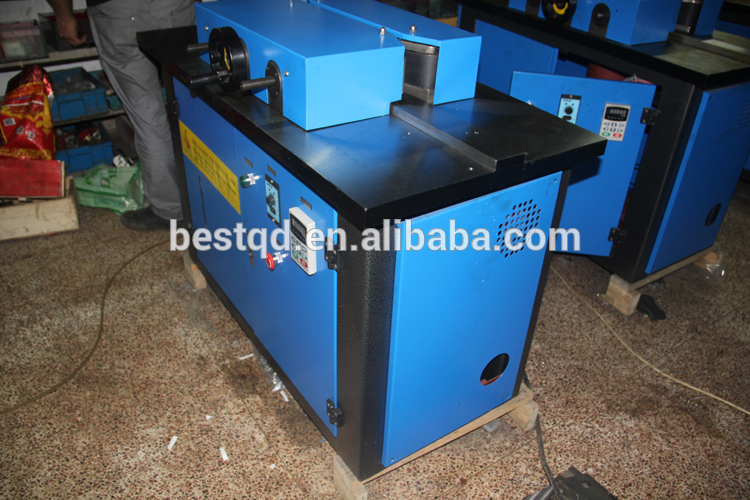

Workroom:

Package and Shipping

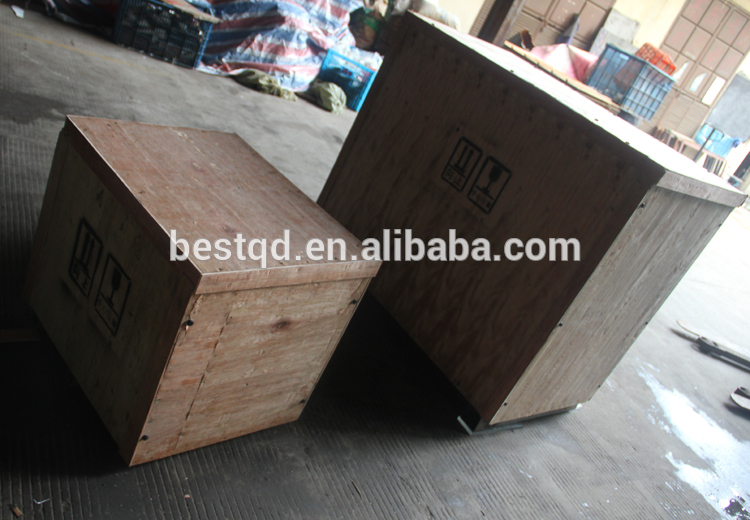

Package:

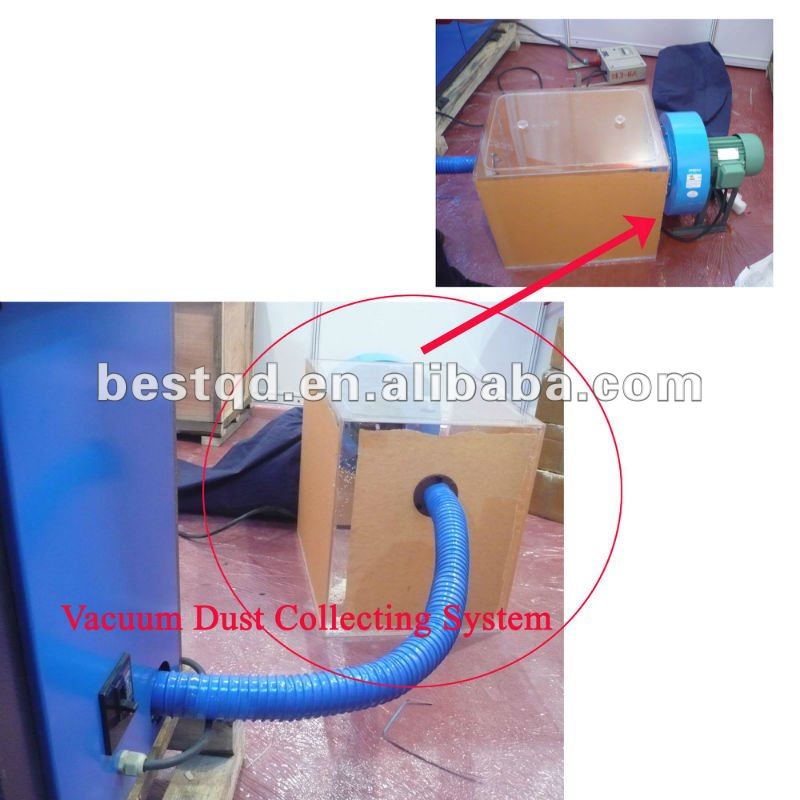

The machine and dust collector will be packed in separate free-fumigation wooden case, dimension and weight as below: Machine case (L*W*H): 132x74x117cm, 1.14CBM, 420kg

Dust Collector case (L*W*H): 72x57x66cm, 0.27CBM, 60kg

Shipping:

The machine can be shipped by sea or by air.

FOB, C&F and CIF are all available. We also can quote you all shipping cost to door (DDU or DDP).

Warranty

2 years dating from you receiving the machine.

During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.

Certifications

We have CE certificate and full set of testing report for this machine.

Company Information

Qingdao Best Industrial Co., Ltd were established in 2008. We specialize in Developing, designing, manufacturing and selling various standard and non-standard equipment. Main products including Advertising Material Processing Equipment, such as Diamond Edge Polishing Machine, Ultrasonic Spot Welding Machine, Plastic Bending Machine, Acrylic Vacuum Forming Machine, CNC Router, CNC Laser Engraving and Cutting Machine etc; Metal Plate And Metal Tube Processing Equipment, including Marking Machine On Regular and Irregular Shape Metal Accessories, CNC Plasma Cutting Machine, Oxy-Hydrogen Spot Welding Machine, Argon Welder etc.
The headquarter base in Licang District, Qingdao City, Shandong China. We have branch companies in Dezhou City of Shandong Provice and Lanzhou City of Gansu Province. Some machines are ready in branch companies too, welcome to visit and inspect the machine at your convenience.
Comparing with other suppliers, the same machine, ours quality is higher. The same quality level, ours price is more competitive. The same price level, our service is more professional and timely. Sincerely thank you for selecting Qingdao Best as your business partner, we will reward you with the best product, service and price in the world.

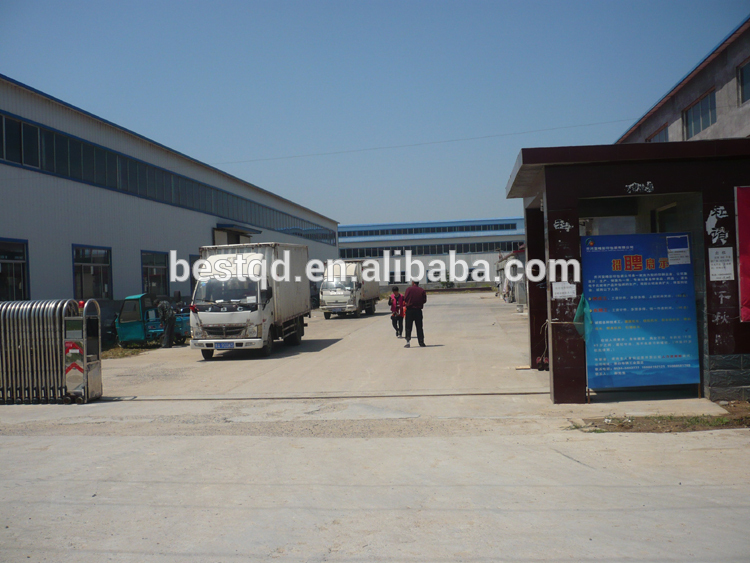

Factory:

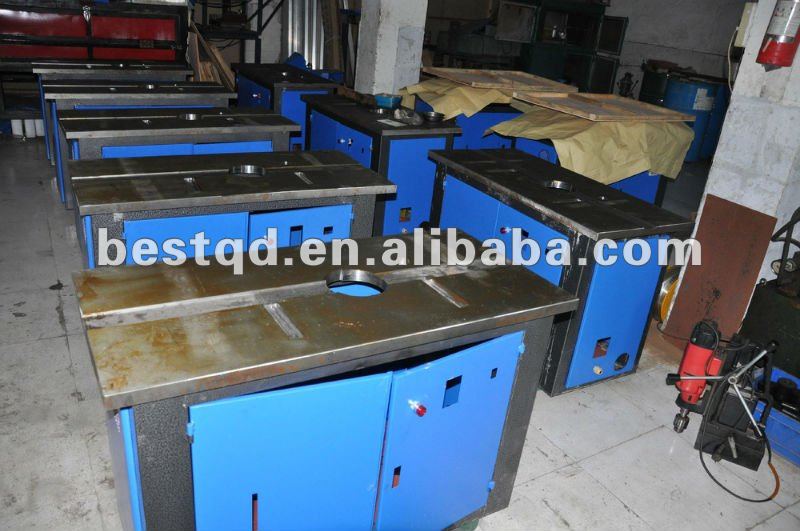

Ready machines in warehouse:

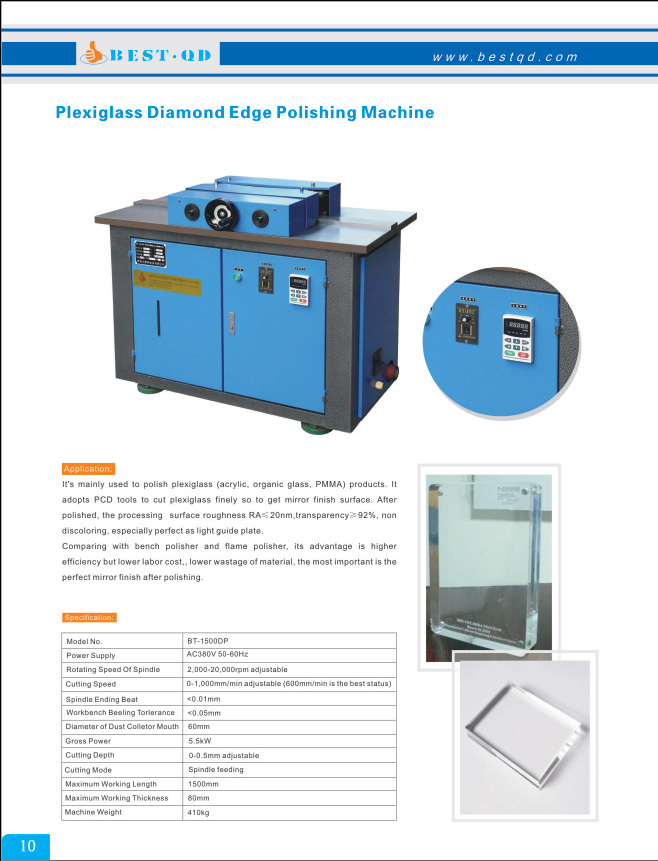

Catalogue:

Contact Us

If you have any questions, please feel free to contact us:
