- Processing Type:
- Other
- Condition:
- New
- Product Type:
- Plastic Sheet
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-1250DDP
- Voltage:
- AC380V+/-10%
- Power(W):
- less than 7.5kw
- Dimension(L*W*H):
- 3020*2390*1750mm
- Weight:
- 3500KG
- Certification:
- CE, ISO
- Warranty:
- 2 years dating from buyer receiving the machine
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Hot Selling acrylic edge polishing machine
- Model No.:
- BT-1250DDP
- Max. polish area (L*W):
- 1250*620mm
- Polish angle:
- 0 degree
- Spindle rotating speed:
- 6000-12000rpm adjustable
- Cutting speed:
- 0-1000mm/min
- Air compressed required:
- More than 0.45Mpa
- Cutting depth per time:
- 0-1mm adjustable
- Cutting mode:
- work piece feeding
- Max. polish thickness:
- 120mm
Packaging & Delivery
- Packaging Details
- Delivery Time
- 7 days after deposit or oringal L/C is received
High capability acrylic edge polishing machine
|
Model No. |
BT-1250DDP |
|
FOB Qingdao Price |
USD23800/set |
|
Power Supply |
AC380V +/-10% 50-60Hz (AC220V+/-10% is also available) |
|
Working Size (Length*Width*Thickness) |
1250*620*120mm |
|
Cutting Mode |
Work piece feeding |
|
Cutting Speed |
0-1000mm/min |
|
Cutting Angle |
0° |
|
Cutting Depth |
0-1mm adjustable |
|
Rotating Speed Of Spindle |
6,000-12,000rpm adjustable |
|
Diameter of Dust Collector Mouth |
50mm |
|
Gross Power |
≤7.5kW |
|
Compressed Air Required |
≥0.45Mpa |
|
Maximum Working Length |
1500mm |
|
Machine Dimension (L*W*H) |
3020*2390*1750mm |
|
Package Dimension (L*W*H) |
3300*2280*2200mm (one part will be disassemble so to fit container width) |
|
Weight |
3500kg |
1. The double-sided complete automatic diamond polisher , can polish 2 parallel edges synchronously, high working efficiency and high working precision.

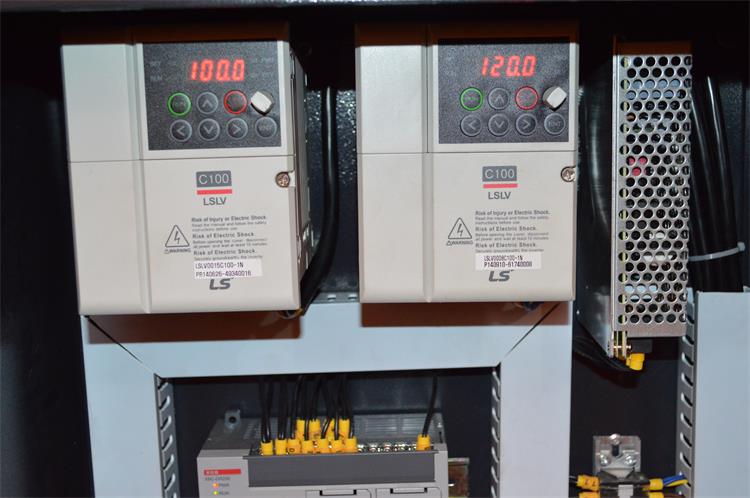

2. The machine is equipped with LS brand PLC control system and servo motors made in South Korea, top grade in the world. Cutting precision <0.05mm. High performance, high precision, high efficiency, save labor cost.

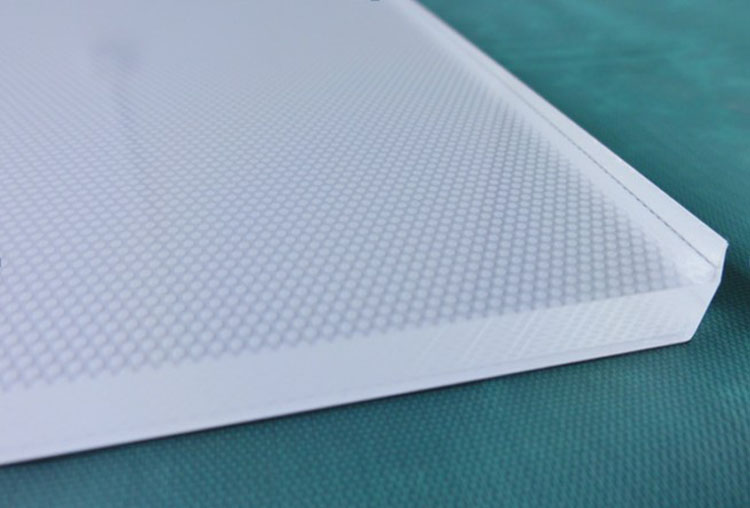

3. It’s especially necessary for Light-guide Plate producing.
1.2 years dating from buyer receiving the machine.
2.During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide you with new one free cost to replace.
3.When warranty is expired, if some part is broken or damaged, you can buy new from our company.
