High Efficiency hydrogen generator Oxy-hydrogen BT-200 High Quality hydrogen generator Gas Generator

Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-200Hydrogen Oxygen

Usage:

Hydrogen and Oxygen

Production Rate:

200L/hour (adjustable)

Voltage:

AC220V 3A /AC110V 6.2A

Power(W):

800W

Weight:

17kg

Dimension(L*W*H):

530*300*540mm

Certification:

CE

Warranty:

12 months dating from you receiving the machine

After-sales Service Provided:

Overseas third-party support available

Model:

BT-200Hydrogen Oxygen

Power Supply and Amp:

AC220V 3A or AC110V 6.2A

Gas Output:

200L/hour adjustable

Water Consumption:

0.06L/hour

Working Pressure:

0.13-0.15Mpa

Electrolysis Tanks Quantity:

2sets

Water Replenishing Tank:

1set

Total Capacity of Electrolysis Tanks:

4200ml

Main Consumable Material:

Water

Other Material:

NaOH or KOH chemical powder

Packaging & Delivery

Packaging Details

Delivery Time

Shipped in 5 days after payment

High Efficiency hydrogen generator Oxy-hydrogen BT-200 High Quality hydrogen generator Gas Generator

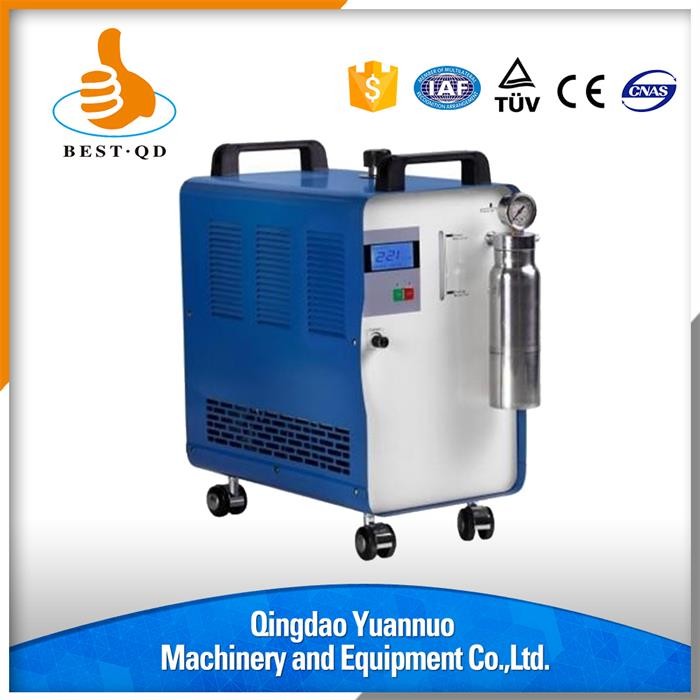

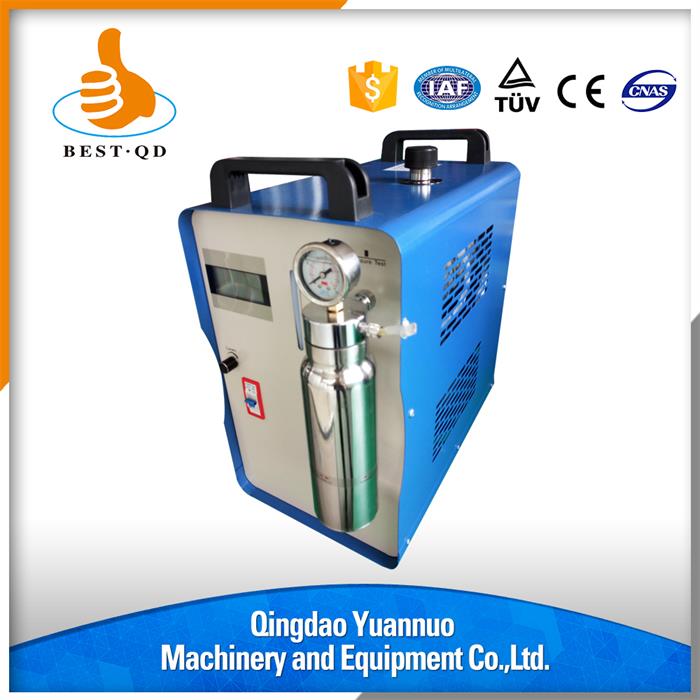

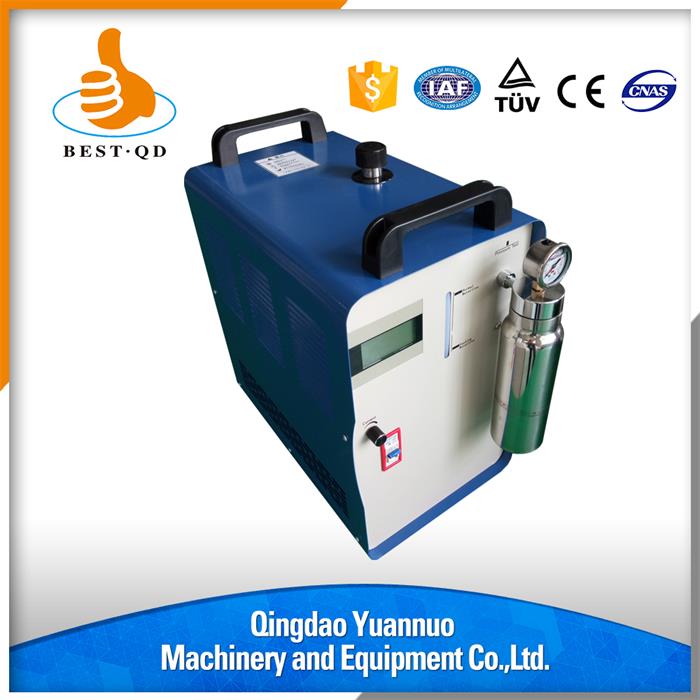

Description of BT-200hydrogen generator

Technical Specification

Pictures show

1. Feature

• The machine is equipped with all necessary accessories. After you receive it, just fill water and connect it to you local power supply. No need air-compressor or high-pressure gas container,safe storage, no explosion danger;
• After burning, just vapor comes out, no poison. The surface treated is quite clean, no residue left;
• Strong structure, long working life, durable, easy maintenance;
• The machine is equipped with safe device such as anti back-fire arrestor, filtering tank, pressure control switch etc, so it is safe and reliable;
• Flame size is adjustable. Various tips with different inner diameter for your selecting;
• Portable and easy to be take to job site.

2. Application

The machine is widely use to jewelry making, motor making, advertising industry, dental and optic lab etc.

To weld casting, color metal and other metal etc. Melt and weld electron, motor, jewelry, glass, quartz, wax mold, dental mold and special material, as well as enameled wire, annealing, quenching, dental processing, seal injection bottles, woodworking surface treatment etc.

Recently, Super Luminous Words are quite popular in advertising field. But the aluminium frame welding becomes a pain of makers. The hydrogen generator Welding Machine has resolved this problem for you perfectly.

Comparing with Laser Welding Machine, the hydrogen generator Welding Machine’s main advantages as below

• Much lower price;
• Welding speed is higher;
• Firmer welding spot;
• Solder joints nice appearance;
• No need polishing alumimium plate before welding, save time and labor cost;
• Laser Welding Machine’s main consumable parts are laser tube and lens. The hydrogen generator Welding Machine main consumalbe material is water. Low production cost.

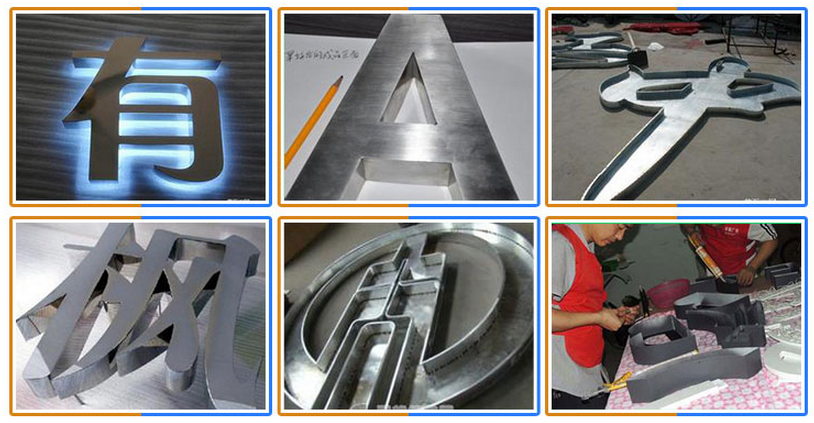

Super Luminous Words Welding samples as below:

3. Configure

• SCM technology, multiple teams control program, to meet various demand for different gas generation rate, LCD screen indicate.
• BT-200hydrogen generator is equipped with 2teams of electrolysis tanks.
• They work automatically according to different gas generation demand. The 2 linkage electric tanks gauge gas generation automatically, control every tank to work or off intelligently, save energy and electronic.
• LCD digital display, gas generation is adjustable automatically, save energy and electric power.
• Humanization design, large gas generation, even if solution level decline, gas generation will not be lowed.
• Liquid level indicates evidently and accurately. When liquid level declines, just need to add water, so easy!
• New style flame torch for welding specially, flame size is adjustable smartly, super sealed. Various tips with different inner diameter for your selecting and replacing according to exact demand.
• Multiple anti back-fire device are built in the machine. High precision anti back-fire arrestor is equipped outside, so safe!
• Low energy consumption, high gas generation. Comparing with the machine with same power from other supplier, our machine gas generation is 30% more than them.

Delivery Time

• 3-5 days after payment is received.

Warranty and after sale service

• 12 months dating from buyer receiving the machine.
• During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost to replace.
• When warranty period is expired, if some part is broken or damaged, you can buy new from our company.

We provide you free cost technical supporting during the whole lifespan of the machines. If you have any questions to the above, please don’t hesitate to contact with us. Thank you for your kind attention!
