Processing Type:

Other

Condition:

New

Product Type:

Plastic Sheet

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-1350DP

Voltage:

AC380V+/-10%

Power(W):

2KW

Dimension(L*W*H):

245X121X190CM

Weight:

2000KG

Certification:

CE, ISO

Warranty:

2 years dating from buyer receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Diamond Edge Polishing Machine

Model No.:

BT-1350DP

Max. working length:

2500mm

Angle adjustable in range of:

0-60 degree

Max. polishing thickness:

100mm

LCD tourch screen brand:

LS brand made in South Korea

Origin and brand of inverters:

LS brand made in South Korea

Cutting mode:

Spindle feeding

Cutting depth per time:

0-1mm adjustable

Spindle rotating speed:

6000-9000rpma adjustable

Packaging & Delivery

Packaging Details

Delivery Time

7 days after deposit or oringal L/C is received

1. Specification:

2. Application:

The machine is mainly used to polish plastic plates, including but not limited to plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. After polished by the machine, the material cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is a necessary equipment to produce acrylic crafts, display shelf, exhibition showcase products, LGP (Light Guide Plate) etc.

3. Technical Feature:

1) Main accessories of the machine are imported from South Korea, including LS brand inverters, LS brand LCD touch screen, some parts are made in Taiwan, all of them are well-known brands in the world.

2) Horizontal type machine, clamp and fix material more conveniently, cutting is visible, comparing with vertical type machine, its working efficieny is much higher.

3) The machine is controlled by PLC program. Processing parameter can be set and adjusted according to material hardness and thickness. Easy and smart operation.

4) Polishing angle is adjustable in range of 0-60°, it can polish straight edge and tilt edge, more practical.

5)The cutting plate is equipped with high precision dial gauge, helpful to adjust cutters and achieve  perfect polishing finish.

6)Groups of clamping system, each group is controlled by 2 cylinders. The clamps can work together or individually according to material exact size. The clamp feet are sticked with anti-skidding and antiwear silicon material.

7) The two ends of worktable are open, can load unlimited long plastic plates.

8) Continuous working, no break, high working efficiency, most proper for mass production.

4. Machine details:

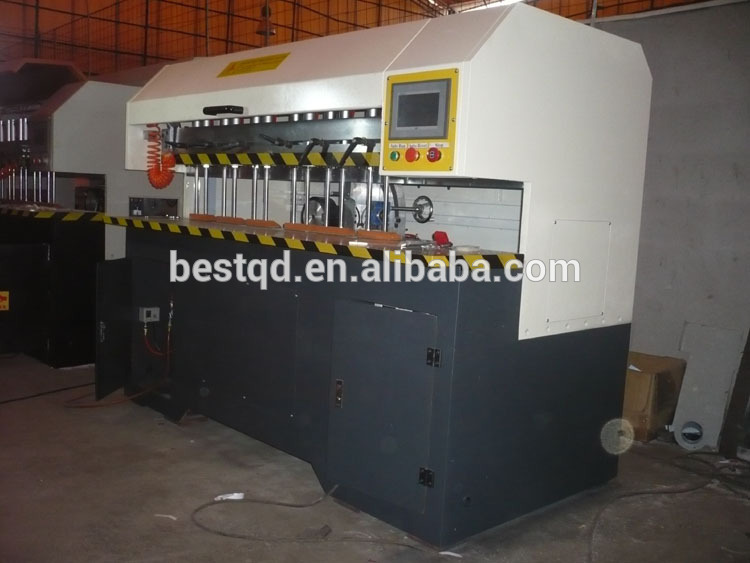

 1) Machine picture:

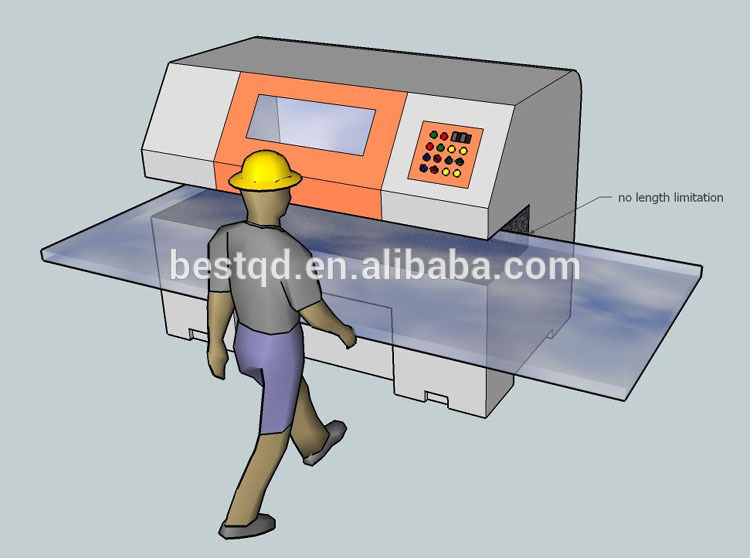

2) Open work table, can load unlimited long work pieces:

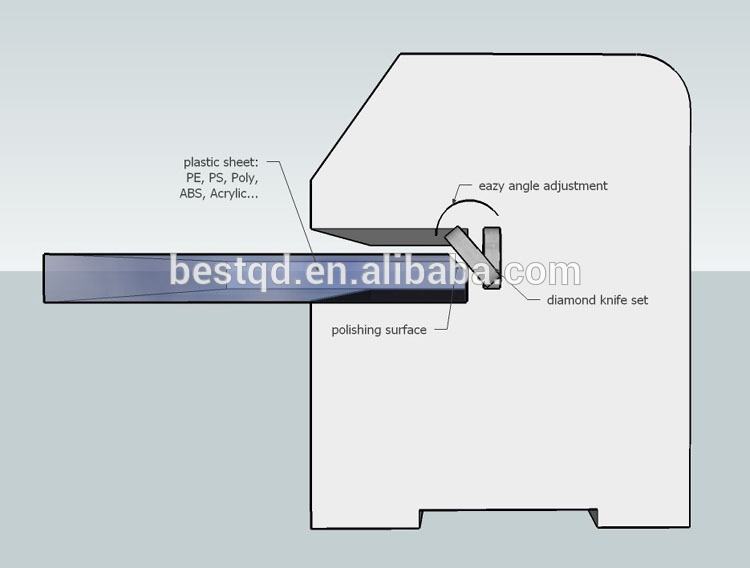

3) It can polish various material, polish angle is adjustable:

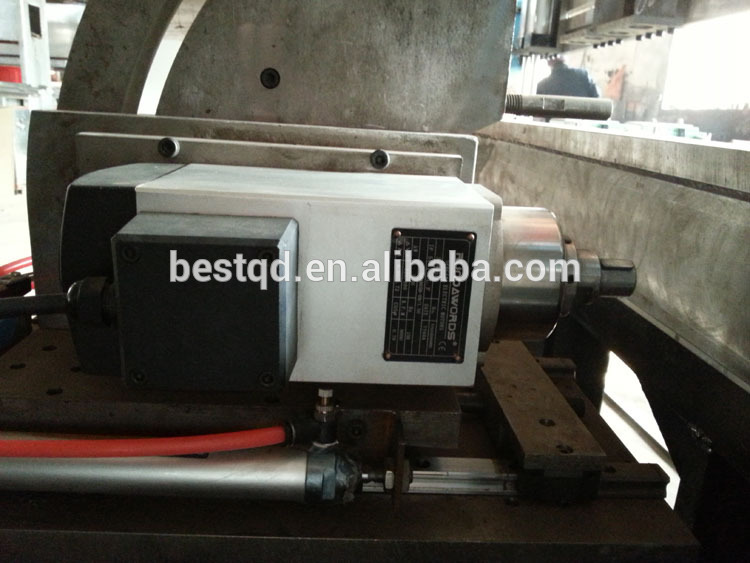

4) Air-cooling spindle motor:

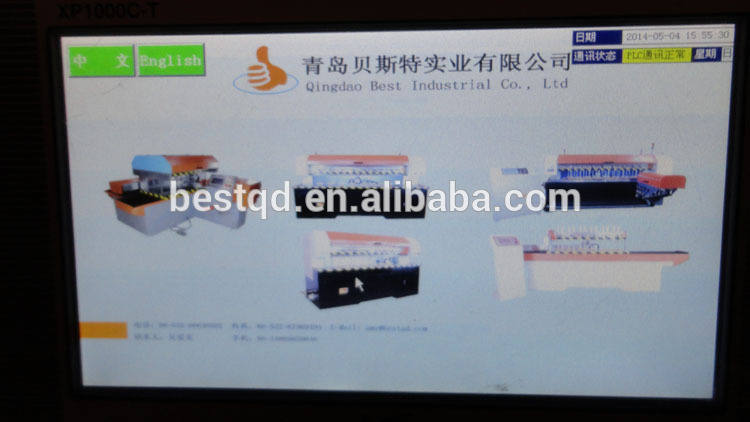

5) LS brand LCD touch screen made in South Korea

6) Parameter Setting

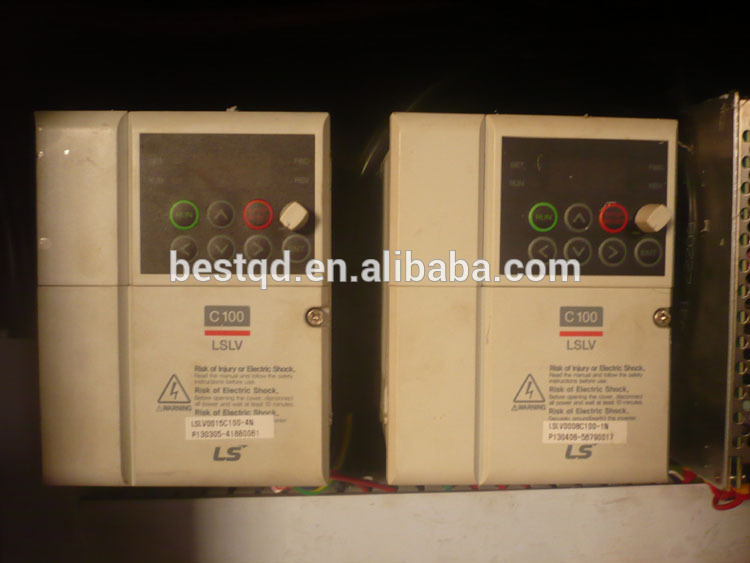

7) LS Inverters made in South Korea:

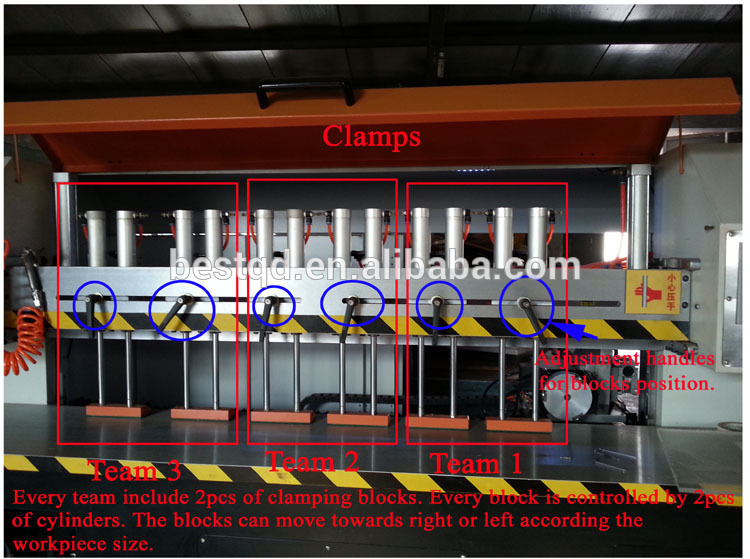

8) Clamps:

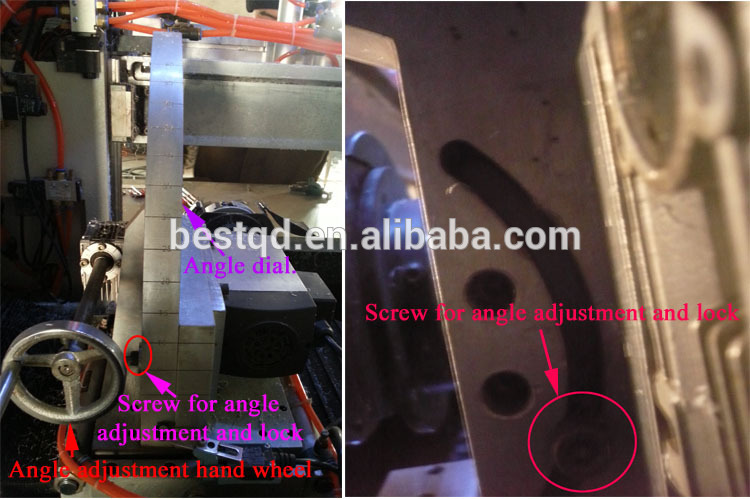

9) Polish angle ajustment:

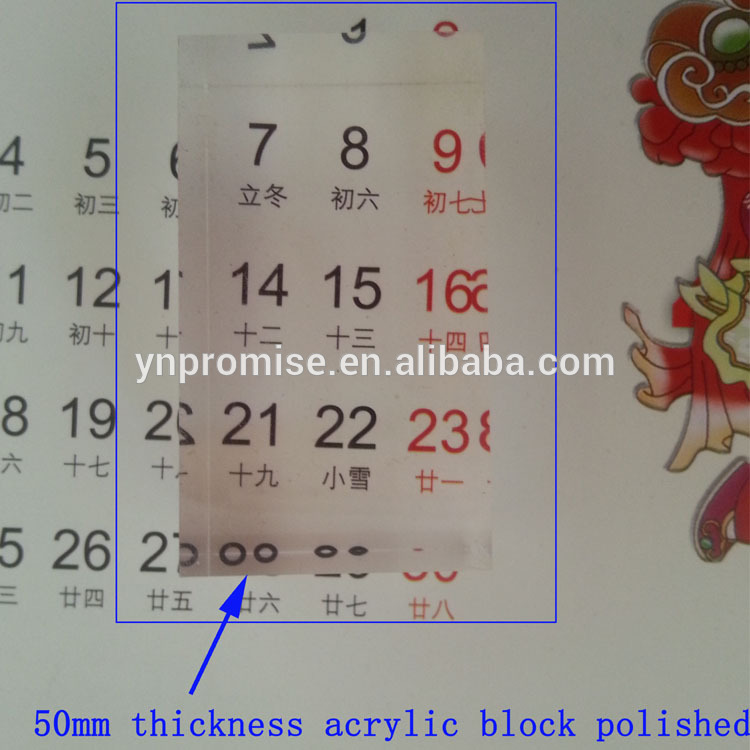

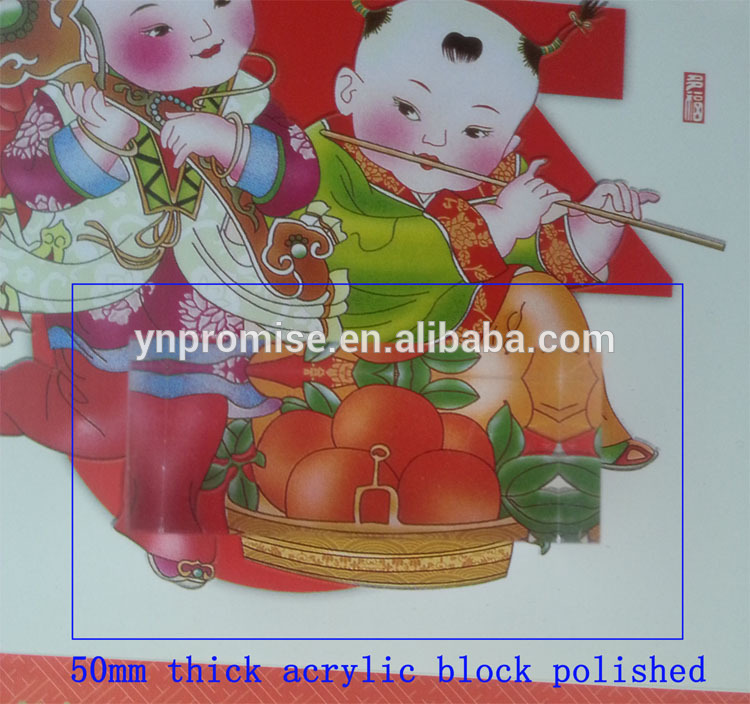

5. Samples polished by the machine:

We put the samples polished by themachine on our catalogue and calendar, the letters and pictures under the acrylic block are quite clear.
