High reputation Diamond Edge Polisher For Plastic Sheets - BT-1500DP Vertical Mirror Finish Acrylic Plastic Polishing Machine to Polish PP PE Poly ABS and Acrylic etc At Competitive Price – YUANNUO MACHINERY

Processing Type:

Other

Condition:

New

Product Type:

Plastic Sheet

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST or OEM

Model Number:

BT-1500DP

Voltage:

AC220V+/-10% or AC380V+/-10%

Power(W):

1500W

Dimension(L*W*H):

129x73x112cm

Weight:

446kg

Certification:

CE and test report

Warranty:

2 years

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Edge Polishing Machine

Model No.:

BT-1500DP

Type:

Vertical

Workpiece Shape:

Straight line

Working Area (L*W):

Unlimited

Maximum Working Thickness:

80mm

Rotating Speed Of Spindle:

2,000-20,000rpm

Cutting Depth:

0-0.5mm adjustable

Cutting Speed:

0-1,000mm/min (600mm/min is the best status)

Certificate:

CE and testing report

Packaging & Delivery

Packaging Details

<dd class="do-entry-item-val" title="The machine and dust collector will be packed in 2 separate wooden cases:
Machine case dimension: 129x73x112cm, 1.05CBM, 446kg.
Dust collector case dimension: 71x57x60cm, 0.24CBM, 50kg.”>The machine and dust collector will be packed in 2 separate wooden cases:
Machine case dimension: 129x73x112cm, 1.05CBM, 446kg.
Dust collector case dimension: 71x57x60cm, 0.24CBM, 50kg.

Delivery Time

3 days after deposit is received

Product Discription

1. Specification:

2. Application:

The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.
3. Advantage:

Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.

Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.

4. Machine details:

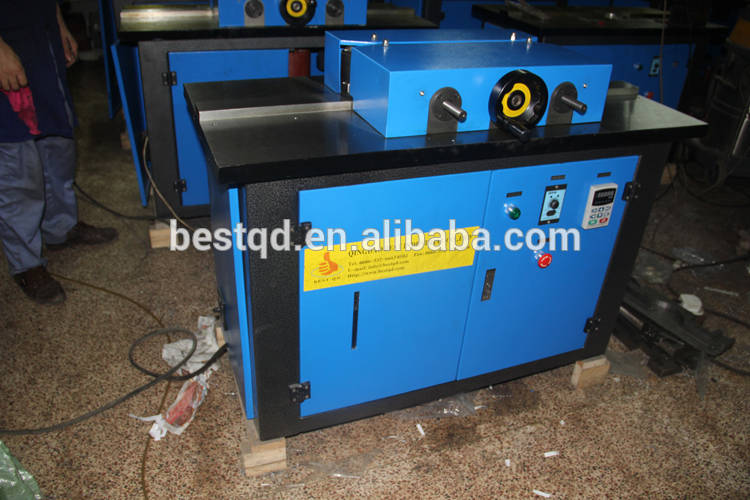

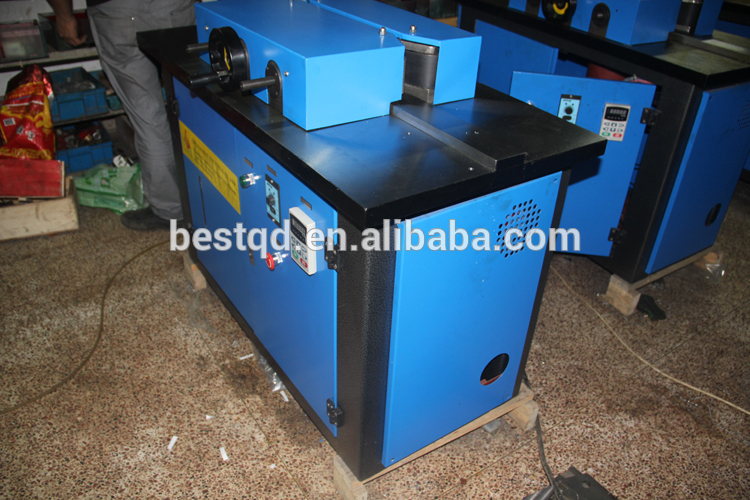

 1) Ready machines in warehouse:

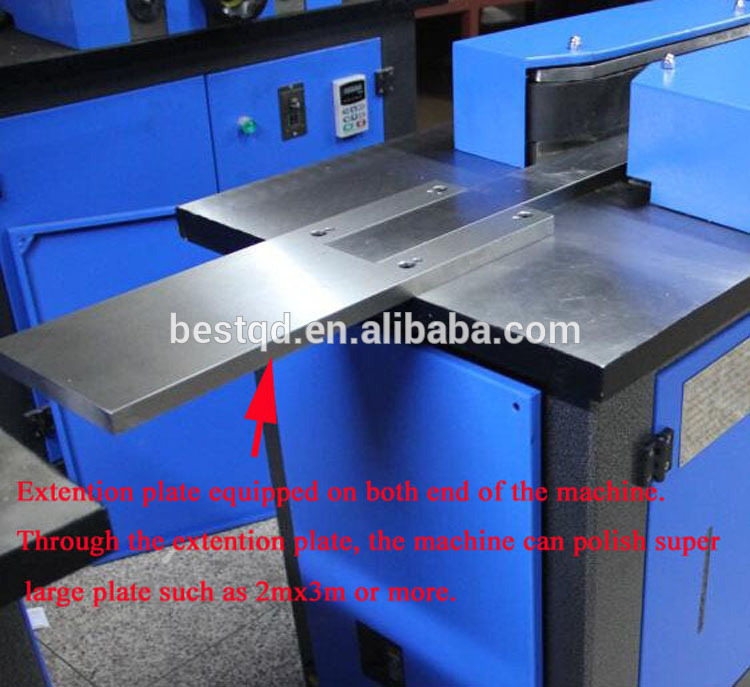

2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material:

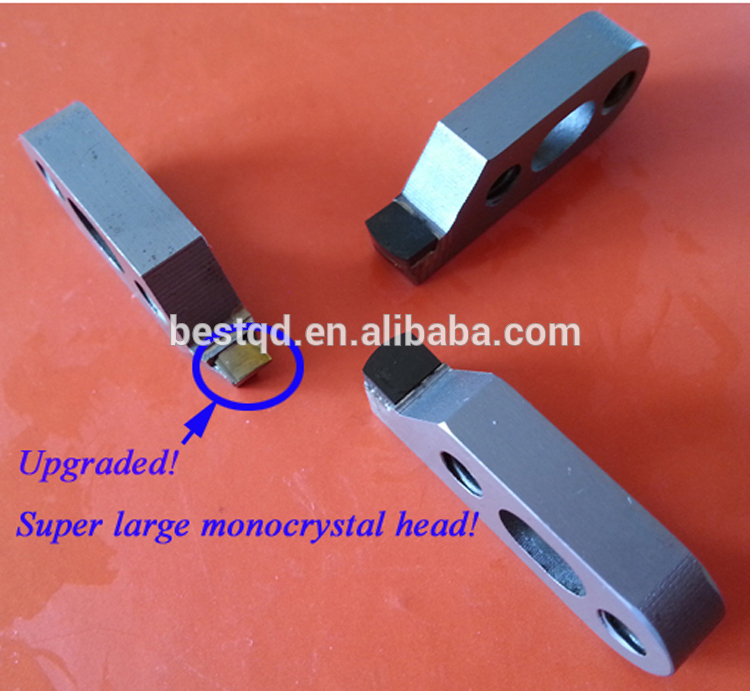

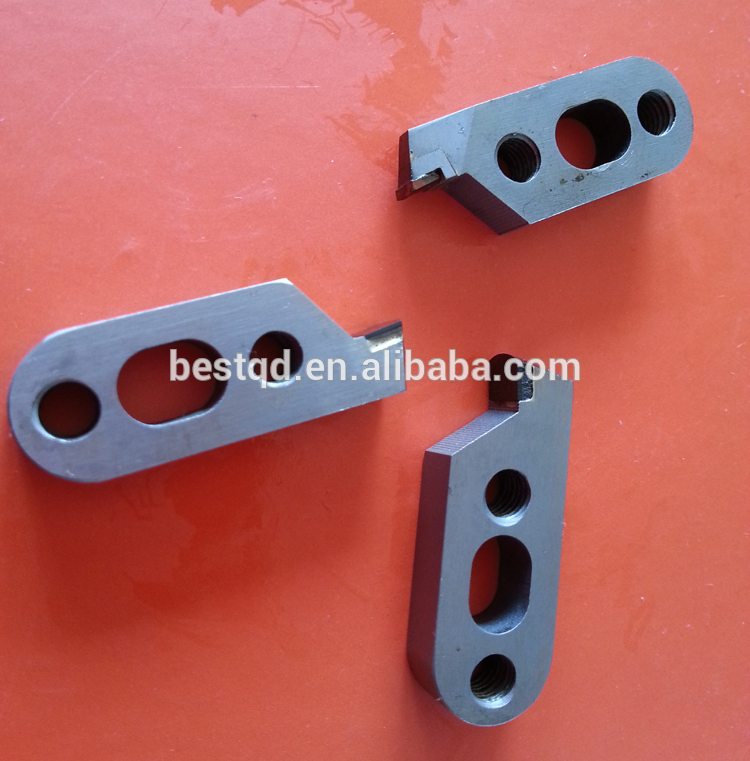

3) Diamond Cutters:

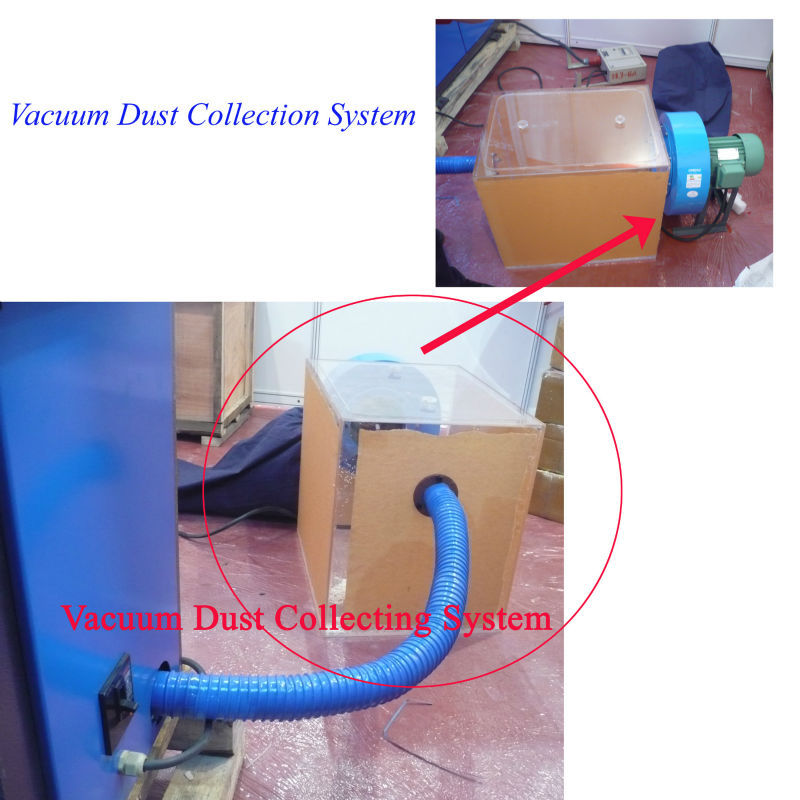

4) Dust Collector equipped on the machine:

5. Samples polished by the machine:

Package and Shipping

Package:

The machine and dust collector will be packed in separate free-fumigation wooden case, dimension and weight as below: Machine case (L*W*H): 132x74x117cm, 1.14CBM, 420kg

Dust Collector case (L*W*H): 72x57x66cm, 0.27CBM, 60kg

Shipping:

The machine can be shipped by sea or by air.

FOB, C&F and CIF are all available. We also can quote you all shipping cost to door (DDU or DDP).

Warranty

2 years dating from you receiving the machine.

During warranty period, if some part is broken due to manufacturing defect, we will send you new part to replace by free cost and free shipping.

Certifications

We have CE certificate and full set of testing report for this machine.
