Leading Manufacturer for Multi-use Woodworking Machine - Hot Sale Acrylic Edge Polishing Machine – YUANNUO MACHINERY

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-1500DP

Type:

Plate Poslishing

No-Load Speed:

20,000rpm

Rated Voltage:

AC220V and AC3380V are both available

Rated Input Power:

5.5kW

Dimensions:

132x74x117cm

Wheel Diameter:

150mm

Frequency:

N/M

Weight:

480kg

Name:

Acrylic Edge Polishing Machine

Model:

BT-1500DP

Brand:

BEST

Working Length:

Unlimited

Max. Thickness of Plate:

80mm

Cutting Speed:

0-1,000mm/min adjustable

Cutting Depth:

0-0.5mm adjustable

Cutting Mode:

Spindle Feeding

Cutting Precision:

0.01mm

Gross Power:

5.5kW

1. Specification:

2. Application:

The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate.
3. Advantage:

Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.

Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.

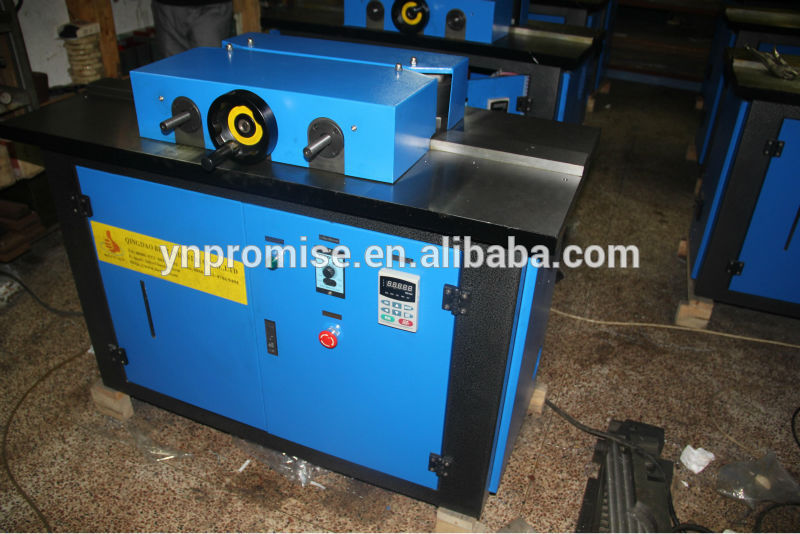

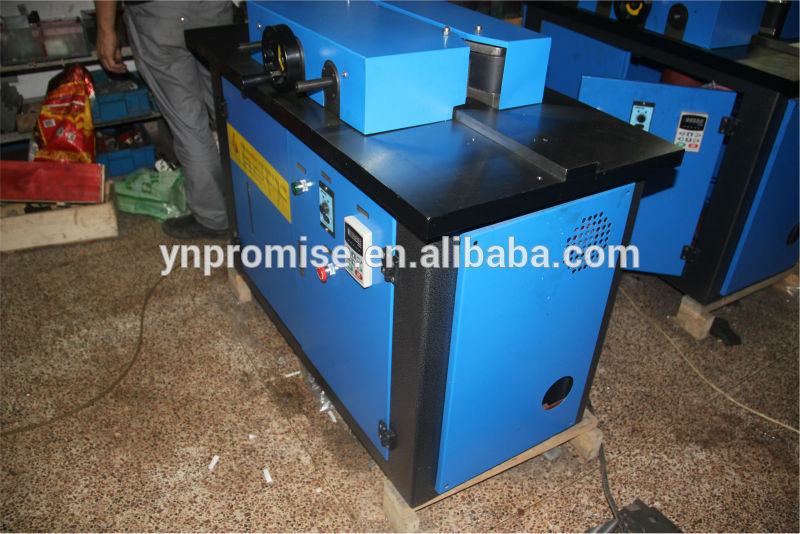

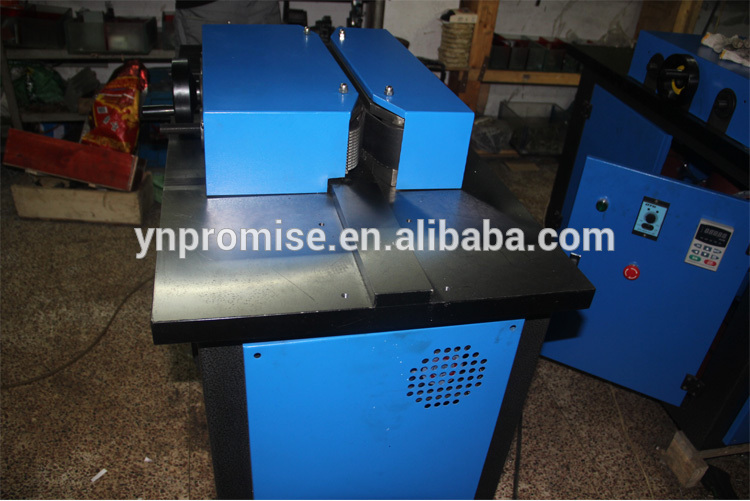

4. Machine details:

Extension steel rack as below, throught it the machine can polish unlimited long material:

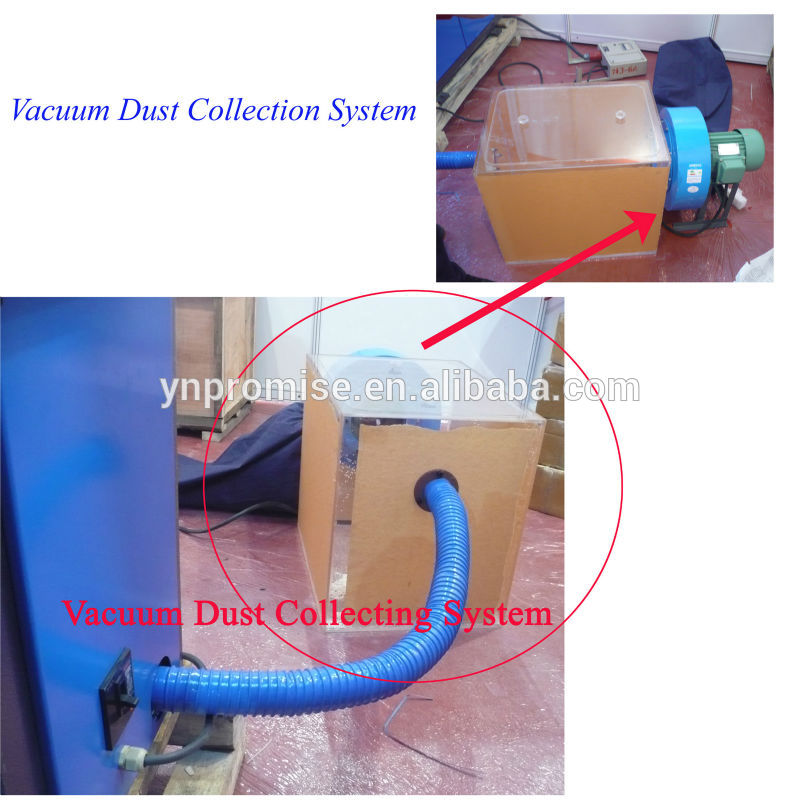

Dust collection system is equipped on the machine as below:

5. Samples polished by the machine:

We put the samples polished by themachine on our catalogue and calendar, the letters and pictures under the acrylic block are quite clear.
