It truly is our accountability to meet your needs and proficiently provide you. Your pleasure is our best reward. We are on the lookout ahead to the stop by for joint development for Low MOQ for 600*900mm Mini Wood Cnc Router 6090 4 Axis From, Should you pursuit the Hi-quality, Hi-stable, Competitive price tag sections, enterprise name is your very best choice!
It truly is our accountability to meet your needs and proficiently provide you. Your pleasure is our best reward. We are on the lookout ahead to the stop by for joint development for 600*900mm Mini Wood Cnc Router 6090 4 Axis From, Cnc Wood Router, Small Wood Cnc Router, Strong infrastructure is the want of any organization. We have been backed with a robust infrastructural facility that enables us to manufacture, store, quality check and dispatch our products and solutions worldwide. To maintain smooth work flow, we’ve sectioned our infrastructure into a number of departments. All these departments are functional with latest tools, modernized machines and equipment. Owing to which, we are able to accomplish voluminous production without compromising upon the quality.
- Processing Type:
- Other
- Condition:
- New
- Product Type:
- Plastic Sheet
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-2200DP-S
- Voltage:
- AC380V+/-10% (special voltage can be customized)
- Power(W):
- less than 5.5kw
- Dimension(L*W*H):
- 3300*1420*1750mm,8.20CBM
- Weight:
- 2500kgs
- Certification:
- CE, ISO
- Warranty:
- 2 years dating from buyer receiving the machine
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Adjustable angle acrylic edge horizontal long axis polishing machine
- Model No.:
- BT-2200DP-S
- Max. polish area (Length*Thickness):
- 2200*120mm
- Polish angle:
- 0-60 degree adjustable
- Spindle rotating speed:
- 6000-9000rpm adjustable
- Cutting speed:
- 0-1000mm/min
- Air compressed required:
- More than 0.60Mpa
- Cutting depth per time:
- 0-1mm adjustable
- Cutting mode:
- spindle feeding
- Dust Collector Joint Size:
- 100mm
Packaging & Delivery
- Packaging Details
- Horizontal servo full automatic acrylic edge polishing bending machine in stock
Description
Advantage
It is equipped with LS brand Servo System and LS PLC control system with color LED touch screen imported from South Korea, all orders can be fulfilled on the touch-screen automatically, including angle adjustment in range of 0-60 degree automatically. So working efficiency is much higher and setting is more accurate.
Click here to watch working video
The specification of BT-2200DP-S
Item No.
BT-2200DP-S
Working Are (Work piece Length * Thickness)
2200*120mm (since the 2 ends of worktable are open, material length is no limitation.)
Working Width
No limitation
Complete Machine Power
≤5.5KW
Spindle Rotating Speed
6000-9000RPM adjustable
Cutting Speed
0-1000mm/min adjustable
Cutting Mode
Spindle feeding
Polish Angle
0-60°adjustable
Cutting Depth
0-1mm (adjustable)
Power Supply
AC380V+/-10%, 50/60Hz, 3 phase 4 lines
Dust Extractor Mouth Diameter
100mm
Compressor Air
≥0.60Mpa
Package Dimension (L*W*H)
3400*1420*1750mm,8.45CBM
Machine N.W.
2400kg
G.W. With Package
2500kg

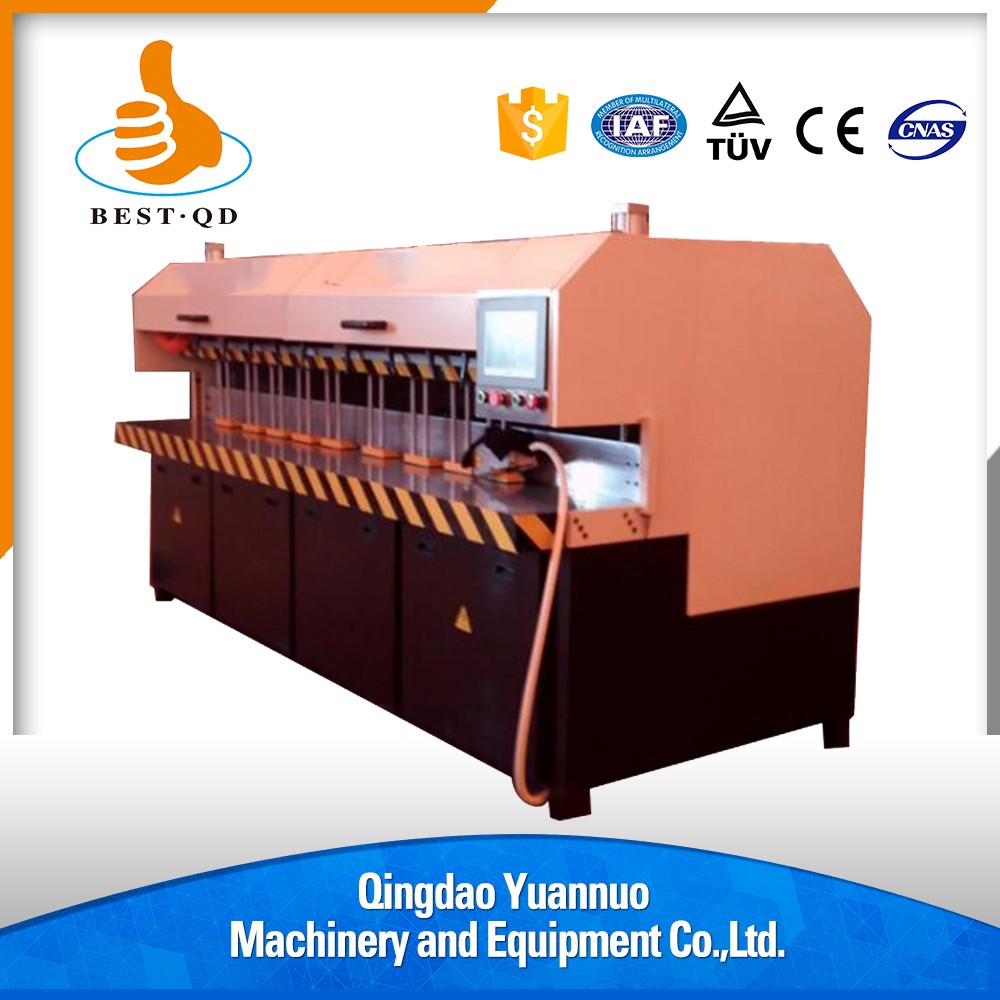

Product show
Features

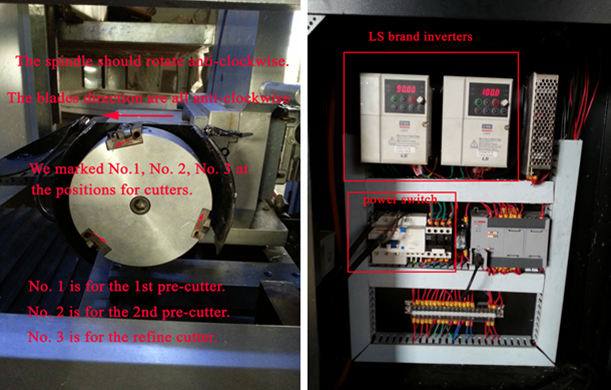

1.We have Cutters Adjustment Device to help you change and adjust cutters easily.
2. It is horizontal type, comparing with vertical type, its working efficiency is much higher, working precision is more accurate. Furthermore, the 2 ends of the machine are open, no length limitation.
Product details

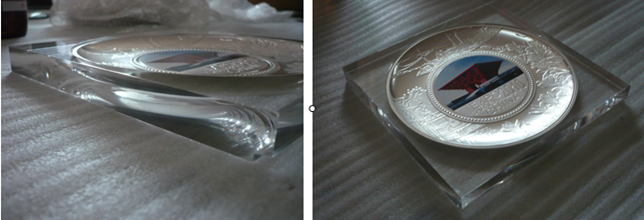

Product samples
