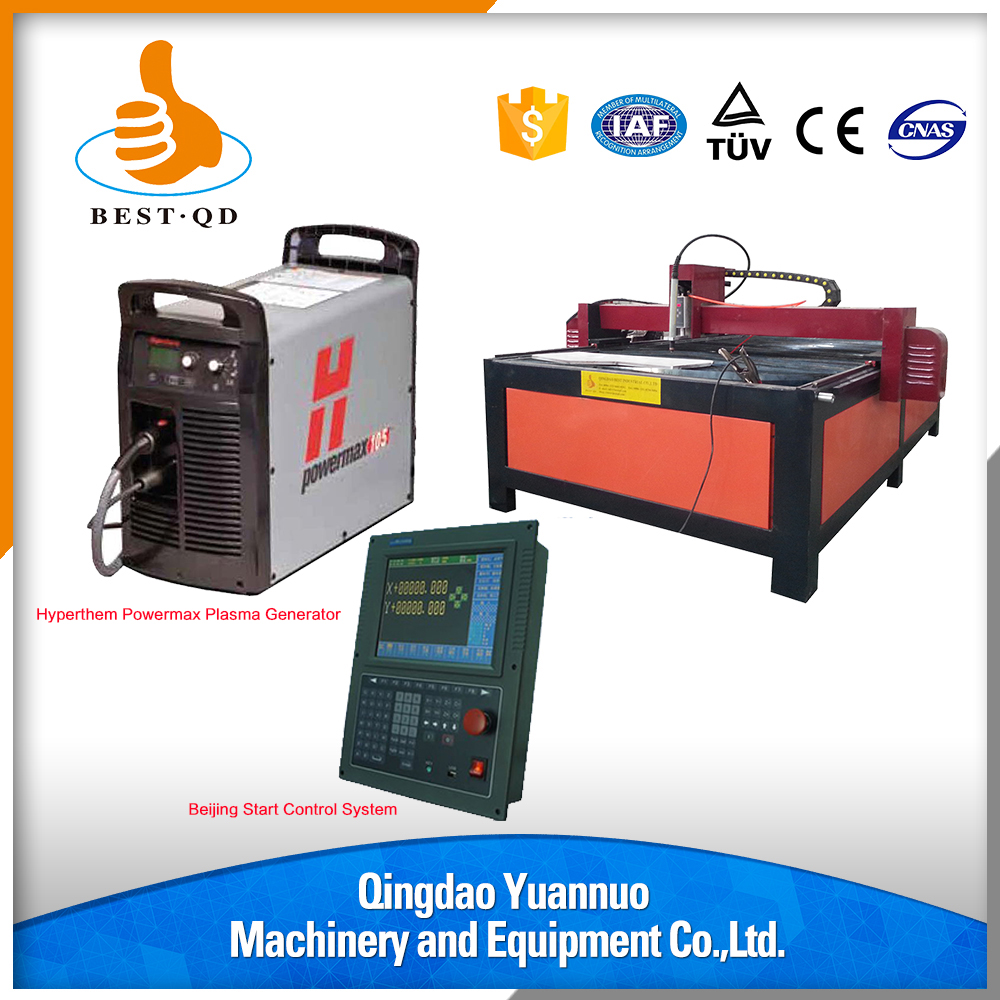

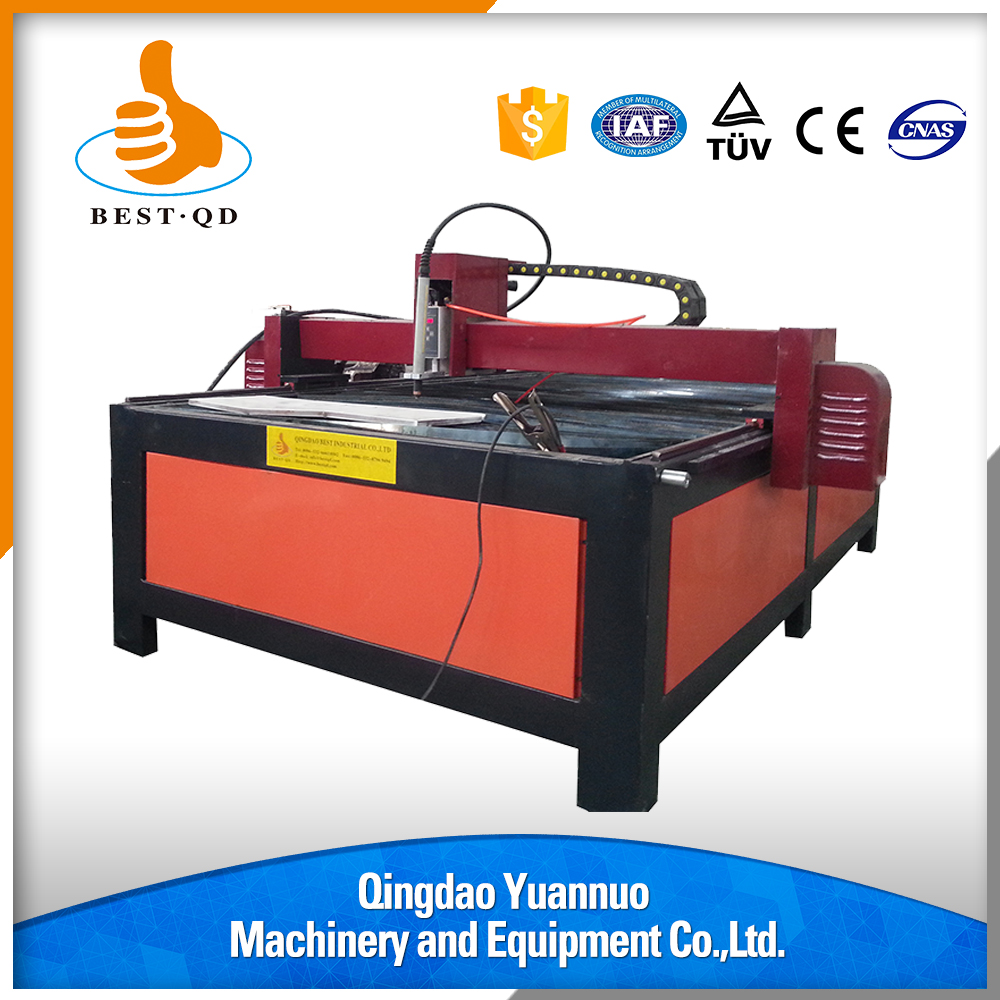

Low price for Acrylic Machine - Trade Assurance 1300x2500mm CNC Plasma Cutting Machines with PMX105 Plasma Generator made in USA to cut metal max 32mm thickness – YUANNUO MACHINERY

Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-1325PMX105

Voltage:

AC380V+/-10%

Rated Power:

30kW, 8.5kW

Dimension(L*W*H):

310x220x150cm

Weight:

1200kg

Certification:

CE

Warranty:

2 years dating from you receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

CNC Plasma Cutting Machine

X, Y Axis Working size:

1300x2500mm

Control System:

Beijing Start control system

Data Transmission:

USB

Working voltage:

AC380V+/-10% 50-60HZ

Cutting Precision:

+/- 0.03mm

Cutting Thickness:

Mild Steel 3-32mm, Stainless Steel 6-25mm, Aluminium 6-25mm

Cutting Speed:

500-8330mm/min

Origin:

Plasma generator is made in USA

Packaging & Delivery

Packaging Details

Trade Assurance 1300x2500mm CNC Plasma Cutting Machine with PMX105 Plasma Generator made in USA to cut metal max. 32mm thickness

 Feature:

 Specification:

Model	BT-1325PH105
X, Y Working Size	1300X2500mm
Machine Structure	Welded with thick-wall square steel tube
X, Y, Z Guide Rail	Hiwin square linear guideway made in Taiwan
X, Y, Z Transmission	X, Y axis rack and pinion, Z axis cylinder
X, Y, Z Driver	Fractionized Stepper Motor

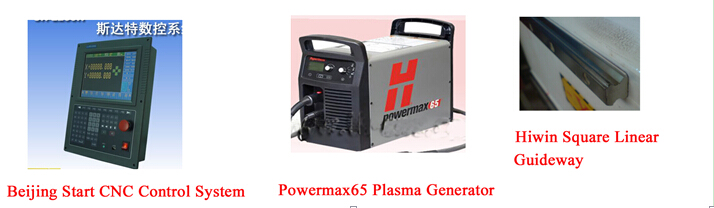

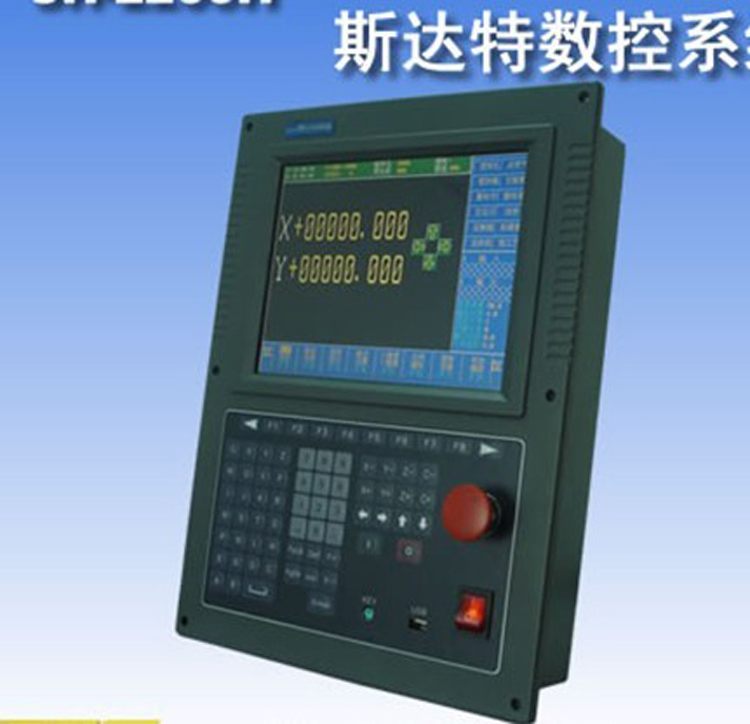

CNC Control System	Beijing Start With Automatic capacitance-height controller and automatic arc-height controller
Interface	USB
Program System and Softwares Compatibility	Ucancam V9 (Type 3, Artcam, Jingdiao, Mastercam are optional)
Working Dictate	G-code
Cutting Thickness	Mild steel 3-32mm, stainless steel 6-25mm, aluminium 6-25mm
Cutting Speed	Details please refer to the technical file for Hypertherm Powermax105

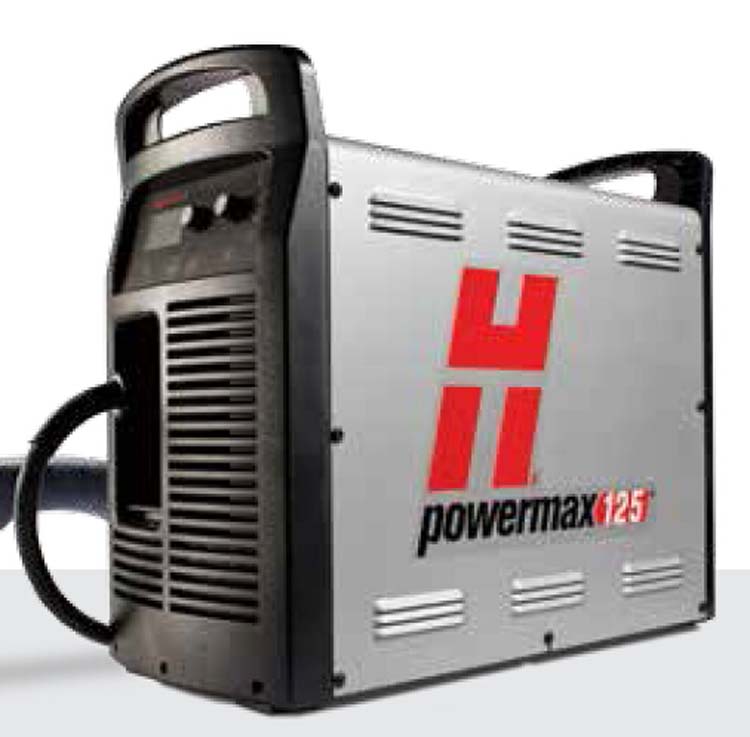

Plasma Generator	Hypertherm Model No. powermax 105 made in USA (more detailed technical file, please refer to the appendix below)
Documents Transmission	USB
Working Mode	Untouched Arc Striking
Working Voltage	Plasma generator and vacuum pump need  3-phase AC380V/50-60Hz, other equipment need AC220V/50-60Hz
G.W	1200kg
Packing Dimension	3090x1780x1350mm

 Advantages:

1.The bed lathe is welded with thick-wall cast steel tube, and is quenched before shaping to eliminate innerstress, so the working table is quite strong, stable, durable, nondeformable and high rigidity.

2. Gantry style structure, Y axis equipped with double stepper driven motors, more powerful.

3. X Y Z axis are equipped with Hiwin square linear guideway made in Taiwan.

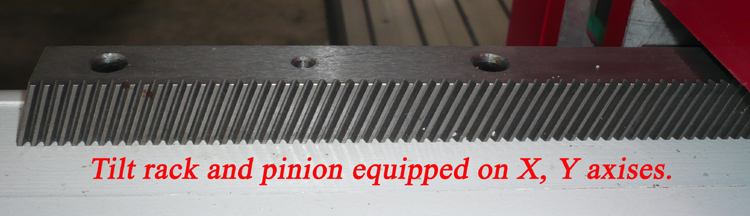

4. X, Y axis tilt rack and pinion, gear drive. The tilt rack and pinion is higher accuracy and smaller noise than the stright type. Z axis is driven by cylinder.

5. Well softwares compatibility, such as Type3 / Artcam / Castmate / Ucancam V9 etc CAD/CAM software are all compatible.

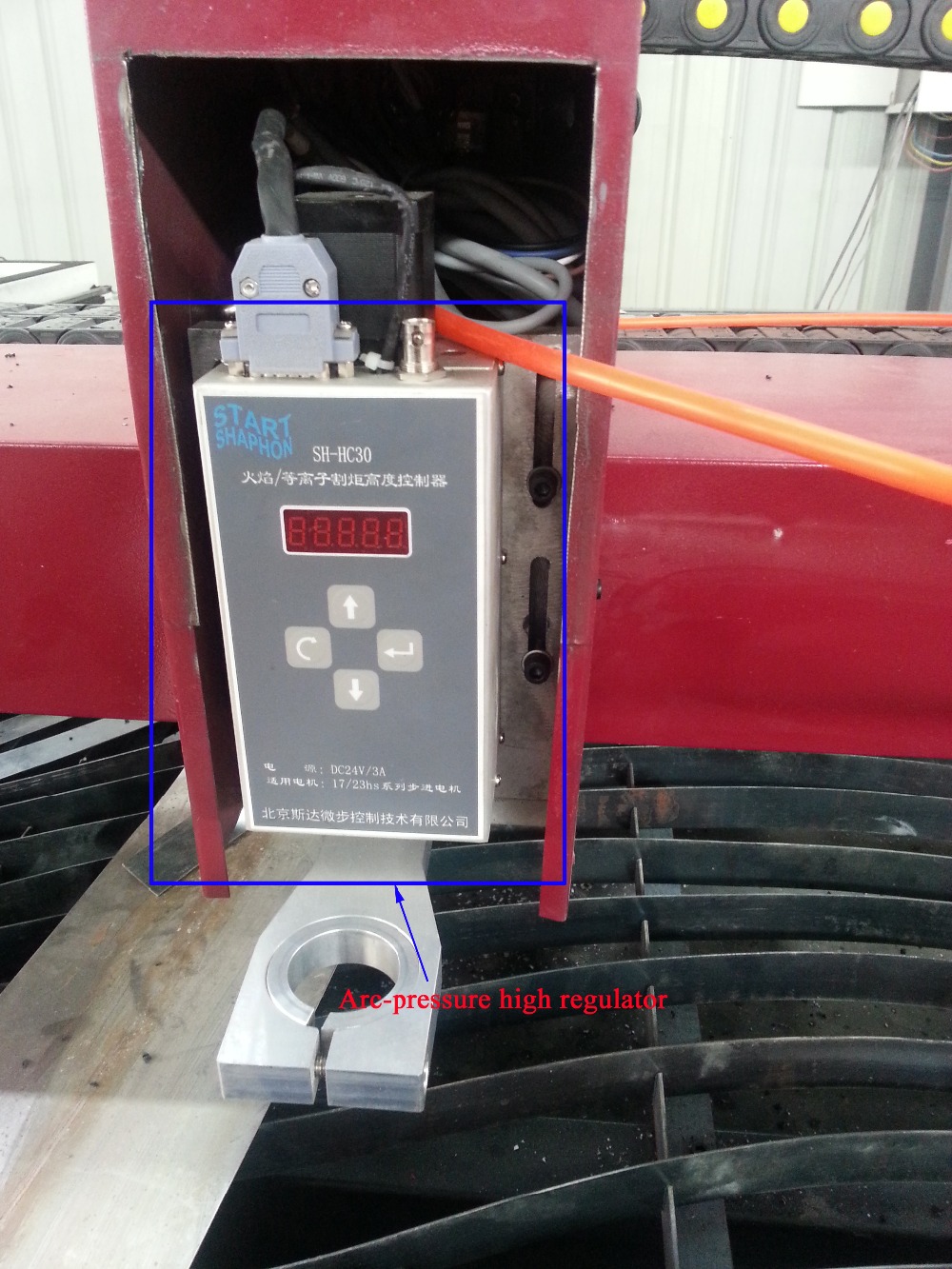

6. Legal version Start CNC control system with Automatic capacitance-height controller and automatic arc-height controller.

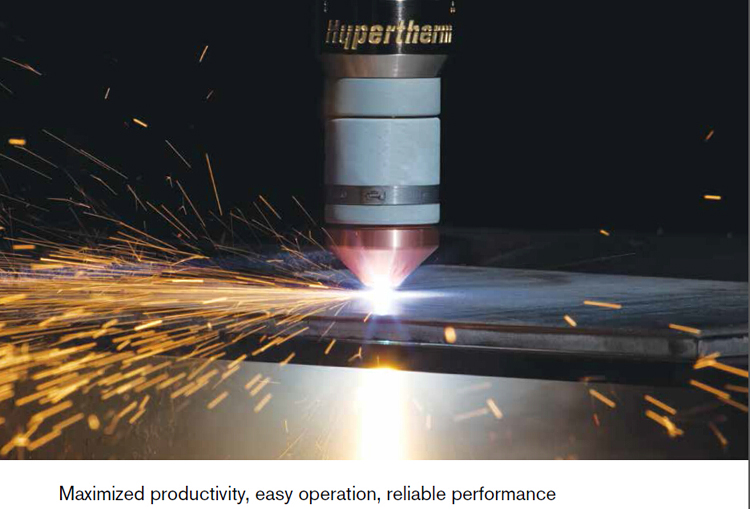

7. Equipped with Hypertherm Powermax105 plasma generator made in USA. (The detailed technical specification of Powermax105 plasma generator, please refer to the appendix.)

 Our Services:

1. 2 years dating from buyer receiving the machine.

2. During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide you with new one free cost to replace.

3. When warranty is expired, if some part is broken or damaged, you can buy new from our company.





---

Product detail pictures:

---
