- Condition:
- New
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-600B/1200B/1800B/2400B/3050B
- Machine Type:
- Hot Bending
- Raw Material:
- Flat sheet
- Material / Metal Processed:
- Plastic
- Power:
- Electric and Pneumatic
- Automation:
- Automatic
- Extra Services:
- Heat and soft plastic plate
- Certification:
- CE
- After-sales Service Provided:
- Overseas third-party support available
- Model No.:
- BT-600B/1200B/1800B/2400B/3050B
- Bending Area (L*W):
- L:600mm-3050mm, W:limitless
- Maximum Bending Thickness:
- 10mm
- Heater Type:
- Infrared non-contact Quartz Heating Tube
- Number of Heating Tube:
- 3pcs
- Gross Power:
- 1kW/1.5kW/2kW/3kW/3.5kW
- Power Supplied:
- AC220V+/-10% 50-60Hz
- Package Dimension (L*W*H):
- Length:1200mm/1750mm/2400mm/3000mm/3650mm, W:550mm. H:1150mm
- Weight:
- 55kg/150kg/200kg/260kg/300kg
- Certificate:
- CE
Packaging & Delivery
- Packaging Details
- geomembrane bending machine Export standard ffree fumigation wooden case
- Delivery Time
- 5 days after receiving deposit
Low Price geomembrane PVC organic glass bending machine

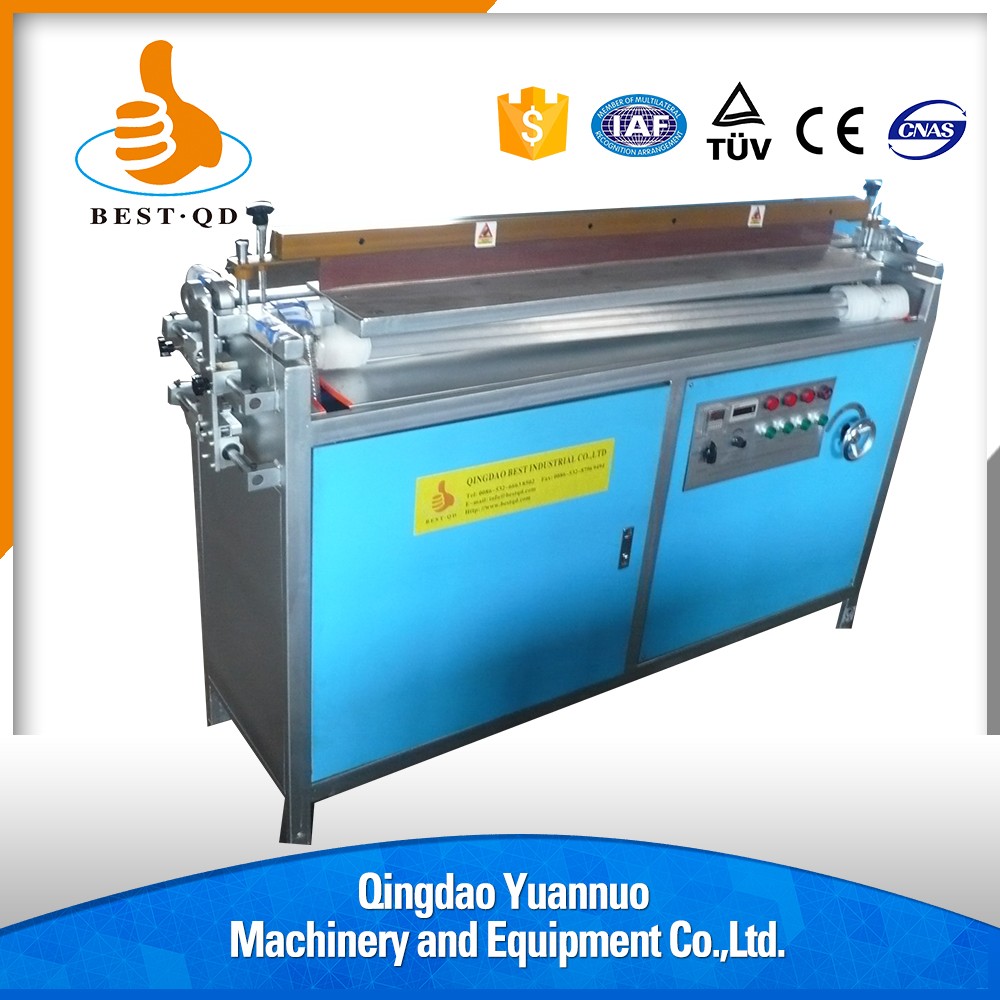

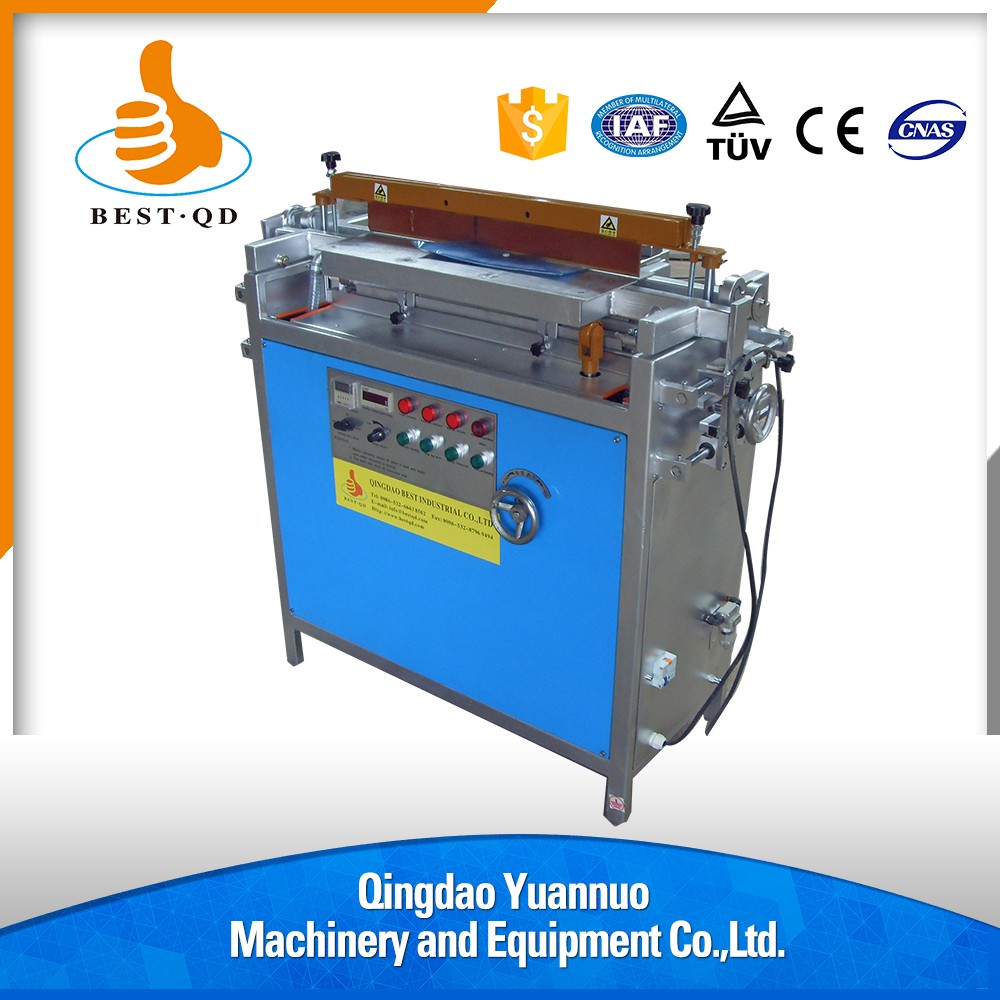

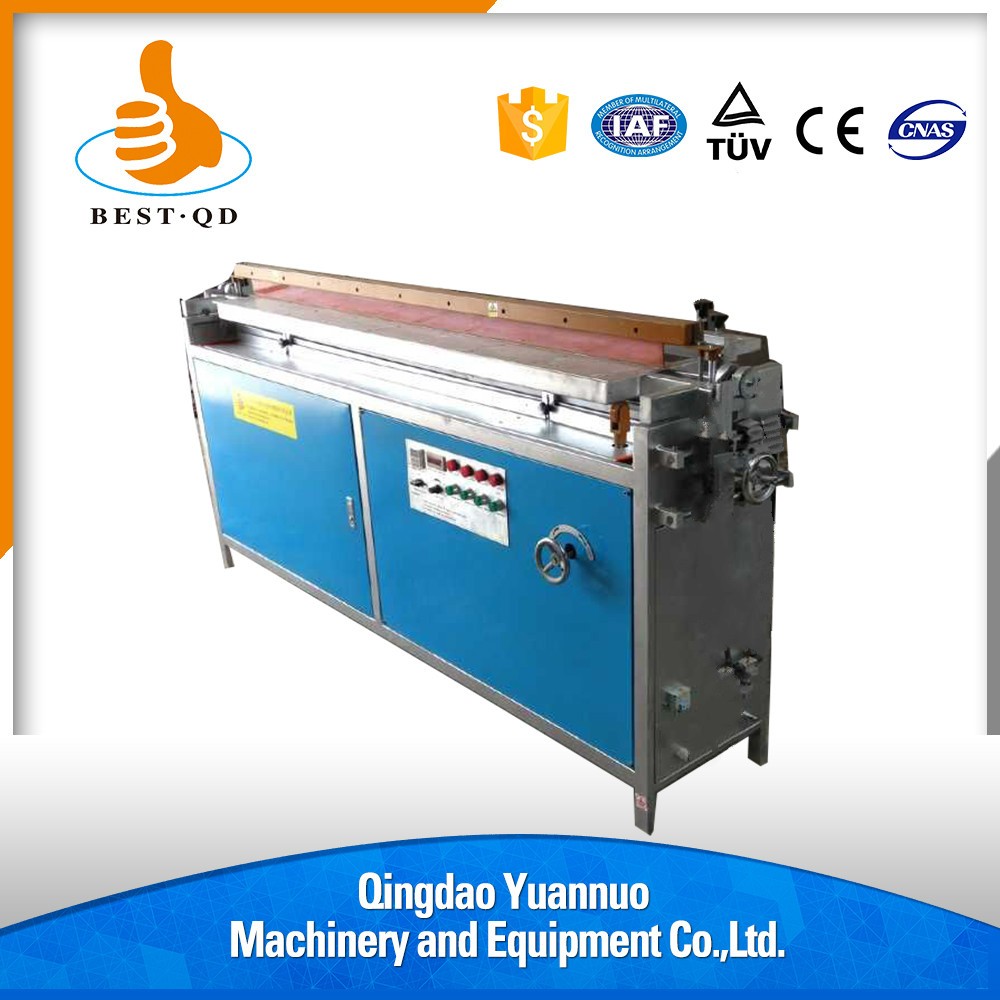

Picture show:
|
Model No. |
BT-600B |
BT-1200B |
BT-1800B |
BT-2400B |
BT-3050B |
|
Bending Length |
0-600mm |
0-1200mm |
0-1800mm |
0-2400mm |
0-3050mm |
|
Bending Width |
unlimited |
||||
|
Bending Thickness |
0-10mm directly, thicker sheet can be bent after milling thinner in advance |
||||
|
V-shaped Angle Bending Range |
45-180°automatically, 0-45°manually |
||||
|
Max. Circular Arc Bent |
Diameter 30mm |
||||
|
Heating Mode |
Non-contact infrared heating |
||||
|
Heaters Qty |
3pcs, with the special mold made by us the machine can bend small circular arc |
||||
|
Power Supply |
AC220V+/-10% 50-60Hz |
||||
|
Heater Power |
1kW/pc |
1.5kW/pc |
2kW/pc |
3kW/pc |
3.5kW/pc |
|
Current (Ampere) |
7A |
9A |
11A |
15A |
15A |
|
Dimension (L*W*H cm) |
120x55x110cm /0.73CBM |
240x55x110 / 1.45CBM |
240x55x110 / 1.45CBM |
300x55x110 / 1.82CBM |
365x55x110 / 2.21CBM |
|
Net Weight (kg) |
40 |
100 |
150 |
200 |
260 |
|
Weight (kg) |
60 |
130 |
210 |
230 |
300 |
Application:
It is widely used to bend hard plastic sheet, including but not limited to acrylic (organic, PMMA), PC, PVC, PETG, PP, ABS etc. V-shaped angle bending range is 0-180°. Max. circular arc diameter is 30mm. It is a necessary equipment for AD sign products making industry. Proper for sample making and mass production.

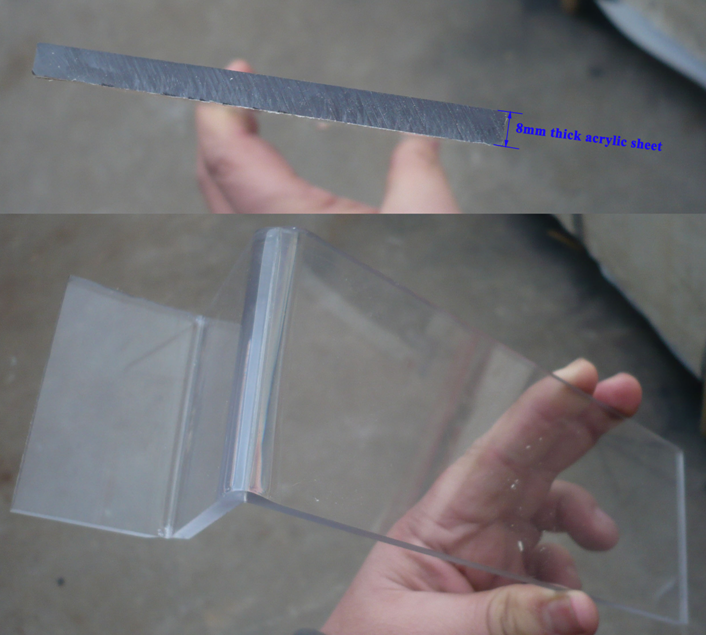

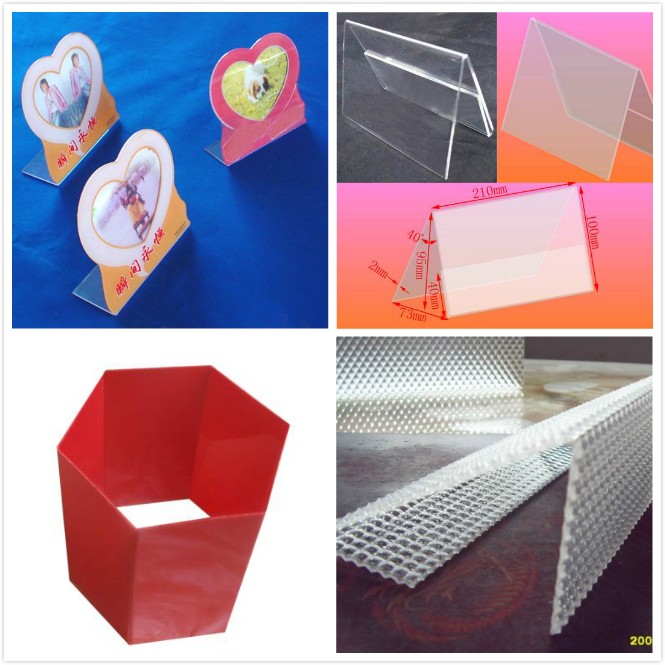

Samples as below:
Technical Feature and Advantage:

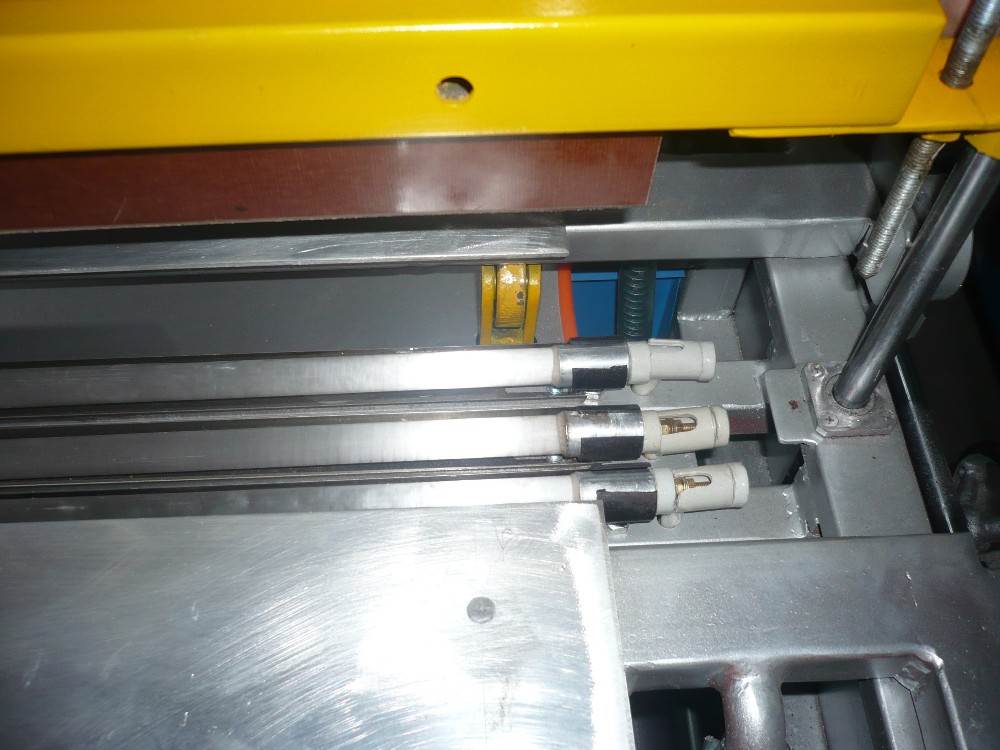

1) Comparing with other model, this model is equipped with 3pcs of parallel heating elements, so its heating area is larger. Besides V-shape angle in range of 0-180°, through special mould we made, it also can bend small circular arc (max. diameter 30mm).

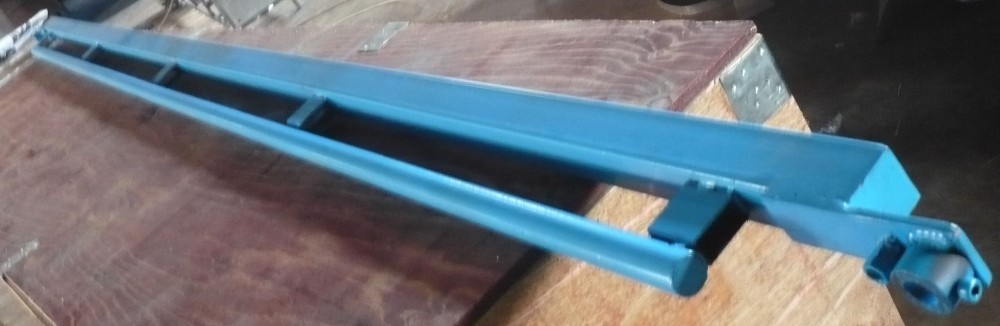

Special mould for arc bending:

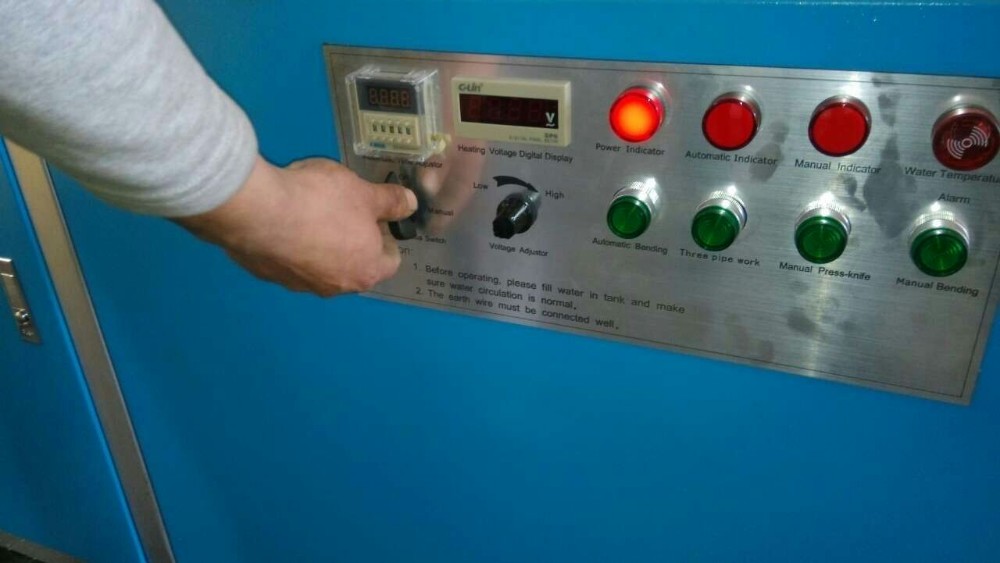

2) Digital controlled, easy, convenient and safe operation.
3) 2 working modes for selecting freely. Manual working mode for your testing the 1st piece of plate and record exact heating time. For next same pieces, you can use Automatic working mode, the machine will bent automatically when time is up to the value we set in advance, save labor cost and high working efficiency.
4)It is equipped with Angle Meter, the bending angle can be adjusted and set accurately.
5) The working voltage is adjustable according to material different thickness and melting characterisitics, so the mateiral can be heated and softened evenly.
6) Non-contact infrared heating mode, fast heating and no burnt.
7) Cooled by water. It will alarm automatically when water temperature is over 50℃.
8) Electricity leakage protective device is equipped, combined with earth wire, double safe guaranty.
9) Max. bending length is 3050mm.
Warranty:
1. 2 years dating from buyer receiving the machine.
2. During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.
3. When warranty period is expired, if some part is broken or damaged, you can buy new from our company.
