- Condition:
- New
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-3050B
- Machine Type:
- Plastic Bending Machine
- Raw Material:
- Flat Sheet
- Material / Metal Processed:
- Plastic
- Power:
- Electric and Pneumatic, 3kw/tube*3tubes
- Automation:
- Automatic
- Extra Services:
- Heat Treating
- Certification:
- CE
- After-sales Service Provided:
- Overseas third-party support available
- Name:
- Acrylic Bending Machine
- Max. Bending Width:
- 3050mm
- Max. Circular Arc Bent:
- Diameter 30mm
- Max. Bending Length:
- 3050mm
- Bending Width:
- unlimited
- Number of Heating Tube:
- 3pcs
- Processing Type:
- Plastic Thermoforming Machine
- Voltage:
- AC220V+/-10%
- Product Type:
- Plastic Sheet
Packaging & Delivery
- Packaging Details
- Delivery Time
- 7 days after receiving T/T deposit
Economic cheapest 3-tubes automatic acrylic letter bending machine
Introduction of 3-tubes automatic bending machine
 |
Acrylic Sheet and PETG Bending Machine: 1. The bending machine helps you to easily and quickly produce different V-shaped profiles. 2. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles . 3. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine. 4. It can be used to bend components of ACRYLIC, PVC, PMMA, PC, ORGANIC GLASS, RESIN etc. 5. We pay attention to details parts of the machines, therefore our products quality is steady and perfect. Click here, to learn more |
Specification sheet
| Item No. | BT-600B | BT-1200B | BT-1800B | BT-2400B | BT-3050B |
| Max. Feeding Width | 600mm | 1200mm | 1800mm | 2400mm | 3050mm |
| Total Power | 2KW | 2.5KW | 3KW | 3.5KW | 4KW |
| Machine Size(L*W*H mm) |
1080x550x1100 |
1680x550x1100 |
2300x550x1100 | 2950x550x1100 | 3550x600x1100 |
| N.W.(kg) | 55 | 180 | 200 | 230 | 260 |
| G.W.(kg) | 80 | 200 | 230 | 260 | 300 |

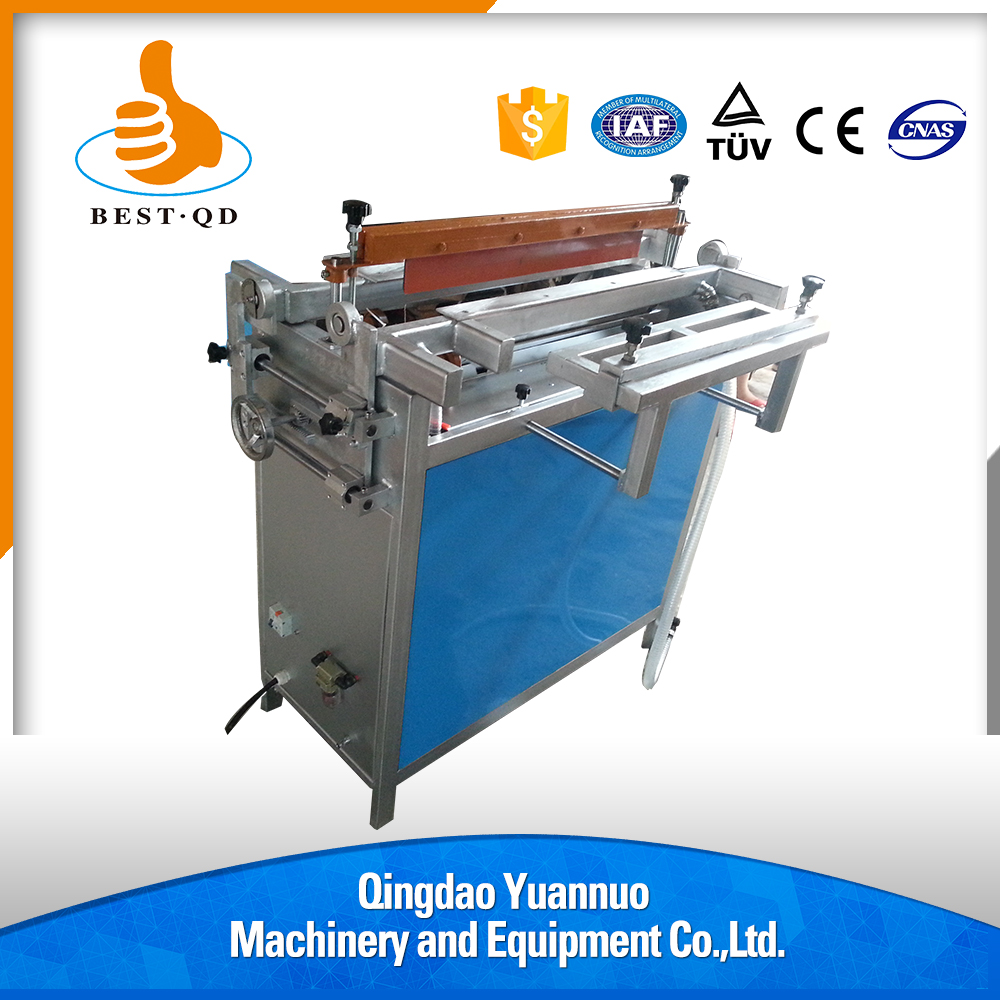

Product show
Features
1. Digital operation, easy and convenient.
2. Both automatic and manual working status.
3. According to sheet thickness and material characteristic to set heating time, it will bend automatically when it reaches time set in advance.
4. Bending angle is adjustable from 1-1790.
5. Adopt special quartz heating tubes, rapid heating speed and long working life.
6. Working voltage is adjustable so to meet different material characteristic and different thickness sheet, avoid buring or destorying material.
7. Worktable and workpiece are cooled by water. When water temperature is over, it will alarm automatically.
8. With function of electrical leakage protection to make sure safe operation.

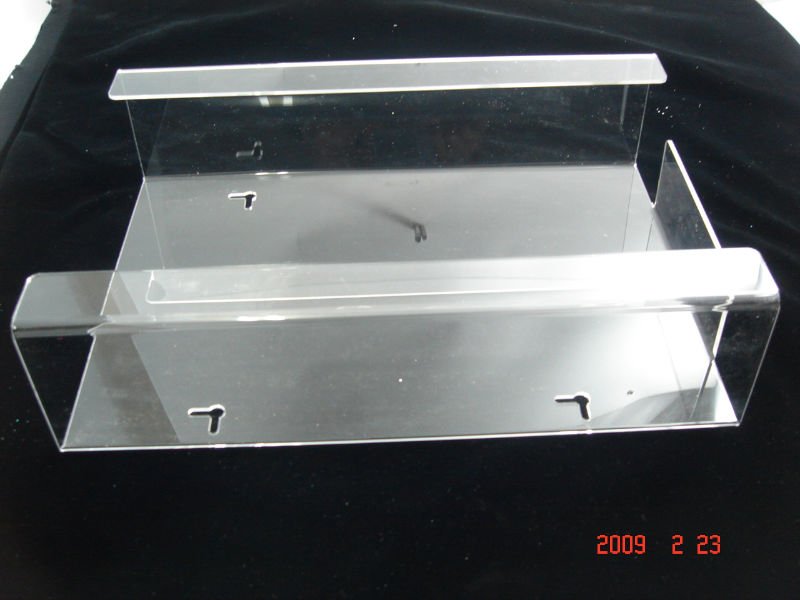

Samples display
