New Hot Selling acrylic PVC bender desktop machine

Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-600BP/1200BP/1800BP/2400BP

Machine Type:

Plastic Plate Bending Machine

Raw Material:

Sheet / Plate Rolling

Material / Metal Processed:

Plastic

Power:

Electric

Automation:

Manual

Extra Services:

Heat Treating

Certification:

CE, ISO14001:2004

After-sales Service Provided:

Overseas third-party support available

Model No.:

BT-600BP/1200BP/1800BP/2400BP

Bending Area (L*W):

L:600mm-2400mm, W:limitless

Maximum Bending Thickness:

10mm

Heater Type:

Infrared Quartz Heating Tube

Number of Heating Tube:

1pc

Gross Power:

1-2.5kW

Power Supplied:

AC220V+/-10%/50Hz

Dimension (L*W*H):

Length:1050mm/1650mm/2250mm/2850mm, W:400mm. H:330mm

Weight:

50kg/70kg/80kg/100kg

Cooling Mode:

Water cooling

Packaging & Delivery

Packaging Details

Delivery Time

3 days after receiving payment

New Hot Selling acrylic PVC bender desktop machine

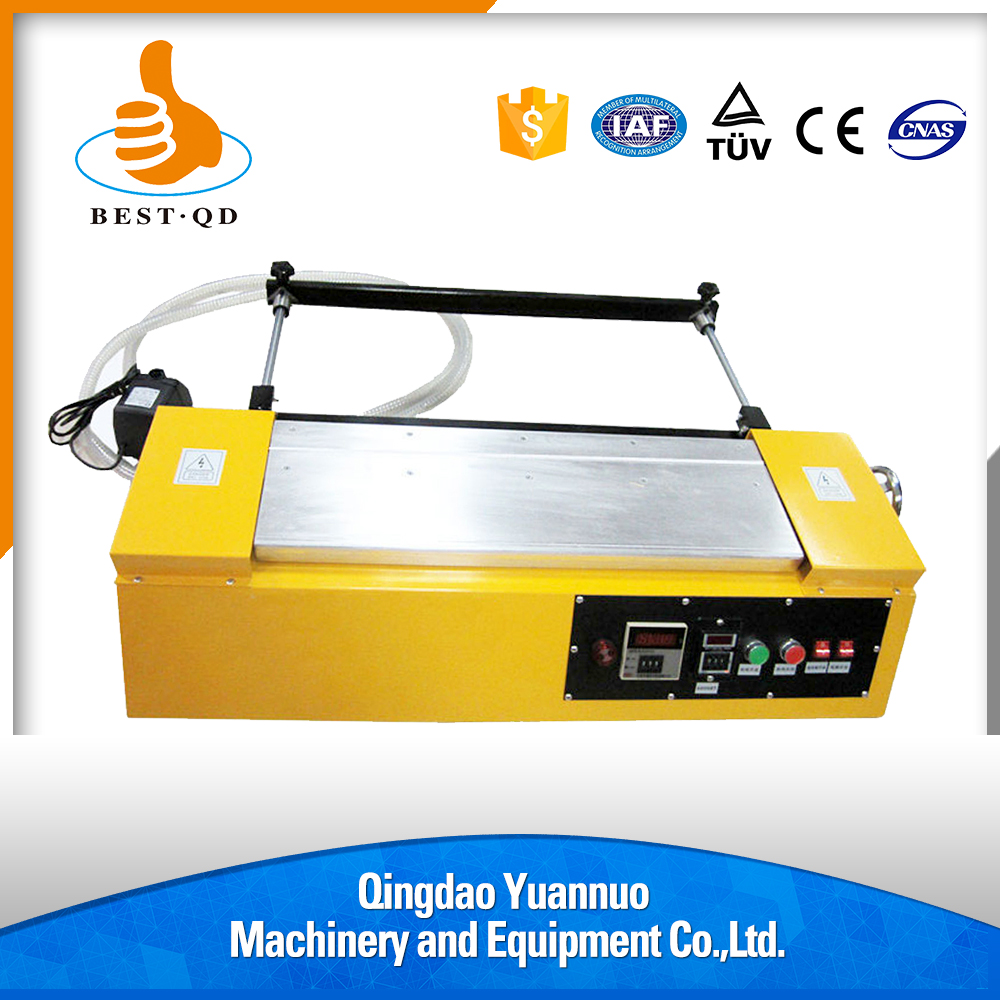

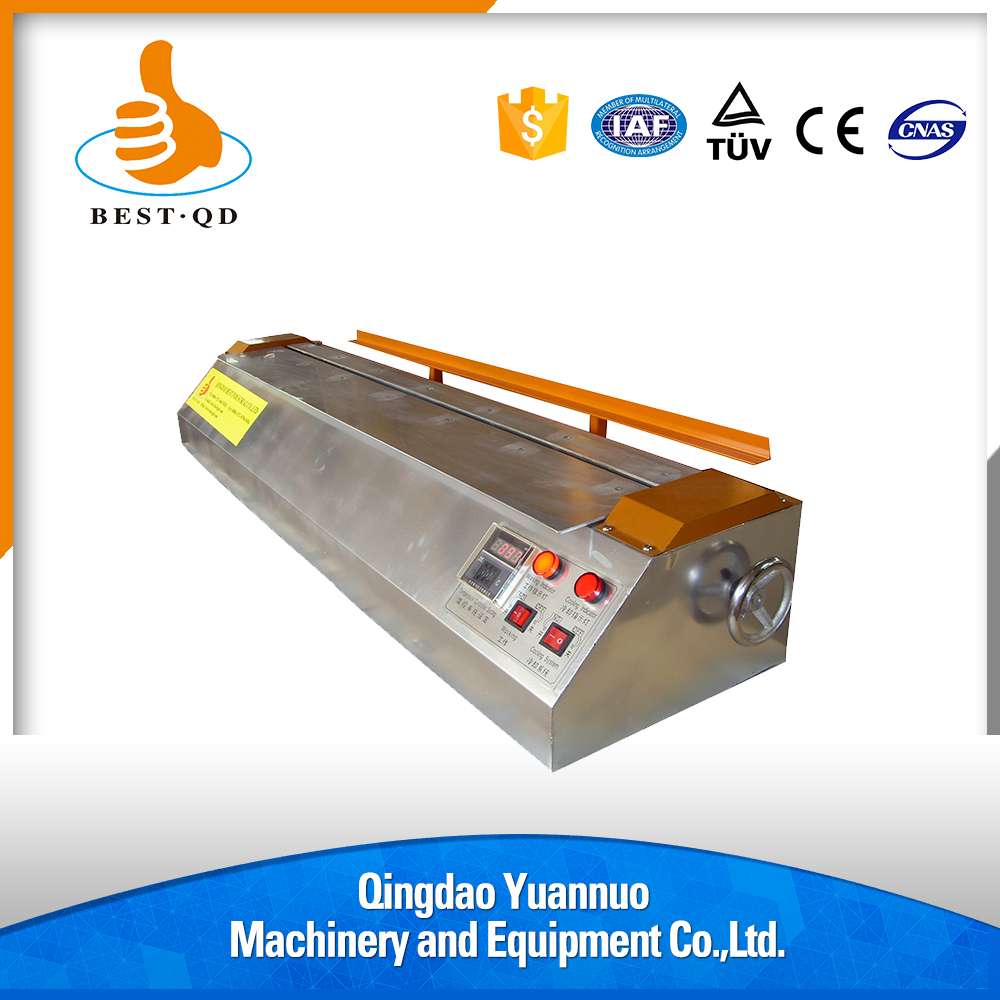

 Picture show:

Specification :

Acrylic Machine:

1. The bending machine helps you to easily and quickly produce different V-shaped profiles.

2. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles .

3. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine.

4. It can be used to bend components of ACRYLIC, PVC, PMMA, PC, ORGANIC GLASS, RESIN etc.

5. We pay attention to details parts of the machines, therefore our products quality is steady and perfect.

Feature:

1. Digital operation, easy and convenient.

2. Both automatic and manual working status.

3. According to sheet thickness and material characteristic to set heating time, it will bend automatically when it reaches time set in advance.

4. Bending angle is adjustable from 1-179⁰.

5. Adopt special quartz heating tubes, rapid heating speed and long working life.

6. Working voltage is adjustable so to meet different material characteristic and different thickness sheet, avoid buring or destorying material.

7. Worktable and workpiece are cooled by water. When water temperature is over, it will alarm automatically.

8. With function of electrical leakage protection to make sure safe operation.

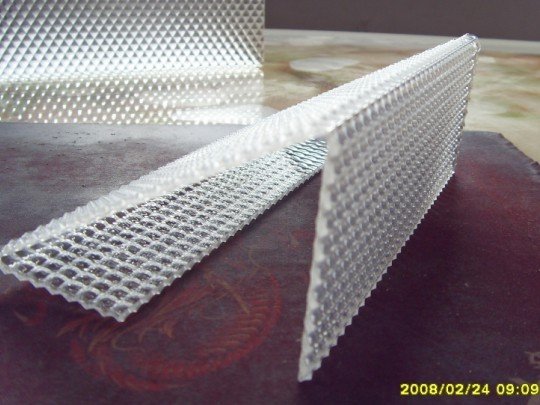

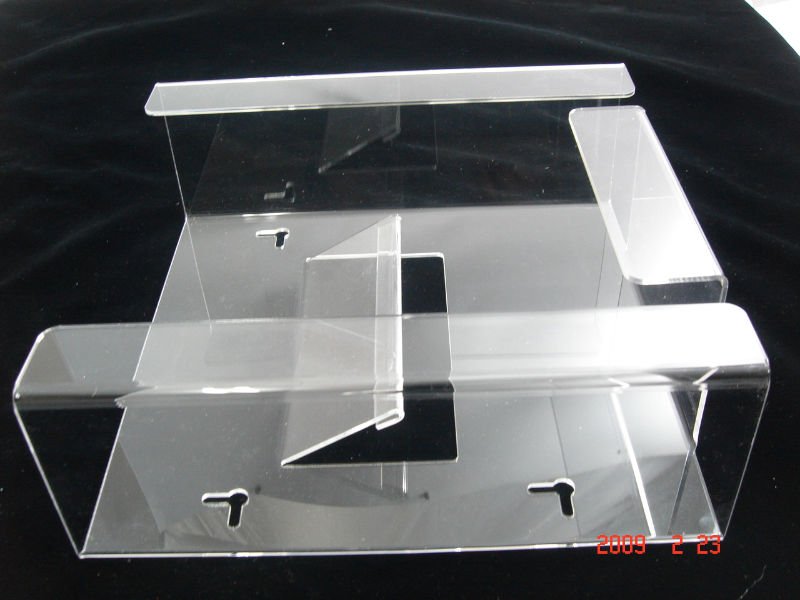

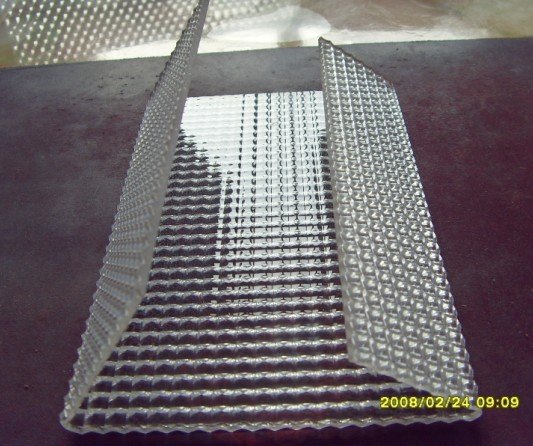

Samples display:

Remark:

1. We have working video to teach you how to use the machine.

2. If you are interested in this product and need to know more specification, please feel free to contact with us. Thank you for your kind attention! We also wish to get your comments to improve the machine. Other sizes of the machine can be ordered and made according to your special requirements.
