OEM Factory for Metal Bending Tensile Testing Machine - BT-3200V Automatic Large Size Acrylic Vacuum Forming Machine – YUANNUO MACHINERY

Condition:

New

Type:

Thermoforming Machine

Plastic Type:

Acrylic

Product Type:

Acrylic Sign and Light Box

Automatic:

Yes

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-3200V

Voltage:

AC380V+/-10%

Power(W):

18000

Weight:

2200kg, 2200kg

Dimension(L*W*H):

335X230X230cm

Certification:

CE, ISO9001:2008

Name:

Acrylic Vacuum Forming Machine

Max. working width:

2000mm

Max. working length:

3000mm

Power:

18kw

Power Supply:

AC380V+/-10% (3phase 4 lines)

Max. Shaping Depth:

100mm

Functions:

press & blow & suction functions

Dimension:

335x230x230cm

Certificate:

CE, ISO9001:2008

Packaging & Delivery

Packaging Details

Free Fumigation Wooden Case

Delivery Time

10 days after receiving deposit

Name:

Acrylic Vacuum Forming Machine

Application:

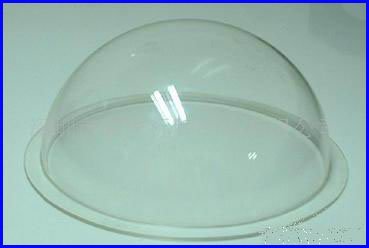

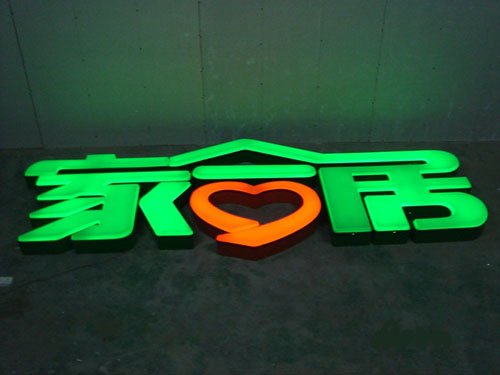

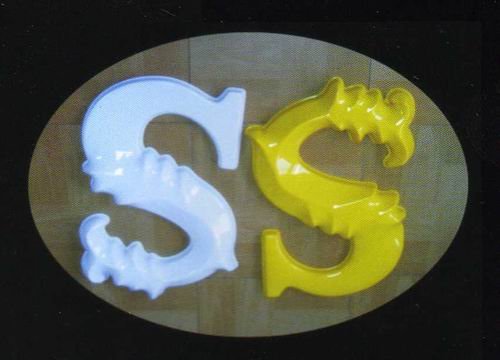

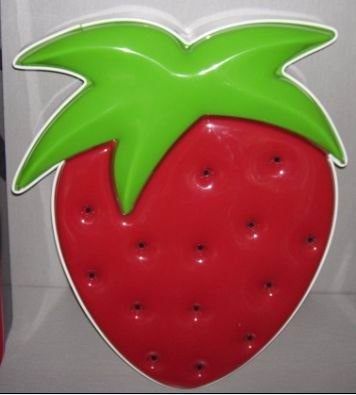

The equipment is mainly used to heat and soften acrylic sheet, then form it to AD signs or light box under the action of vacuum forming, blowing forming or compress forming function of the machine.
Feature:
1. It is a high integrated equipment with funcitong of heating and softening, vacuum forming, blowing forming and compress forming.
2. Strong hydraulic lift system provide the machine with adequate working pressure.
3. Super rack and pinion transmission system, runs more steadily and can adjust the balance of the move-board automatically.
4. Operated by the hand controller with 360°full view, more convenient and human friendly.
5. The heating oven is divided by 2 separate parts, they can work together or individually according to the material size.
6. The heating oven door is controlled by pneumatic system, convenient operation and save labor cost and improve working efficiency.
7. High precision temperature control system, digital display and will alarm automatically.
8. Special full steel structure and double roof beams make sure longer working life and more steady operation.

Remark:

If you are interested in this machine and need to know more details of it, please feel free to contact with us. Thank you for your kind attention!

:
