One of Hottest for Cnc Mental Cutting Machine - High Performance Metal Cutting Machine CNC Plasma Cutting Machine 1300x2500mm with PMX65 Plasma Generator To Cut Max. 25mm thick – YUANNUO MACHINERY Detail:

Condition:: New

Place of Origin:: Shandong, China (Mainland)

Brand Name:: BEST

Model Number:: BT-1325PMX65

Voltage:: AC380V+/-10%

Rated Power:: Max. 15kW

Dimension(L*W*H):: 3090x1780x1350mm

Weight:: 1200kg

Certification:: CE certificate

Warranty:: 2 years guaranty

After-sales Service Provided:: Engineers available to service machinery overseas

Model No.:: BT-1325PMX65

Working Size (X, Y Axis):: 1300x2500mm

Working Size (Z Axis):: 200mm

Machine Structure:: Gantry Style, Welded by thick-wall steel tube

Constrol System:: Beijing Start control system with Ac

Software:: Ucancam V9

Transimission System:: X, Y Hiwin brand square linear guideway made in Taiwan

Driven System:: X, Y gear rack and pinion, Z cylinder

Plasma Generator:: Hyperthem Powermax65 made in USA

Max. Cutting Thickness:: 25mm

Packaging & Delivery

Packaging Details
Delivery Time: 10 days after receiving deposit or original L/C at sight

Dear Sir or Madam,

Thank you for interest in our machine. Let’s introduce more details about it as below:

Product Details

1. Specification:

Model No.	BT-1325PMX65
X, Y Working Size	1300x2500mm
Machine Structure	Welded with thick-wall square steel tube
X, Y, Z Guide Rail	Hiwin 20 square linear guide way made in Taiwan
X, Y, Z Transmission	X, Y axis gear rack and pinion, Z axis cylinder
X, Y, Z Driver	Fractionized stepper motor
CNC Control System	Beijing Start control system with automatic capacitance-height controller and automatic arc-height adjuster
Interface	USB
Program System and Software Compatibility	Ucancam V9 (Type 3, Artcam, Jingdiao, Mastercam etc)
Working Dictate	G-code
Cutting Thickness	Mild steel 3-32mm, stainless steel 6-25mm, aluminium 6-25mm

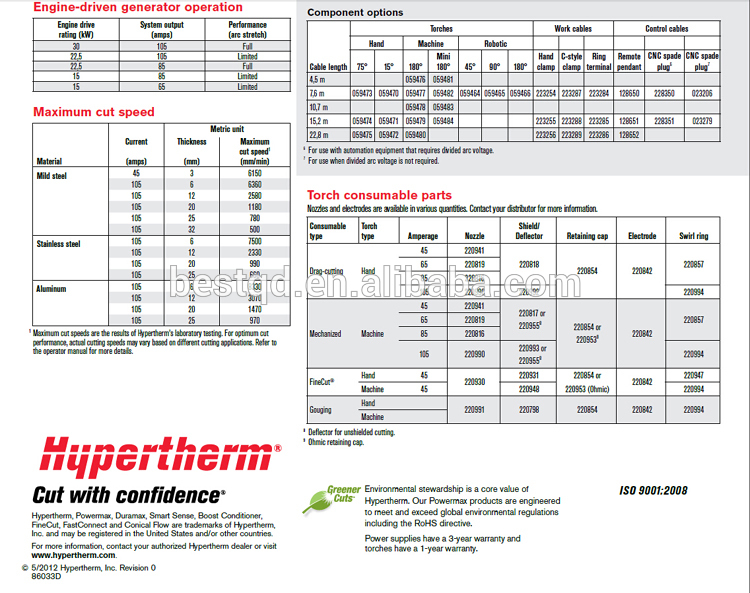

Cutting Speed	Details please refer to the technical file of Hyperthem PMX105 as appendix.

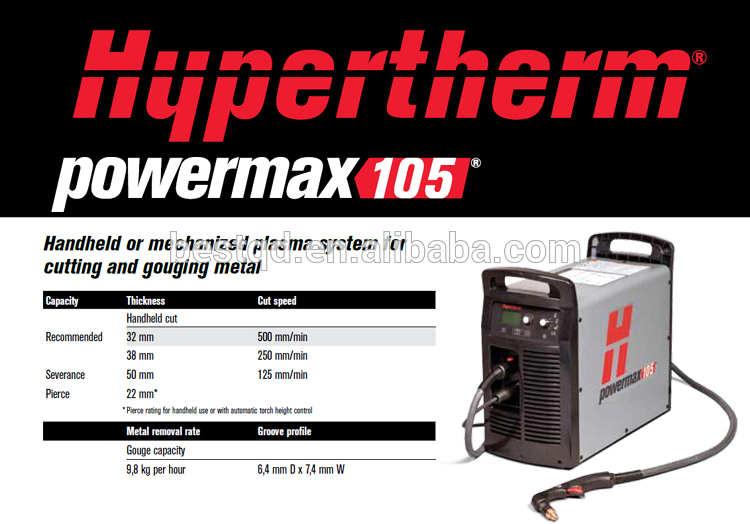

Plasma Generator	Hypertherm Powermax105 made in USA
Documents Transmission	USB
Working Mode	Untouched arc stricking
Power Supply	AC380V+/-10% or AC220V+/-10%
Machine Dimension	3090x1780x1350mm
Package Dimension (LxWxH)	3100x2200x1500mm
Weight	1200kg

2. Application:

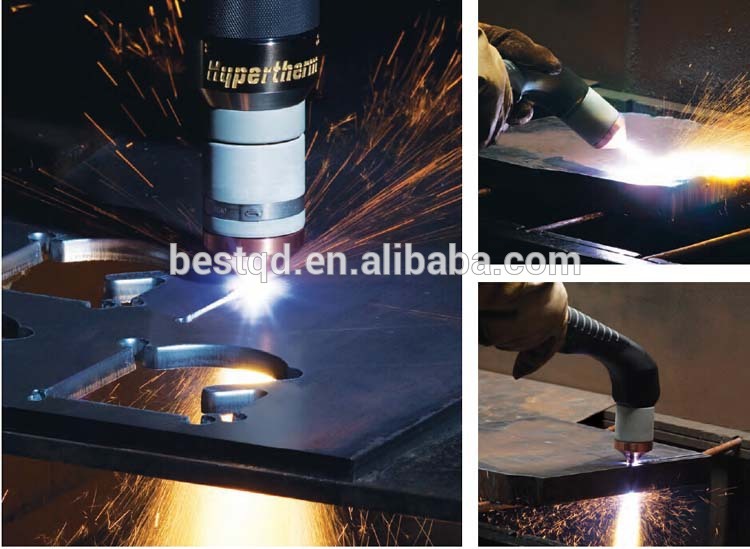

To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel, titanium sheet. stainless steel, iron etc.

3. Technical Feature:

1) The bed lathe is welded with thick wall cast steel tube, and it is quenched before welding so to eliminate innerstress, so the work tabe is quite strong, stable and durable, nondeformable, and high rigidity.

2) Gantry style structure, Y axis equipped with double stepper driven motors, more powerful.

3)X Y Z axis are equipped with Hiwin square linear guideway made in Taiwan.

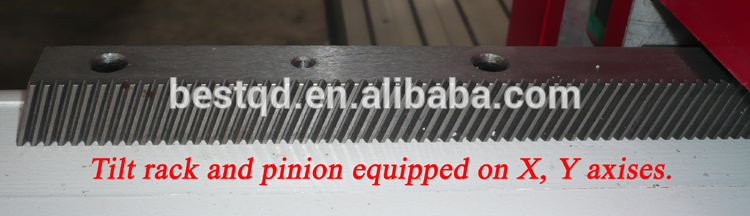

4) X, Y axis tilt rack and pinion, gear drive. The tilt rack and pinion is higher accuracy and smaller noise than the stright type. Z axis is driven by cylinder.

5. Well softwares compatibility, such as Type3 / Artcam / Castmate / Ucancam V9 etc CAD/CAM software are all compatible.

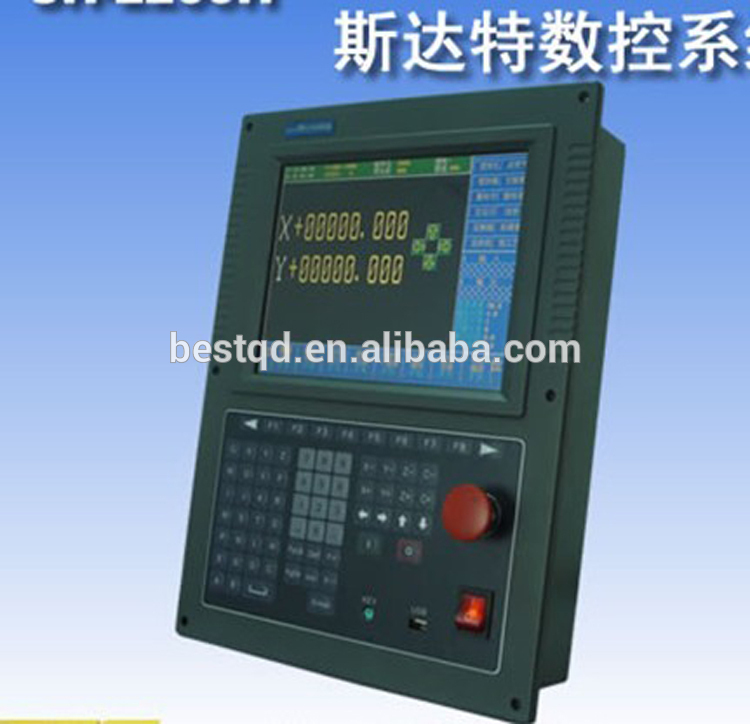

6. Legal version Start CNC control system with Automatic capacitance-height controller and automatic arc-height controller.

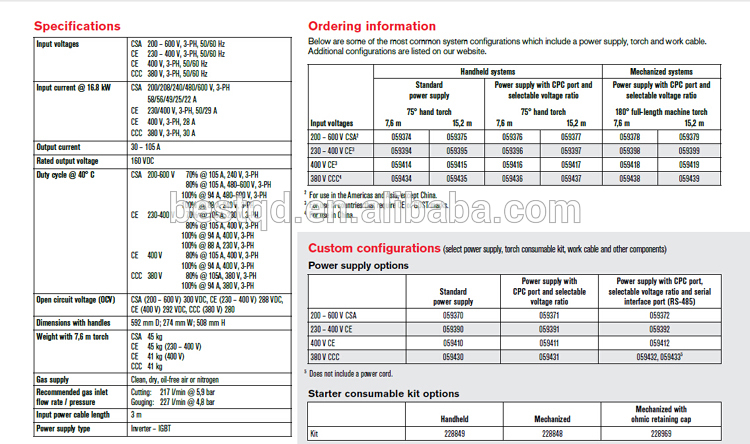

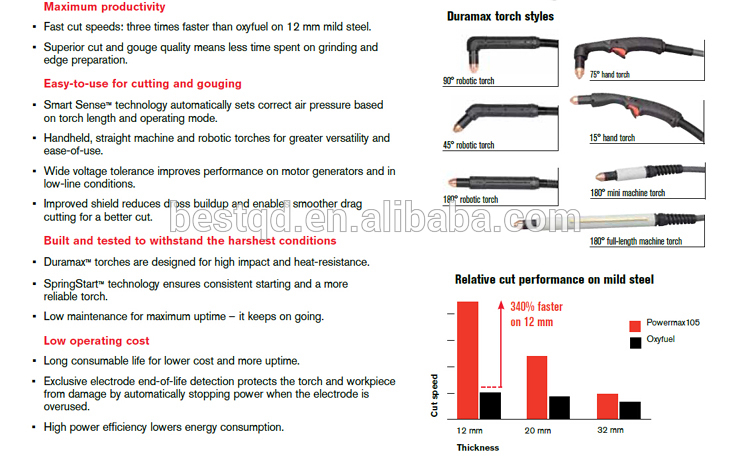

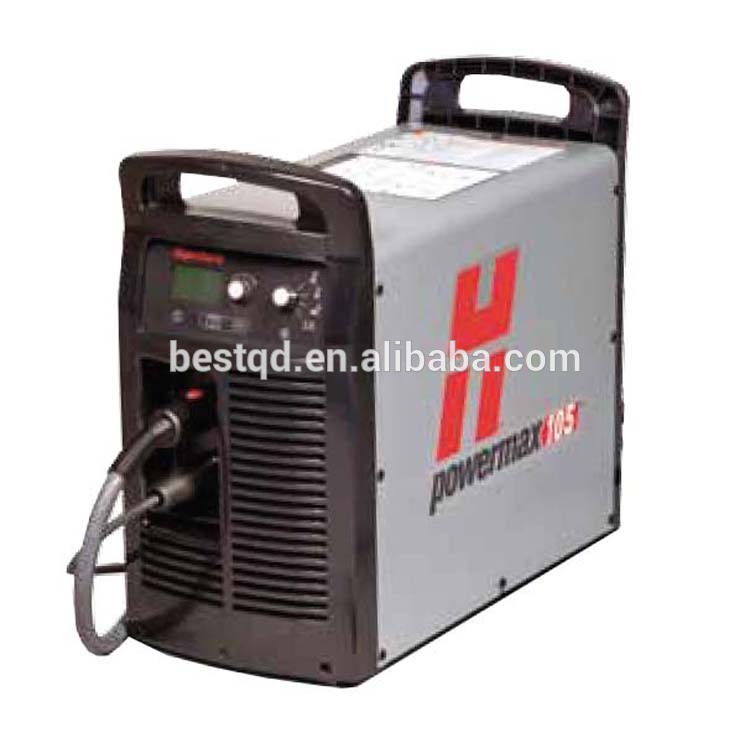

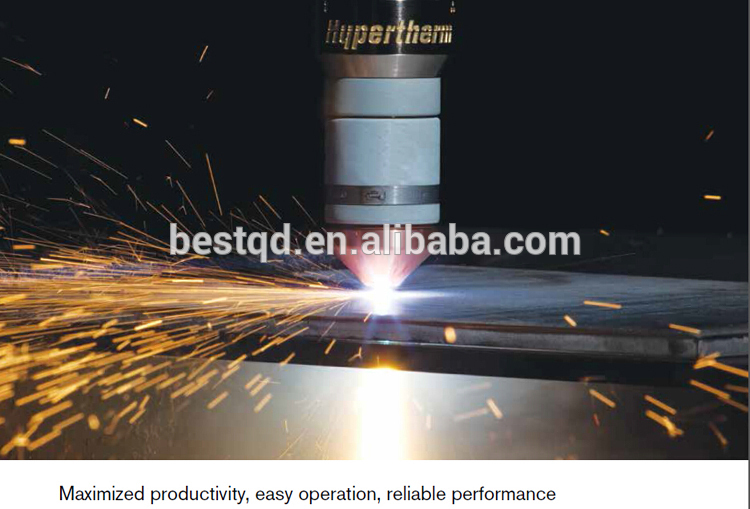

7. Equipped with Hypertherm Powermax105 plasma generator made in USA. (The detailed technical specification of Powermax105 plasma generator, please refer to the appendix.)
