- Processing Type:
- Other
- Condition:
- New
- Product Type:
- Plastic Sheet
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-2200DP-S
- Voltage:
- AC380V+/-10% (special voltage can be customized)
- Power(W):
- less than 5.5kw
- Dimension(L*W*H):
- 3300*1420*1750mm,8.20CBM
- Weight:
- 2500kgs
- Certification:
- CE, ISO
- Warranty:
- 2 years dating from buyer receiving the machine
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Name:
- Adjustable angle acrylic edge horizontal long axis polishing machine
- Model No.:
- BT-2200DP-S
- Max. polish area (Length*Thickness):
- 2200*120mm
- Polish angle:
- 0-60 degree adjustable
- Spindle rotating speed:
- 6000-9000rpm adjustable
- Cutting speed:
- 0-1000mm/min
- Air compressed required:
- More than 0.60Mpa
- Cutting depth per time:
- 0-1mm adjustable
- Cutting mode:
- spindle feeding
- Dust Collector Joint Size:
- 100mm
Packaging & Delivery
- Packaging Details
- PLC automatic unlimited polishing acrylic diamond edge flame bending machine
Description
Advantage

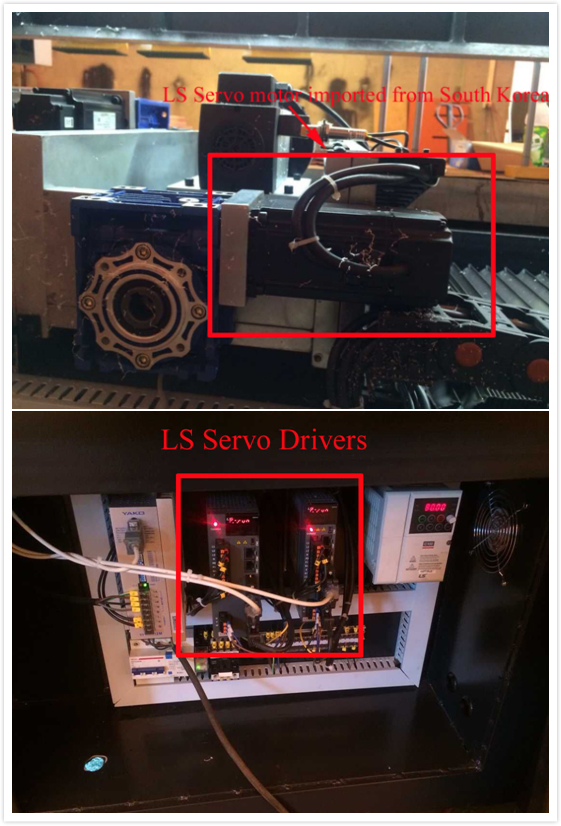

It is equipped with LS brand Servo System and LS PLC control system with color LED touch screen imported from South Korea, all orders can be fulfilled on the touch-screen automatically, including angle adjustment in range of 0-60 degree automatically. So working efficiency is much higher and setting is more accurate.
Click here to watch working video
The specification of BT-2200DP-S
Item No.
BT-2200DP-S
Working Are (Work piece Length * Thickness)
2200*120mm (since the 2 ends of worktable are open, material length is no limitation.)
Working Width
No limitation
Complete Machine Power
≤5.5KW
Spindle Rotating Speed
6000-9000RPM adjustable
Cutting Speed
0-1000mm/min adjustable
Cutting Mode
Spindle feeding
Polish Angle
0-60°adjustable
Cutting Depth
0-1mm (adjustable)
Power Supply
AC380V+/-10%, 50/60Hz, 3 phase 4 lines
Dust Extractor Mouth Diameter
100mm
Compressor Air
≥0.60Mpa
Package Dimension (L*W*H)
3400*1420*1750mm,8.45CBM
Machine N.W.
2400kg
G.W. With Package
2500kg

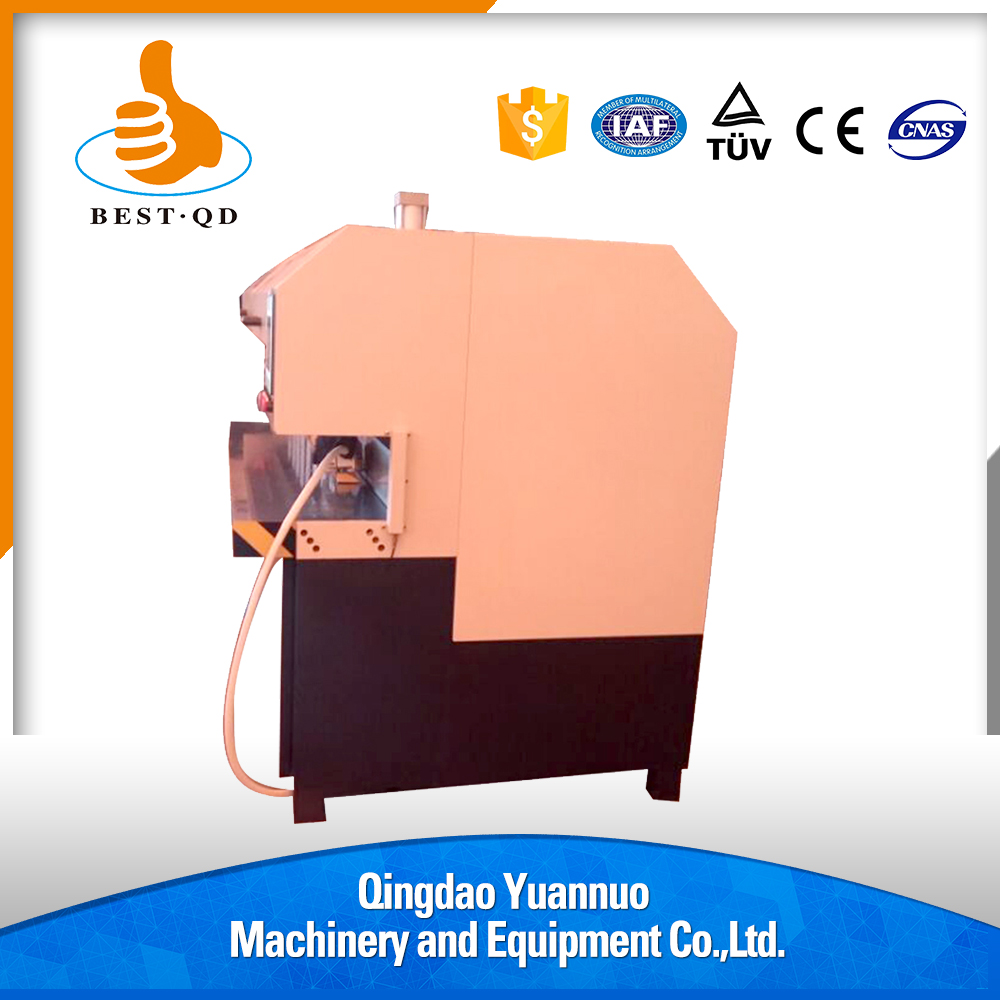

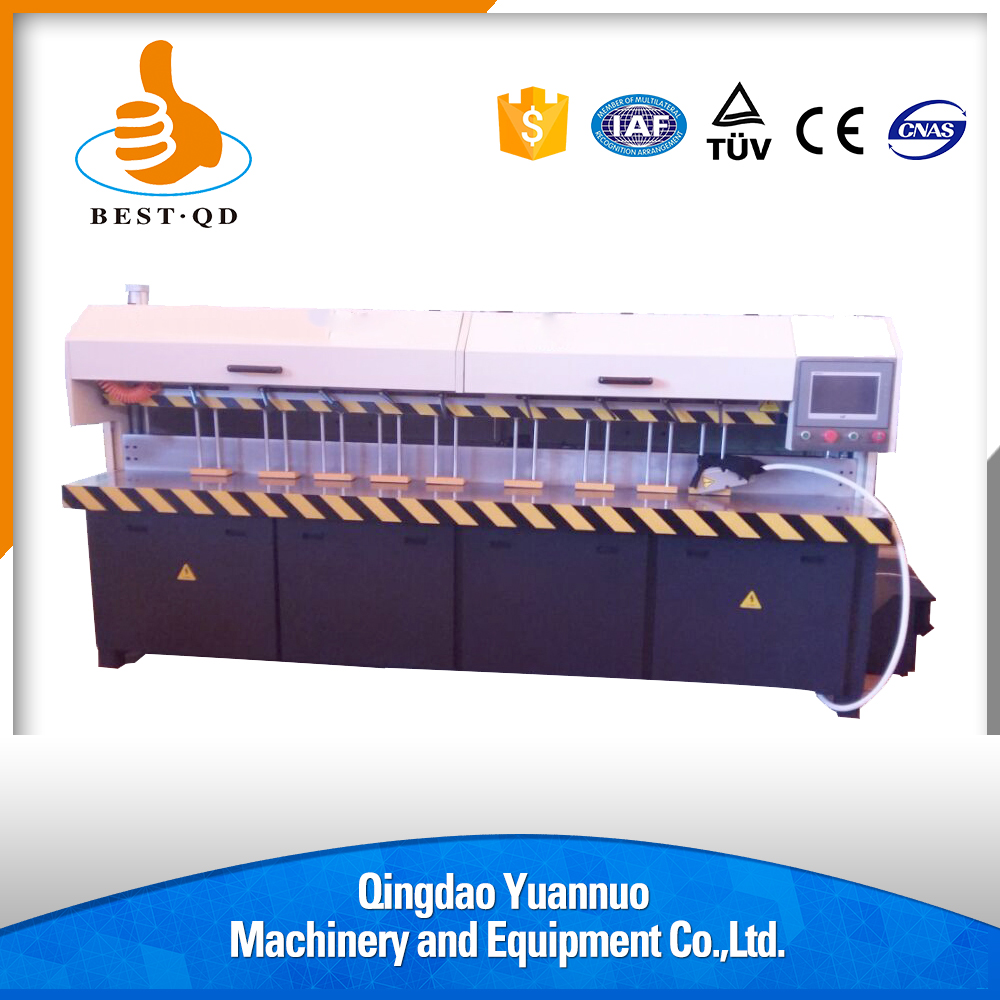

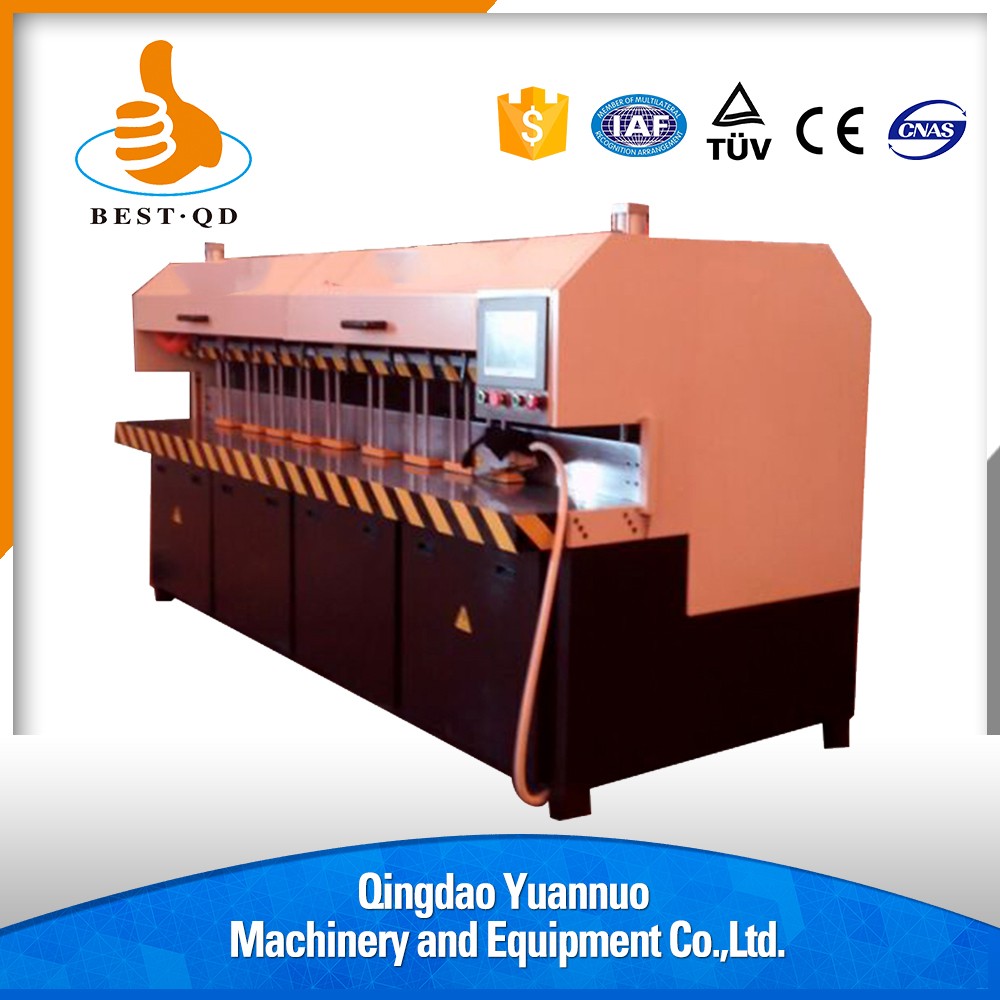

Product show
Features

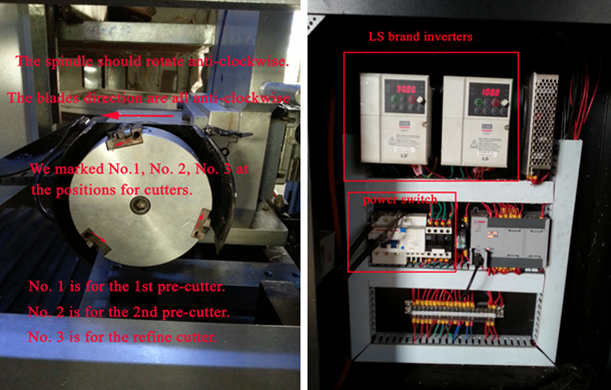

1.We have Cutters Adjustment Device to help you change and adjust cutters easily.
2. It is horizontal type, comparing with vertical type, its working efficiency is much higher, working precision is more accurate. Furthermore, the 2 ends of the machine are open, no length limitation.
Product details

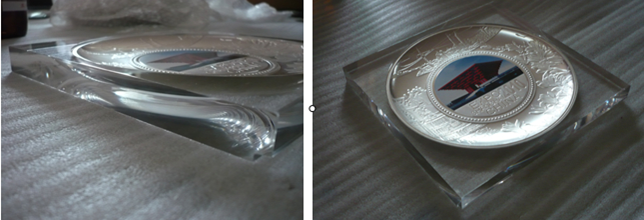

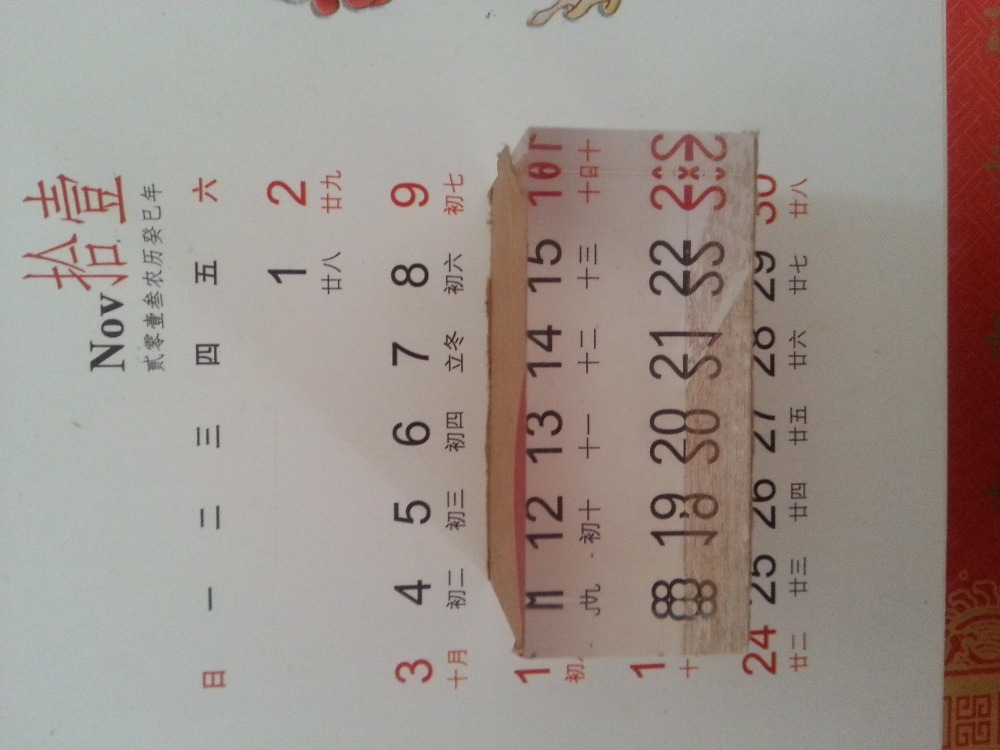

Product samples
