Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-1200BD/BT-1800BD/BT-2400BD

Machine Type:

Hot bending

Raw Material:

Flat plate

Material / Metal Processed:

Plastic

Power:

Electric and pneumatic

Automation:

Automatic

Extra Services:

Heat Treating

Certification:

CE

After-sales Service Provided:

Overseas third-party support available

Name:

Double-lines Automatic Bending Machine

Model No.:

BT-1200BD/BT-1800BD/BT-2400BD

Working size:

0-1200mm/0-1800mm/0-2400mm

Bending thickness:

10mm

Angle range bent by front bener:

45-180 degree automatically. Less than 45 degree angle bent by hand

Angle range bent by rear bender:

0-180 degree automatically

Max. distance between 2 bending line:

530mm

Min. distance between 2 bending lines:

120mm

Heating element q'ty:

2pcs

Power Supply:

AC220V single or AC380V 3 phase

Packaging & Delivery

Packaging Details

Export standard free-fumigation wooden case

Delivery Time

5 days after deposit is received

Best Selling Products geomembrane PVC bending machine  for acrylic

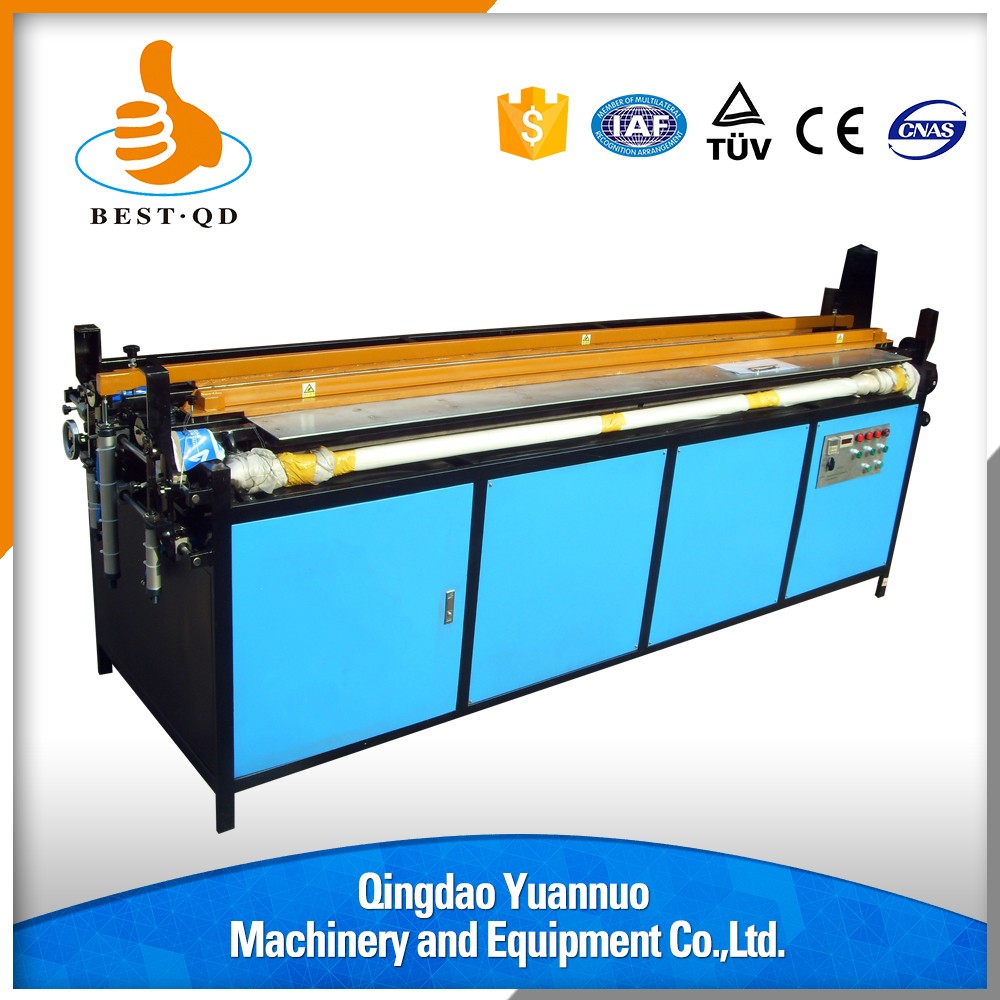

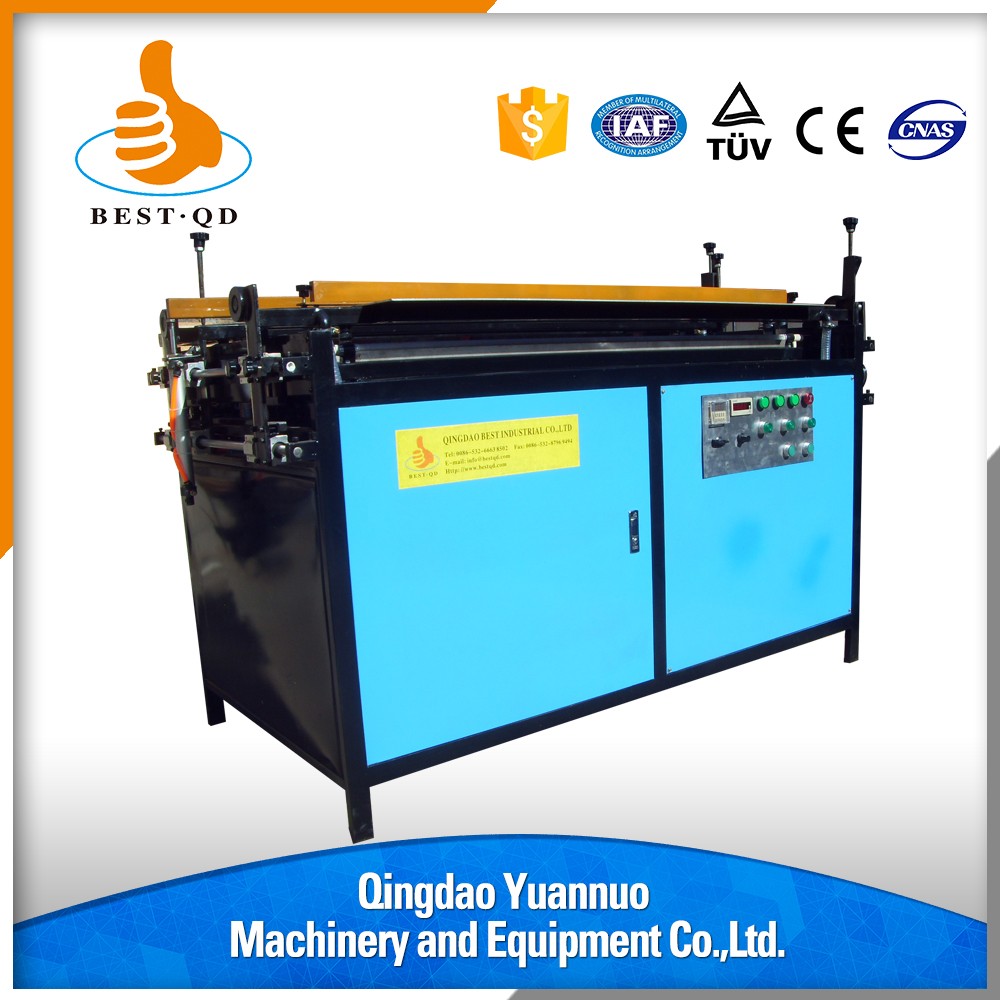

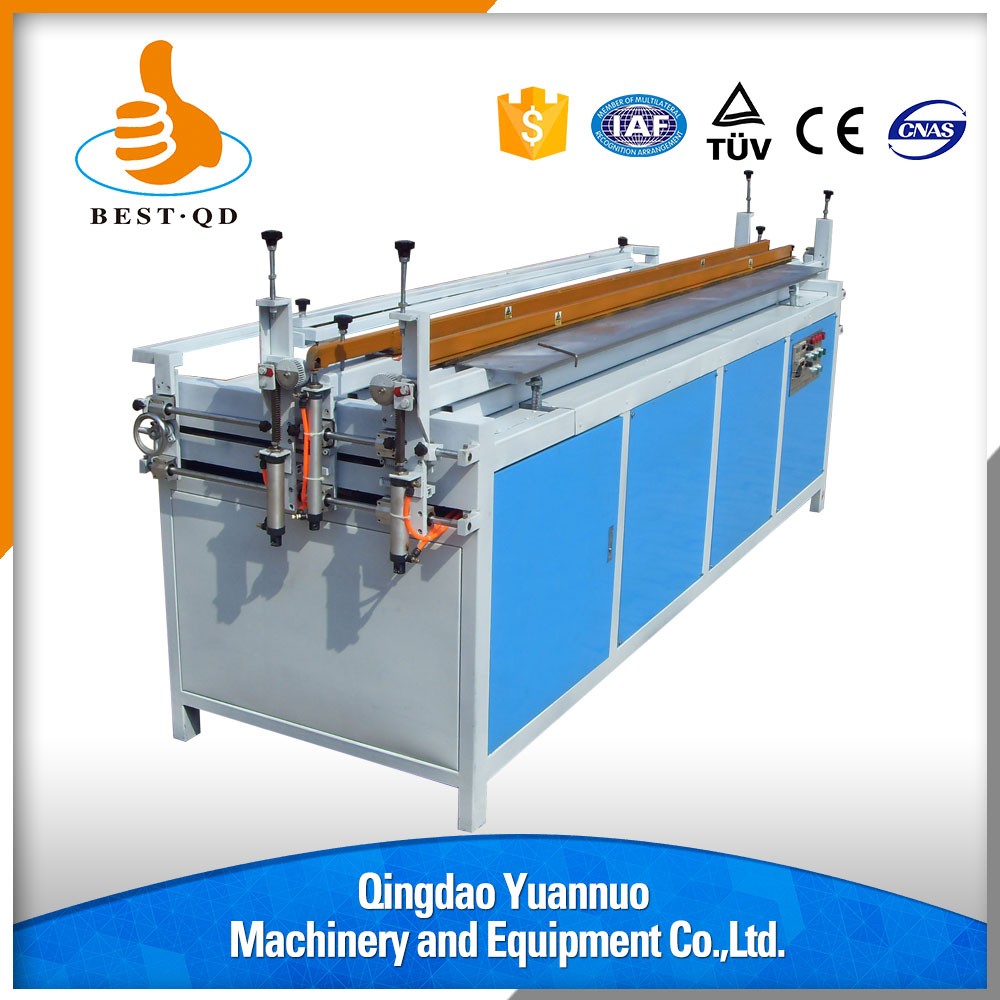

Picture show:

Specification

Application:

It can bend acrylic (organic, PMMA, plexiglass), plastic, PC, PVC, PETG, PP, ABS etc. The rear angle can be bent from 0 degree to 180 degree automatically. The front angle can be bent from 45 degree to 180 degree automatically. It is a necessary equipment for AD sign products making industry. Proper for sample making and mass production.

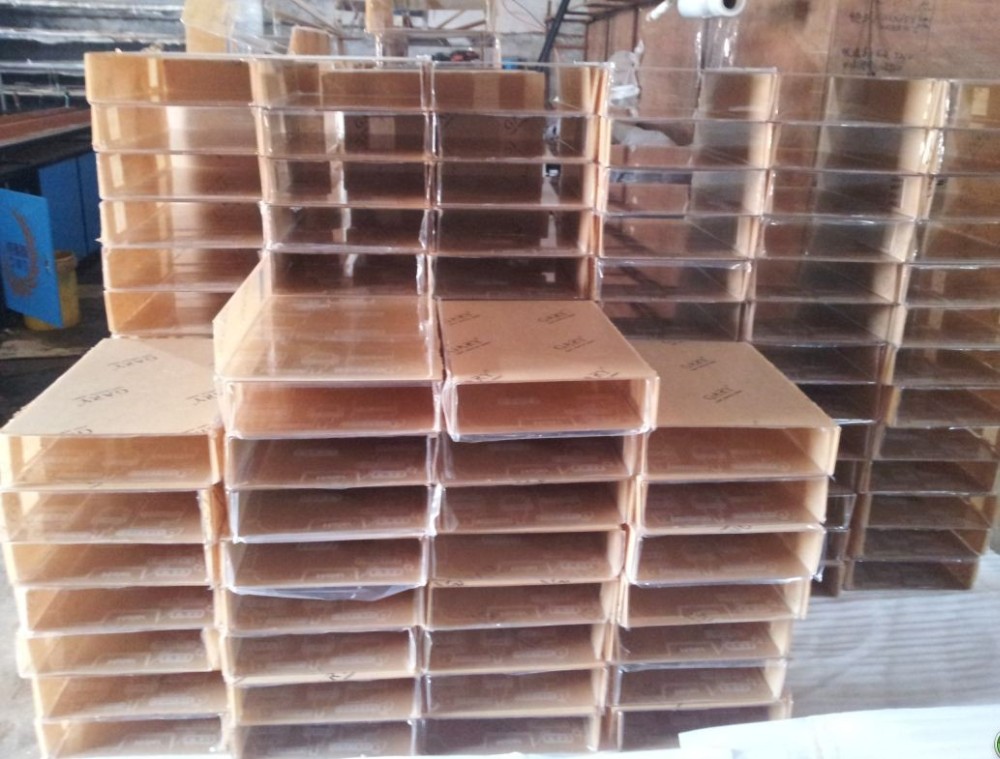

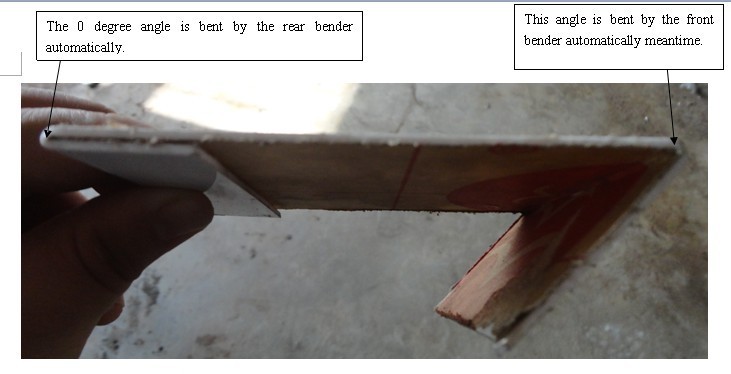

Samples:

Feature:

1. Comparing with single line bending machine, this model has 2 heating lines so that it can bend and form 2 angles meantime, therefore double working efficiency.

2. Besides all of function of the single line bending machine, one of its advantages is the rear bender can form 0 degree angle automatically with high accuracy, so to save working time and labor cost than form it by hand.

3. It is equipped with screw rods to adjust angle as well as angle meters, both of the angle are adjustable as demand.

4. The heating gap is adjustable through the hand wheel, generally speaking it should be 3-4 times of the acrylic thickness. Take 3mm thick acrylic sheet for example, the heating gas should be set as 9-12mm width.

5. The distance between the front bender and the rear bender ( means the distance between the 2 angles) are adjustable as requirement. Max. distance is 530mm. Min distance is 120mm.

6. If you don’t need to form 2 angles meantime, please turn on the “single line bending” switch, then the rear bender will stop working.

7. Perfect water circulation cooling system including water pump, water pipe and water tank. Furthermore a temperature sensor is built in the machine, when water’s temperature in pipe is over 50℃, the machine will alarm automatically.

8. The machine is equipped with back ruler, it is mainly used to locate acrylic sheet, especially in mass production you don’t need to set every sheet’s position one by one, so to improve working efficiency, also keep the high uniformity in mass production. It’s adjustable forward and backward according to requirement. When you don’t need it, you can disassemble it.

Warranty:

1. 2 years dating from you receiving the machine. More than 1 year longer than other suppliers warranty period.

2. During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.

So it is more safeguard for you to purchase from us than from others.
