Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-PH500

Usage:

Hydrogen

Production Rate:

500ml/min

Voltage:

AC220V+/-10%

Power(W):

180W

Weight:

12kg

Dimension(L*W*H):

370*180*360mm

Certification:

CE

Warranty:

12 months dating from you receiving the machine

After-sales Service Provided:

Overseas third-party support available

Model:

BT-PH500

Hydrogen Purity:

99.999%

Hydrogen output:

500ml/min

Power Supply:

AC220V+/-10%

Rated Frequency:

50Hz +/-5%

Pressure Output:

0.4Mpa

Surrounding Temperature Required:

0-40 degree centigrade

Moisture Required:

<85%

Main Consumable Material:

Water

Other Material:

KOH chemical powder

Packaging & Delivery

Packaging Details

Delivery Time

Shipped in 5 days after payment

Chemical industrial hydrogen generator production

Description of BT-PH 500 hydroden oxyden generator

Summary: 1. Adopt latest technology, meet demand of any models of gas chromatograph. 2. The electrolysis tank adopts transition metal catalysis, purity of hydrogen is up to 99.999%. 3. Adopt high sensitivity fuzzy control system and self-tracking system, pressure precision is controlled within 0.001Mpa. 4. It is certificated by National standard gas testing center , and of National Quality Supervision and Inspection Center for analyse instrument. 5. International quality grade level, best assistant of gas chromatograph.            <<<<PLS CONTACT US

Technical Specification

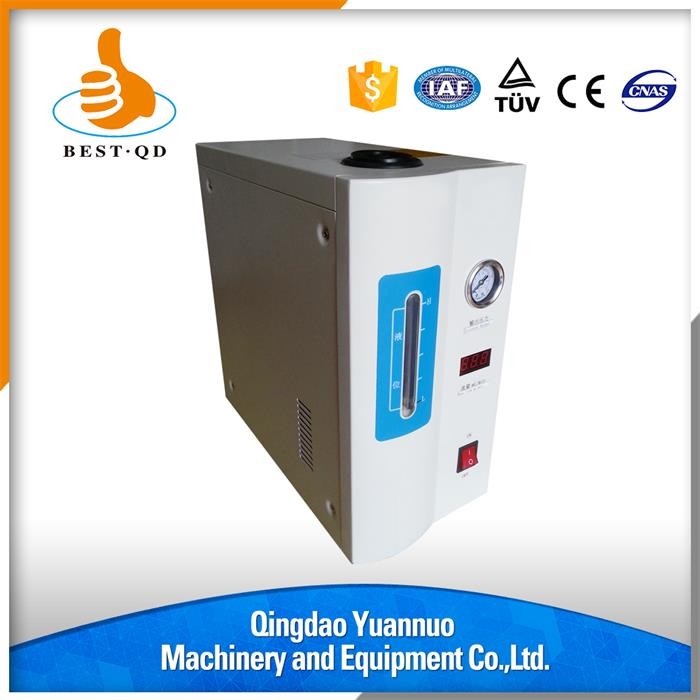

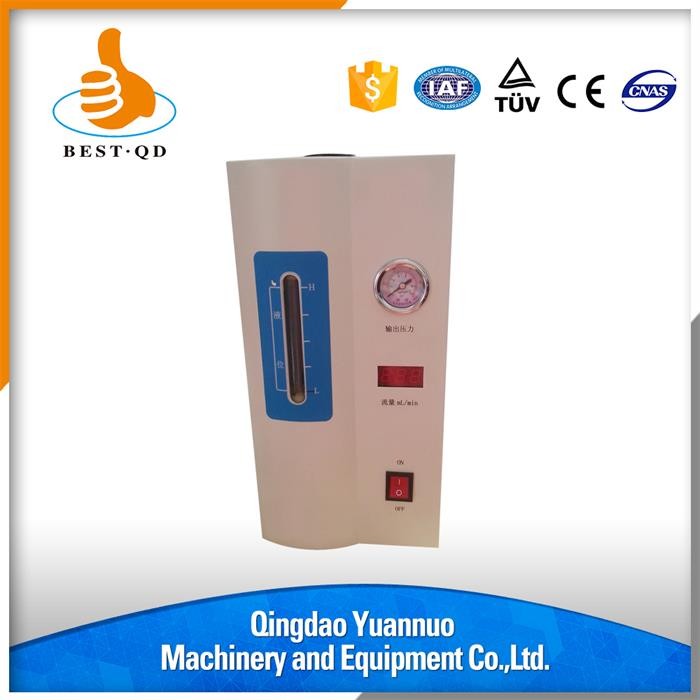

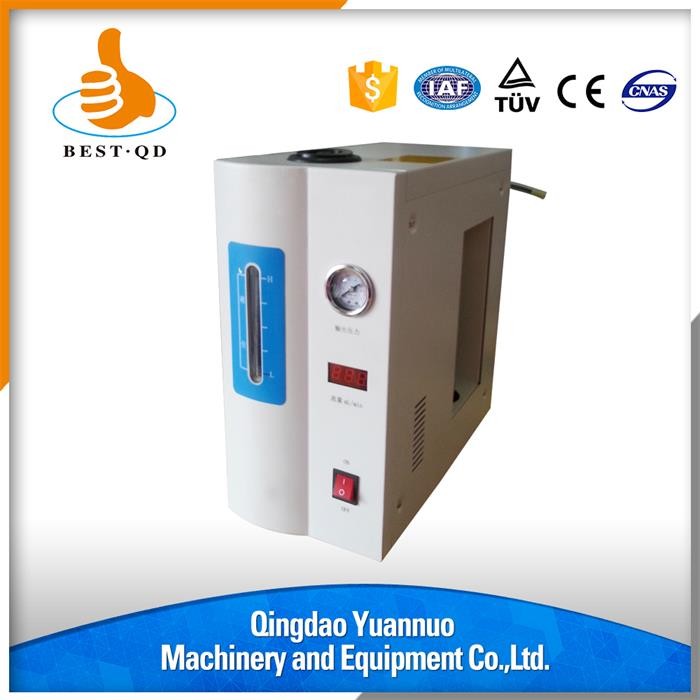

Product show

Working Principle

• It electrolysis water to generate hydrogen.
• Solution is mixture of water and KOH chemical powder.
• Take noble metal as electrode.
• Take latest membrane separation technique to separate hydrogen and oxygen completely.
• Adopt transition metal catalysis technology in electrolysis tank, hydrogen purity high, oxygen content is less than 3PPM.
• The equipment adopts high sensitivity fuzzy control system and self-tracking system, cancel pressure maintaining valve, realize constant voltage and constant current (CVCC) automatically.
• Pressure precision is within 0.001Mpa. According to gas chromatograph requirement, the gas output can be adjusted in range of 0-1000ml/min. When user stop using hydrogen and power off the machine, it stop gas generating, so no pressure exceed occurs, absolutely safe.

Technical Feature

• Programmed Control: All process is controlled by program. Automatic pressure and flow indicate, automatic constant voltage and constant current (CVCC), hydrogen output flow can be adjusted in range of 0-1000ml/min according to exact demand.
• Low hydrogen production humidity: advanced membrane separation technique and effective desiccant device, make original humidity lower. Furthermore, the two stages adsorption technique to make hydrogen humidity up to dew-point temperature -56 degree centigrade.
• Easy operation: No need steel cylinder. When you need hydrogen, just need to turn on the switch of the machine. You can use it, also can use it intermittently. It is equipped with safe device, sensitive and reliable.

Application

• Assistant of gas chromatograph.
• Extract and purify high purity metal.
• Weld metal.

Our service

• 12 months dating from buyer receiving the machine.
• During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost to replace.
• When warranty period is expired, if some part is broken or damaged, you can buy new from our company.

Payment terms

• We accept payment by T/Tto our company bank account, or by western union, or through alibaba trade assurance.
