professional factory for Methane Gas Engine Generator - Small Size But Unlimited Working Length Acrylic Diamond Edge Polishing Machine – YUANNUO MACHINERY

Condition:

New

CNC or Not:

Normal

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST or OEM

Model Number:

BT-1500DP

Voltage:

AC220V+/-10 or AC380V+/-10%

Power(W):

Gross power 5.5kW, actual working power 1.5kW

Dimension(L*W*H):

129x73x112cm

Weight:

480kg

Certification:

CE

Warranty:

2 years dating from you receiving the machine

After-sales Service Provided:

Engineers available to service machinery overseas

Name:

Polishing Machine

Model No.:

BT-1500DP

Power Supply:

AC220V+/-10% or AC380V+/-10%

Spindle Rotating Speed:

2000-20000rpm

Cutting Speed:

0-1,000mm/min (600mm/min is the best status)

Working Length:

Unlimited

Maximum Working Thickness:

80mm

Spindle Ending Beat:

less than 0.01mm

Workbench Beeling Error:

less than 0.5mm

Certificate:

CE

Packaging & Delivery

Packaging Details

Delivery Time

3 days after receiving deposit

Dear Sir or Madam,
Thank you for your interest in the BT-1500DP High Efficiency Diamond Edge Polishing Machine. Let’s introduce it to you as below:

1. Specification:

2. Application:

The machine is mainly used to polish plexiglass, acrylic, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting tools to material finely and get mirror finish cutting surface. After polished, the cutting surface roughness RA ≤20nm, tansparency ≥92%, no discoloring, especially perfect as light guide plate. It is the necessary machine to produce acrylic crafts, exhibition showcase, display shelf, LGP (Light Guide Plates) etc.
3. Advantage:

Comparing with bench polisher and flame polisher, its advantage is higher efficiency but lower labor cost, lower wastage. The most important is the perfect mirror-like polishing finish it achieved.

Additionally, since it applies endless guideway, its working size is unlimited, so it is the poishing machine with the highest working efficiency.

4. Machine details:

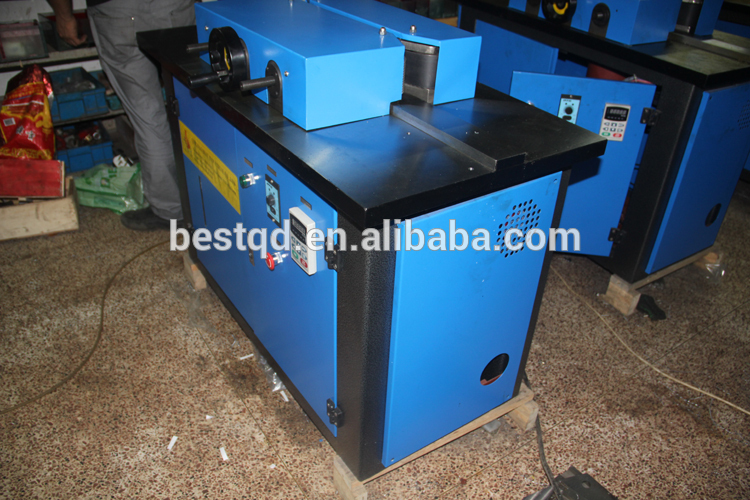

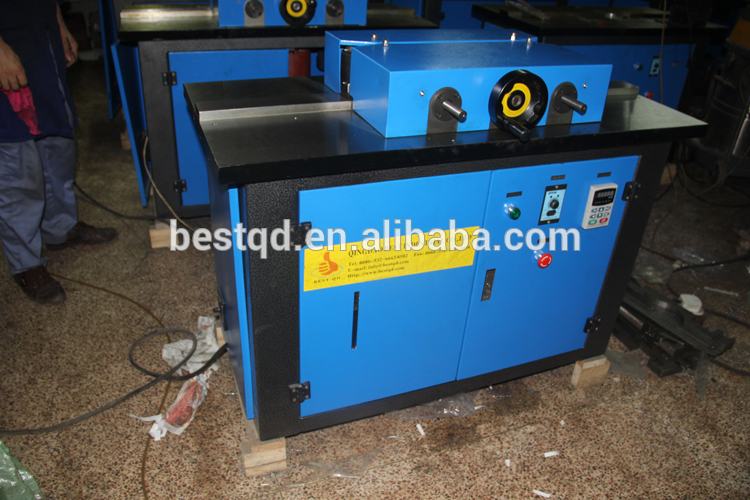

 1) Ready machines in warehouse:

2) Optional accessory: Extension worktable as below, throught it the machine can polish unlimited long material:

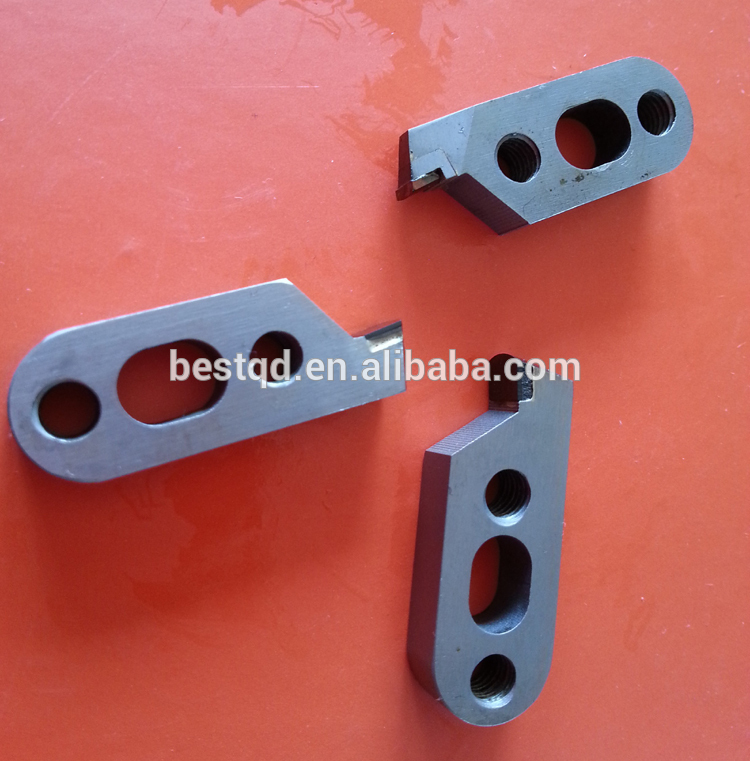

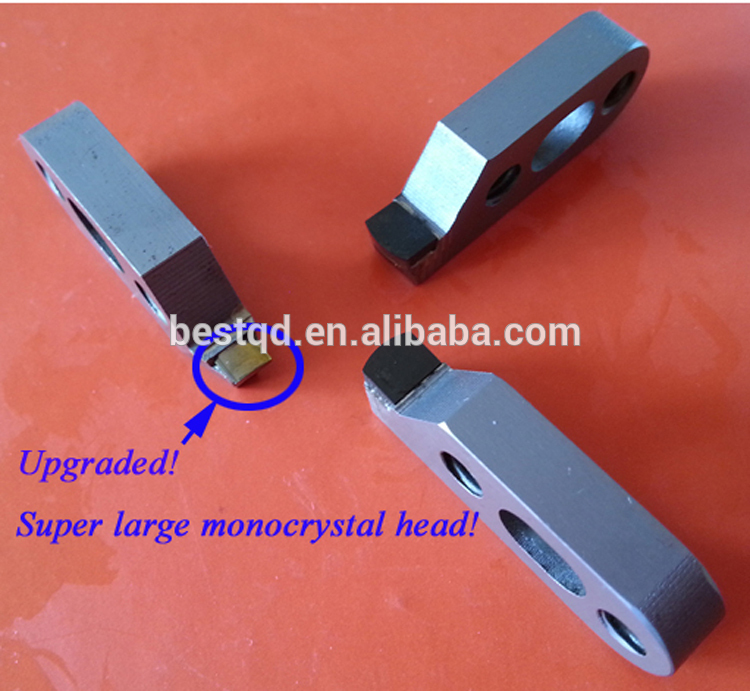

3) Diamond Cutters:

4) Dust Collector equipped on the machine:

5. Samples polished by the machine:
