Roll printing bearing rotary marking machine

Condition:

New

Place of Origin:

Shandong, China (Mainland)

Brand Name:

BEST

Model Number:

BT-RRM01

Rated Power:

400W

Engraving Speed:

6-30pcs/minutes

Main Axle Rotational Speed:

N/M

Feeding Height:

adjustable

Milling Cutter Diameter:

By dies

Application:

Metal marking, Marking on cylinder shaped round edge

Dimensions:

1050x800x950mm

Weight:

480kg

Certification:

CE, ISO

Warranty:

2 years dating from buyer receiving the machine, 2 years dating buyer receiving the machine

After-sales Service Provided:

Overseas third-party support available

Machine name:

Rotary Rolling Marking Machine

Control mode:

Hydraulic

Workpiece diameter range:

10-60mm

Marking contents:

trademark, Chinese characters, English letters and symbol

Marking size:

1-10mm

Marking depth:

0.1-0.5mm

Working voltage:

3 phase AC380V or 1 phase AC220V +/-10%

Capacity:

6-30pcs/minutes according to workpiece exact size

Packaging & Delivery

Packaging Details

Delivery Time

40 days dating from receiving deposit

Roll printing bearing rotary marking machine

1. Letter and character size it can mark is 1-10mm (W), 1-10mm (H); 2. It can mark on various shapes round surface workpieces by different dies; 3. Characters ranks along the circle surface. 4. Capacity: 5-10second/pc (6-12pcs/minutes) according to different workpieces size; 5. Machine dimension(L*W*H):1050(L)*800(W)*950(H)mm; 6. Weight:480KGS; 7. Time taken for changing dies: 5 minutes.                                          CLICK HERE TO WATCH DEMO VIDEO

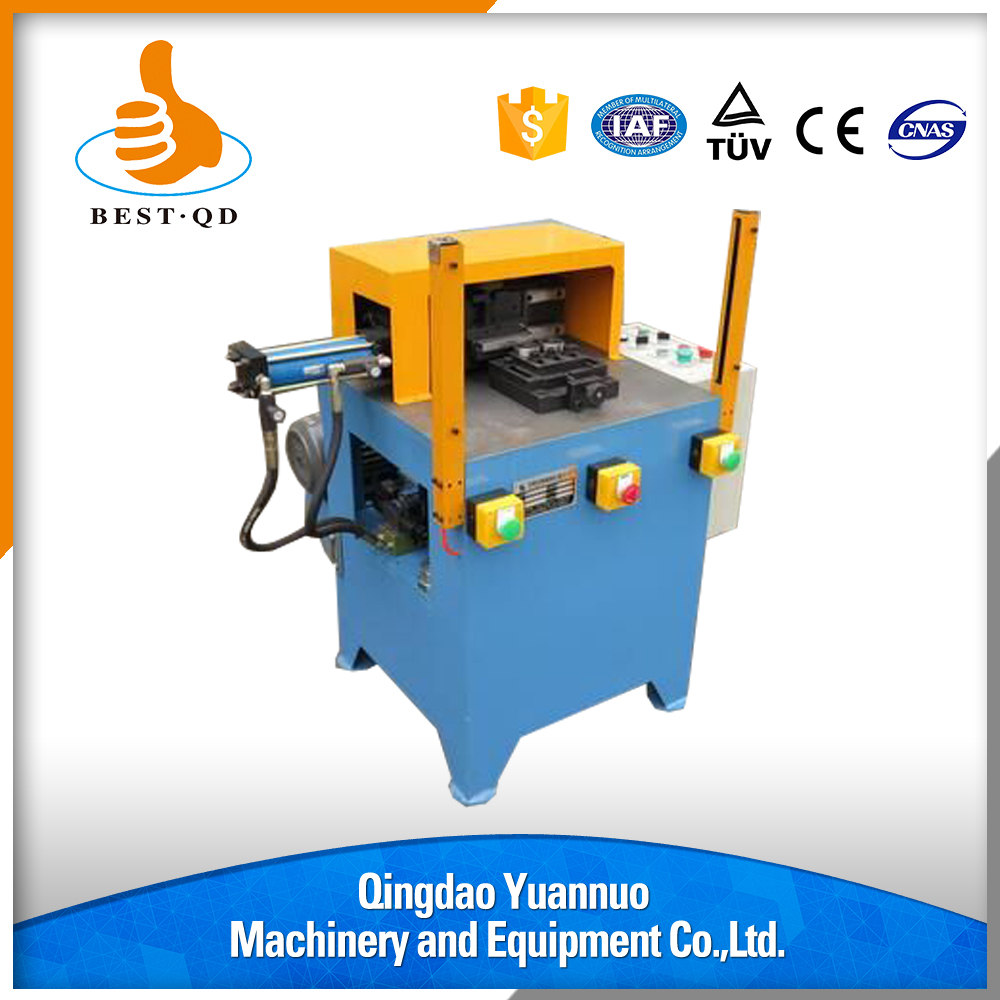

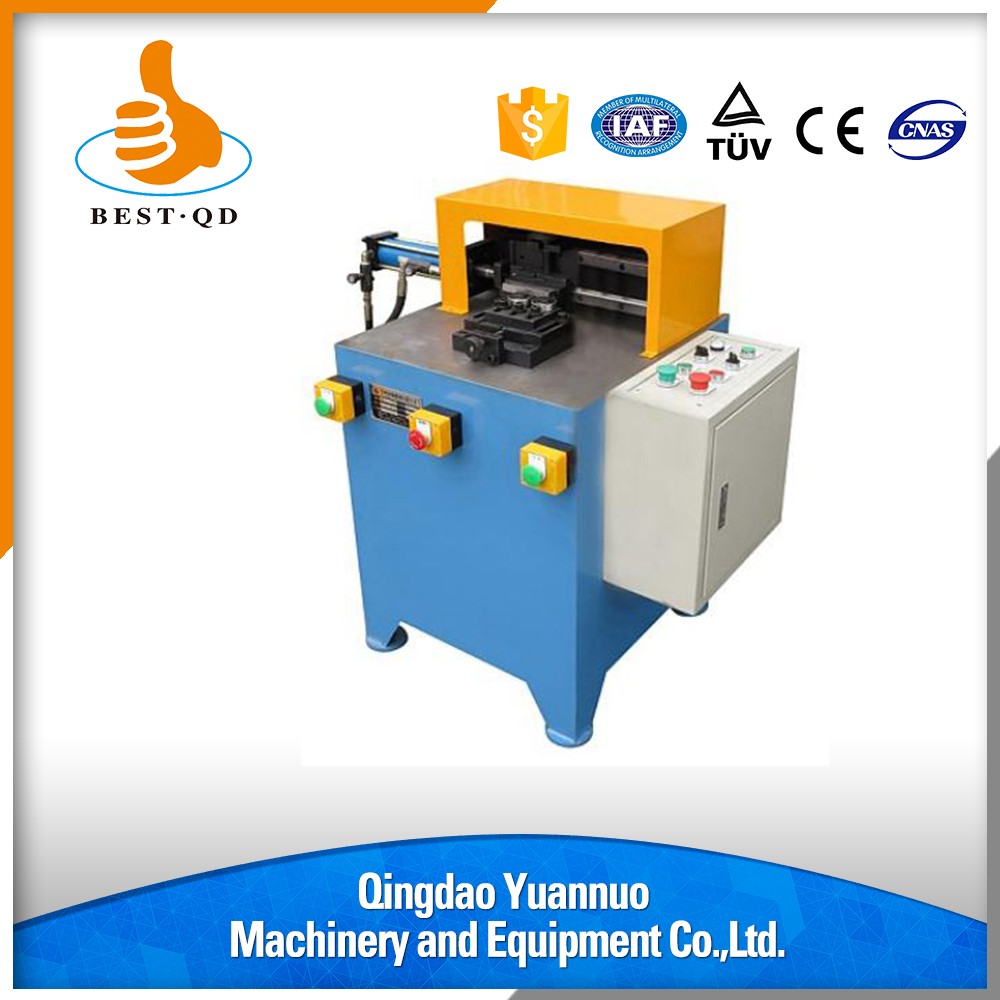

Product display

Technical features

1. Hydraulic control, stable operation.

2. Two way operating valve control, two way marking, easy operation.

3. Mainly used to mark cylindrical parts.Out diameter in range of 10-60mm (for size beyond the range, special positioning clamps have to be customized).

4. It can mark trademark, Chinese characters, Arabic numerals, English letters and symbol, tick mark etc. Supporting multiple lines marking meantime.

5. Letter and character size range it can mark is 1-10mm.

   Marking depth is 0.1-0.5mm.

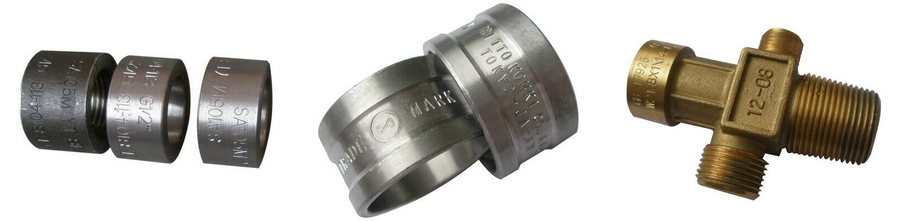

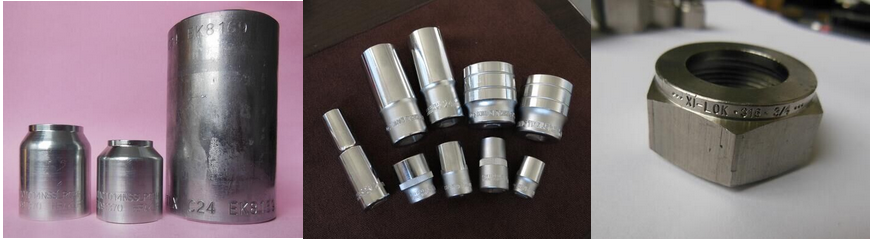

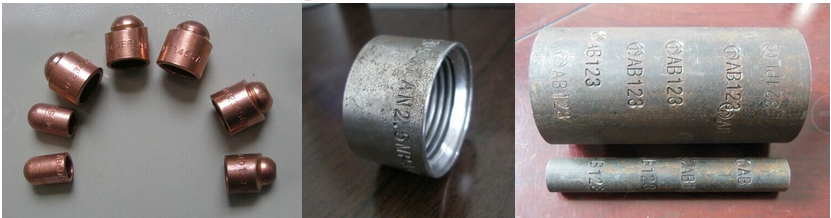

Sample display

Delivery Time

• 30 days after receiving T/T 50% deposit advanced.

Warranty and after sale service

• 2 years dating from buyer receiving the machine.
• During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.
• When warranty period is expired, if some part is broken or damaged, you can buy new from our company.
• We provide buyer with free cost technical supporting during whole lifespan of machines.

We provide you free cost technical supporting during the whole lifespan of the machines. If you have any questions to the above, please don’t hesitate to contact with us. Thank you for your kind attention!
