- Condition:
- New
- Place of Origin:
- Shandong, China (Mainland)
- Brand Name:
- BEST
- Model Number:
- BT-RRM01
- Rated Power:
- 400W
- Engraving Speed:
- 6-30pcs/minutes
- Main Axle Rotational Speed:
- N/M
- Feeding Height:
- adjustable
- Milling Cutter Diameter:
- By dies
- Application:
- Metal marking, Marking on cylinder shaped round edge
- Dimensions:
- 1050x800x950mm
- Weight:
- 480kg
- Certification:
- CE, ISO
- Warranty:
- 2 years dating from buyer receiving the machine, 2 years dating buyer receiving the machine
- After-sales Service Provided:
- Overseas third-party support available
- Machine name:
- Rotary Rolling Marking Machine
- Control mode:
- Hydraulic
- Workpiece diameter range:
- 10-60mm
- Marking contents:
- trademark, Chinese characters, English letters and symbol
- Marking size:
- 1-10mm
- Marking depth:
- 0.1-0.5mm
- Working voltage:
- 3 phase AC380V or 1 phase AC220V +/-10%
- Capacity:
- 6-30pcs/minutes according to workpiece exact size
Packaging & Delivery
- Packaging Details
- Delivery Time
- 40 days dating from receiving deposit
Roll printing pneumatic rotary marking machine for flange
 |
1. Letter and character size it can mark is 1-10mm (W), 1-10mm (H); 2. It can mark on various shapes round surface workpieces by different dies; 3. Characters ranks along the circle surface. 4. Capacity: 5-10second/pc (6-12pcs/minutes) according to different workpieces size; 5. Machine dimension(L*W*H):1050(L)*800(W)*950(H)mm; CLICK HERE TO WATCH DEMO VIDEO |

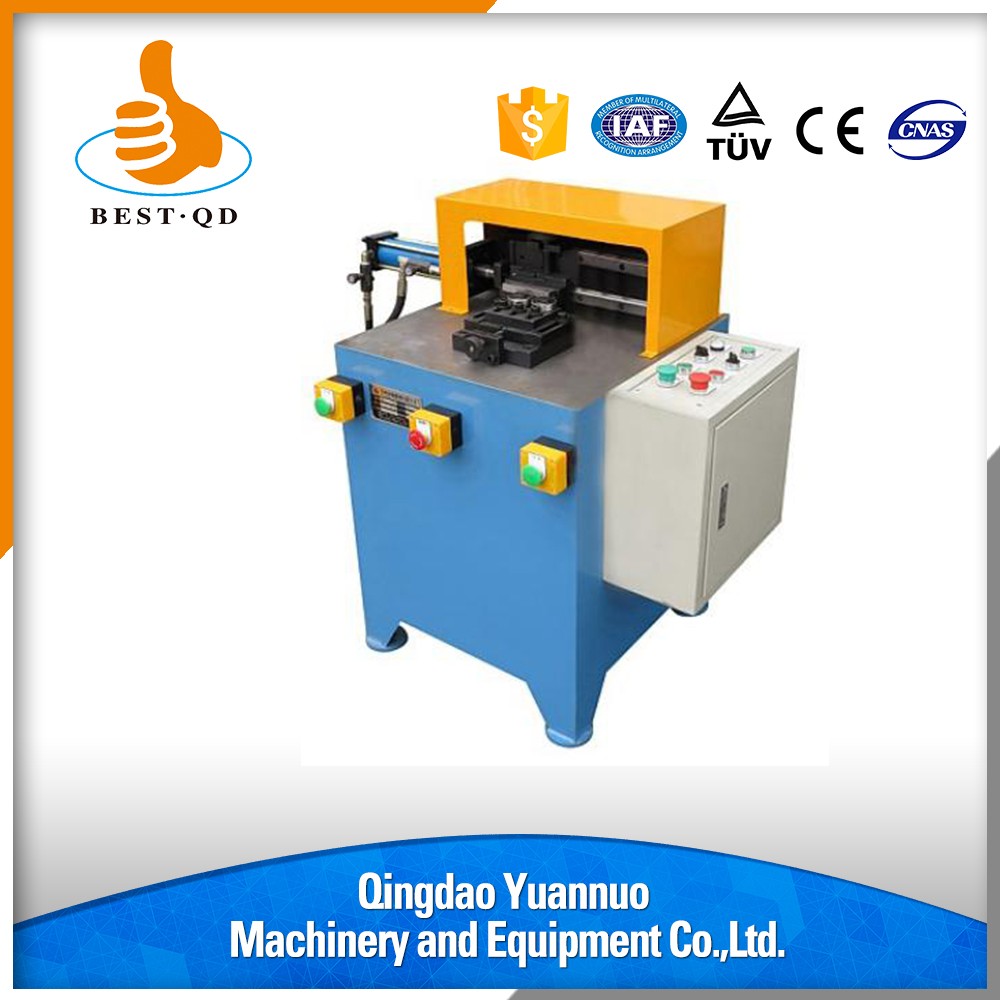

Product display
Technical features
1. Hydraulic control, stable operation.
2. Two way operating valve control, two way marking, easy operation.
3. Mainly used to mark cylindrical parts.Out diameter in range of 10-60mm (for size beyond the range, special positioning clamps have to be customized).
4. It can mark trademark, Chinese characters, Arabic numerals, English letters and symbol, tick mark etc. Supporting multiple lines marking meantime.
5. Letter and character size range it can mark is 1-10mm.
Marking depth is 0.1-0.5mm.

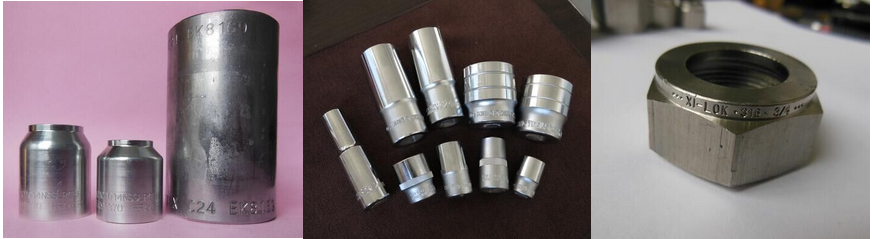

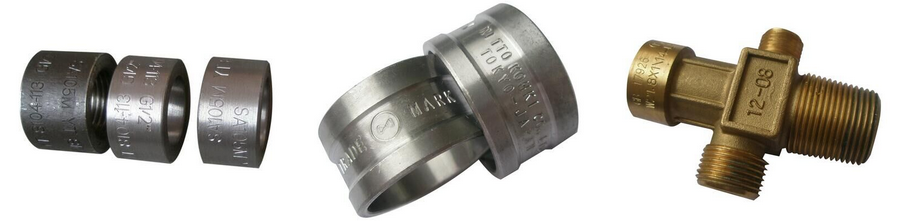

Sample display
Delivery Time
-
30 days after receiving T/T 50% deposit advanced.
Warranty and after sale service
- 2 years dating from buyer receiving the machine.
- During warranty period, if some part is broken or damaged due to manufacturing defect, we will provide new one free cost and free shipment to replace.
- When warranty period is expired, if some part is broken or damaged, you can buy new from our company.
- We provide buyer with free cost technical supporting during whole lifespan of machines.
We provide you free cost technical supporting during the whole lifespan of the machines. If you have any questions to the above, please don’t hesitate to contact with us. Thank you for your kind attention!
