Top Quality Acrylic Line Bending Machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Condition:: New

Place of Origin:: Shandong, China (Mainland)

Brand Name:: BEST

Model Number:: BT-600BP/1200BP/1800BP/2400BP

Machine Type:: Plastic Plate Bending Machine

Raw Material:: Sheet / Plate Rolling

Material / Metal Processed:: Plastic

Power:: Electric

Automation:: Manual

Extra Services:: Heat Treating

Certification:: CE, ISO14001:2004

After-sales Service Provided:: Overseas third-party support available

Model No.:: BT-600BP/1200BP/1800BP/2400BP

Bending Area (L*W):: L:600mm-2400mm, W:limitless

Maximum Bending Thickness:: 10mm

Heater Type:: Infrared Quartz Heating Tube

Number of Heating Tube:: 1pc

Gross Power:: 1-2.5kW

Power Supplied:: AC220V+/-10%/50Hz

Dimension (L*W*H):: Length:1050mm/1650mm/2250mm/2850mm, W:400mm. H:330mm

Weight:: 50kg/70kg/80kg/100kg

Cooling Mode:: Water cooling

Packaging & Delivery

Packaging Details: Export standard free fumigation wooden case

Delivery Time: 3 days after receiving payment

Top Quality Acrylic Line Bending Machine

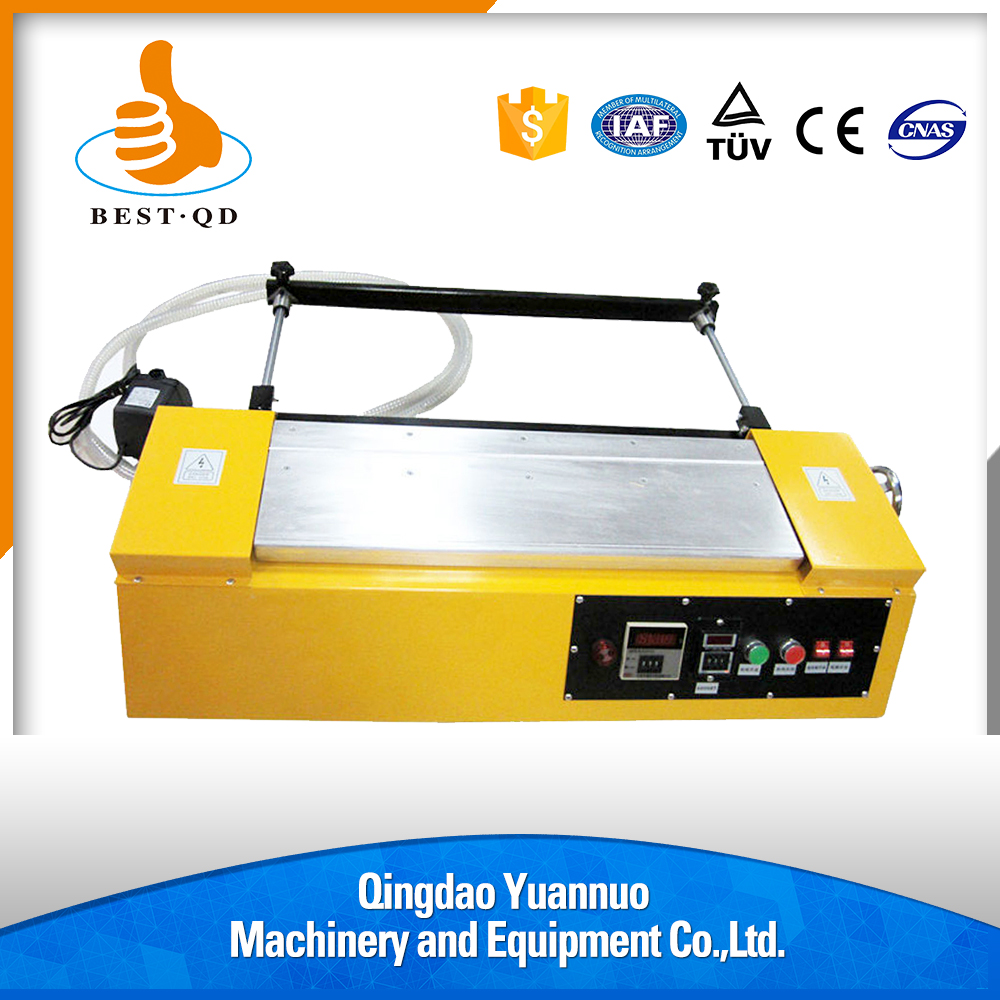

Picture show:

Specification :

Model No.	BT-600BP	BT-1200BP	BT-1800BP	BT-2400BP
Bending Length	0-600mm	0-1200mm	0-1800mm	0-2400mm
Bending Width	unlimited
Bending Thickness	0-10mm directly, thicker sheet can be bent after milling in advance
Heating Mode	Non-contact infrared heating
Bending Mode	Manually
Power Supply	AC220V+/-10% 50-60Hz
Gross Power	1kw	1.5kw	2kw	2.5kw
*Package Dimension (LWH cm)*	1050400330mm	1650400330mm	2250400330mm	2850400330mm
Gross Weight (kg)	50	70	80	100

Acrylic Machine:

1. The bending machine helps you to easily and quickly produce different V-shaped profiles.

2. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles .

3. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine.

4. It can be used to bend components of ACRYLIC, PVC, PMMA, PC, ORGANIC GLASS, RESIN etc.

5. We pay attention to details parts of the machines, therefore our products quality is steady and perfect.

Feature:

1. Digital operation, easy and convenient.

2. Both automatic and manual working status.

3. According to sheet thickness and material characteristic to set heating time, it will bend automatically when it reaches time set in advance.

4. Bending angle is adjustable from 1-179⁰.

5. Adopt special quartz heating tubes, rapid heating speed and long working life.

6. Working voltage is adjustable so to meet different material characteristic and different thickness sheet, avoid buring or destorying material.

7. Worktable and workpiece are cooled by water. When water temperature is over, it will alarm automatically.

8. With function of electrical leakage protection to make sure safe operation.

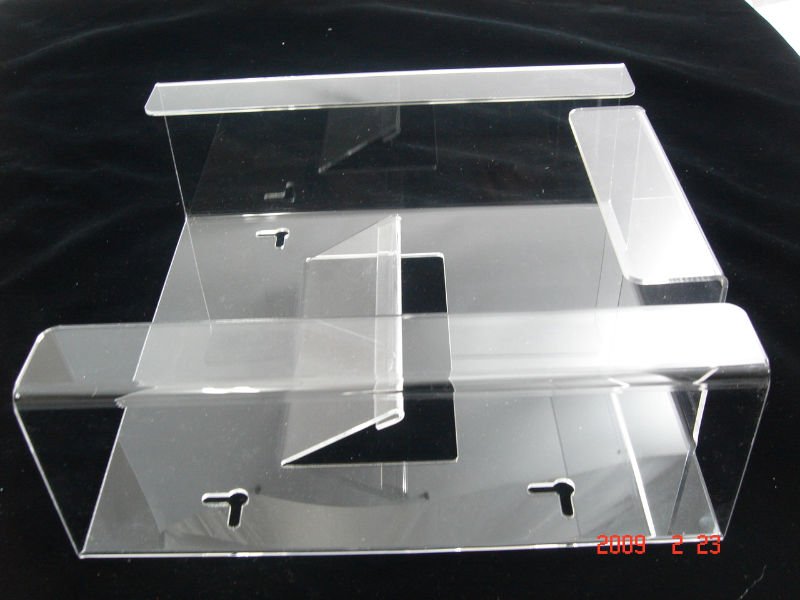

Samples display:

Remark:

1. We have working video to teach you how to use the machine.

2. If you are interested in this product and need to know more specification, please feel free to contact with us. Thank you for your kind attention! We also wish to get your comments to improve the machine. Other sizes of the machine can be ordered and made according to your special requirements.
